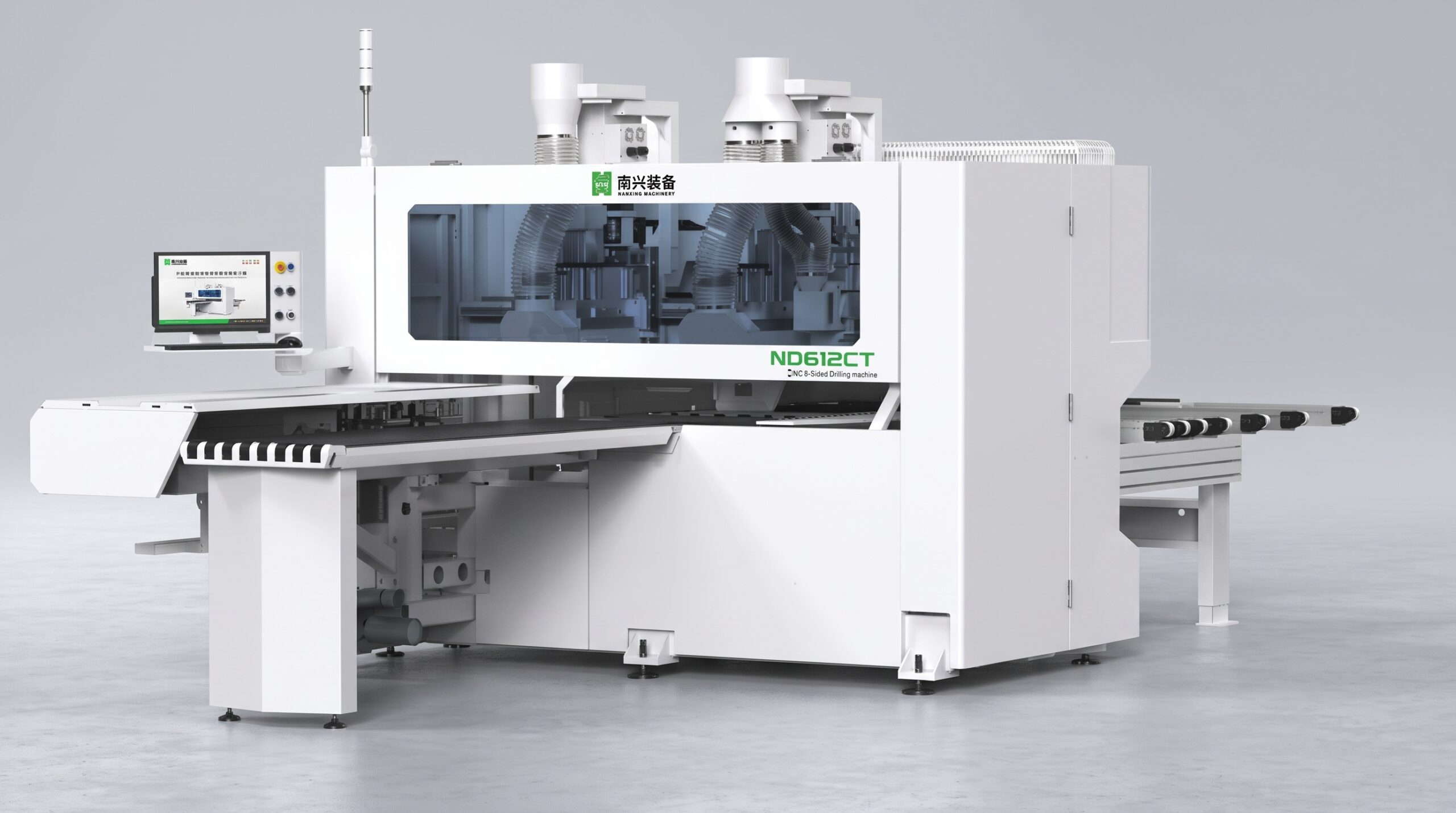

ND612CT CNC 6-Sided Drilling Machine

Highlights

The ND612CT CNC 6-Sided Drilling Machine is designed for precision drilling, grooving and milling of cabinet and furniture panels. It features an automatic tool-changing spindle with 360° C-axis rotation, enabling multi-directional side milling and complex machining of concealed furniture fittings. The standard configuration includes a cross right-angle head with four independent tools and an adjustable angle head ranging from 0° to 90° for angled cutting, Lamino slot machining and grooving. With upper and lower routing spindles and SYNTECH CNC control, the ND612CT supports flexible machining of customized furniture components.

• Panel length: 200–3000 mm

• Panel width: 30–1200 mm

• Panel thickness: 10–60 mm

• Routing size: 250–2400 × 65–1200 × 12–50 mm

• Spindle power: 5.5 kW upper / 3.5 kW lower

• Maximum spindle speed: 18,000 rpm

• Total power: 26.83 kW



Video

Features

• Automatic tool-changing spindle with 360° C-axis rotation supports multi-directional milling and grooving.

• Cross right-angle head with four independent tools enables flexible machining of concealed fitting holes and slots.

• 0°–90° adjustable angle head supports angled routing, grooving and Lamino connector slot processing.

• Upper and lower machining spindles support drilling, routing and multi-directional panel processing.

• SYNTECH CNC control coordinates machining operations for customized furniture manufacturing.
