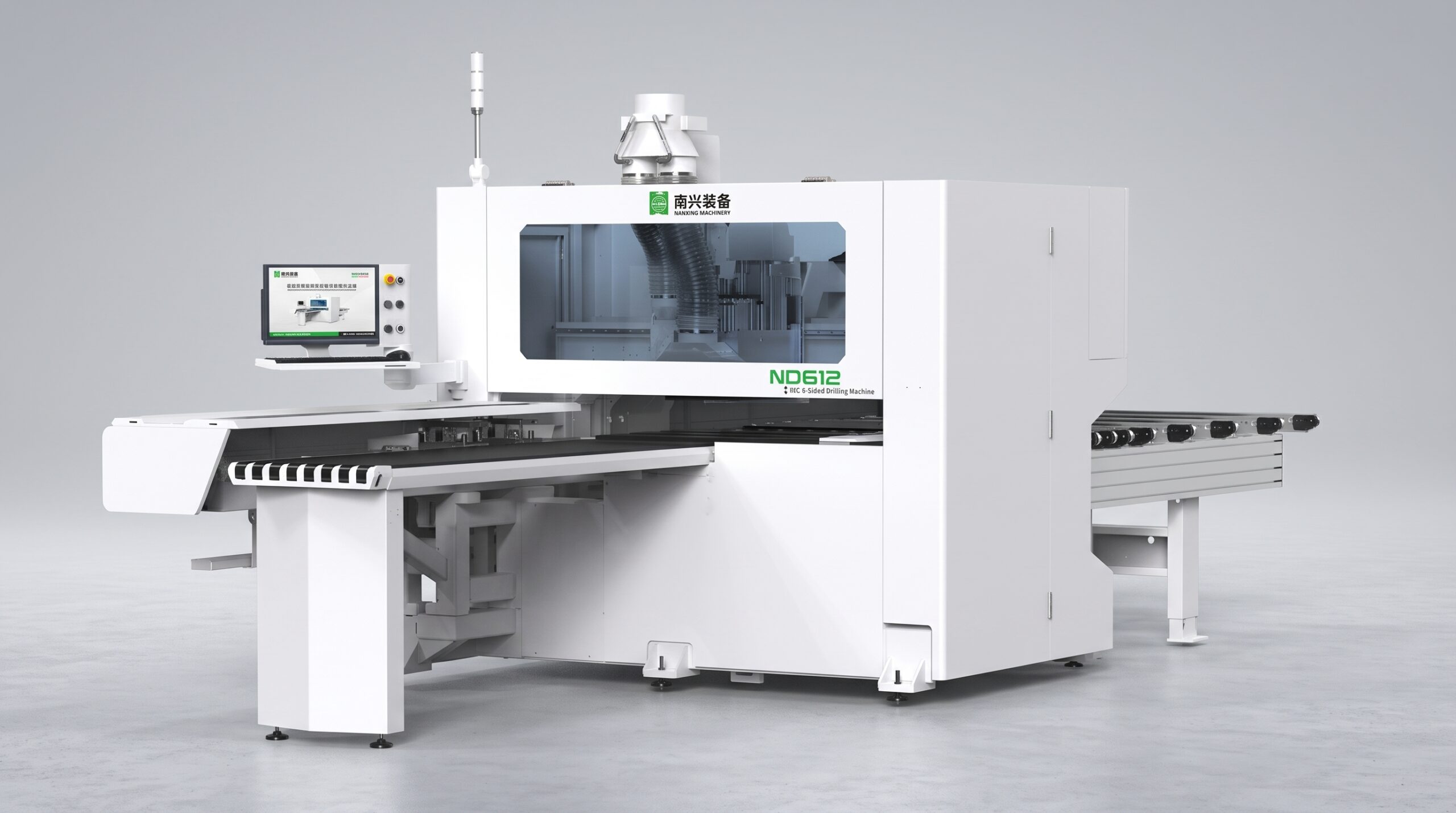

ND612 CNC 6-Sided Drilling Machine

Highlights

The ND612 CNC 6-Sided Drilling Machine is designed for precision drilling, grooving and routing of cabinet and panel furniture components. It performs six-sided drilling, top and bottom grooving, and shape routing in one process without manually turning the panel. A long guide rail with dual clamps supports fast and stable workpiece positioning, while automatic panel measurement and position compensation help reduce setup errors. The machine also features production data recording and an open software interface compatible with XML, MPR and other common file formats. Powered or gravity roller conveyors can be integrated for automated material handling.

• Panel length: 200–3000 mm

• Panel width: 30–1200 mm

• Panel thickness: 10–60 mm

• Main spindle power: 3.5 kW × 2

• Upper vertical drills: 18

• Lower vertical drills: 9

• Total power: 18 kW



Video

Features

• Six-sided CNC drilling combines face and edge drilling, top and bottom grooving, and routing without manual panel turning.

• Long guide rail with dual clamps provides stable positioning for workpieces of different sizes.

• Automatic panel measurement and position compensation help reduce positioning errors and improve furniture assembly accuracy.

• Production recording and an open software interface support XML, MPR and other compatible machining-data formats.

• Flexible conveyor integration supports powered or gravity roller conveying for automatic panel feeding and unloading.
