Highlights

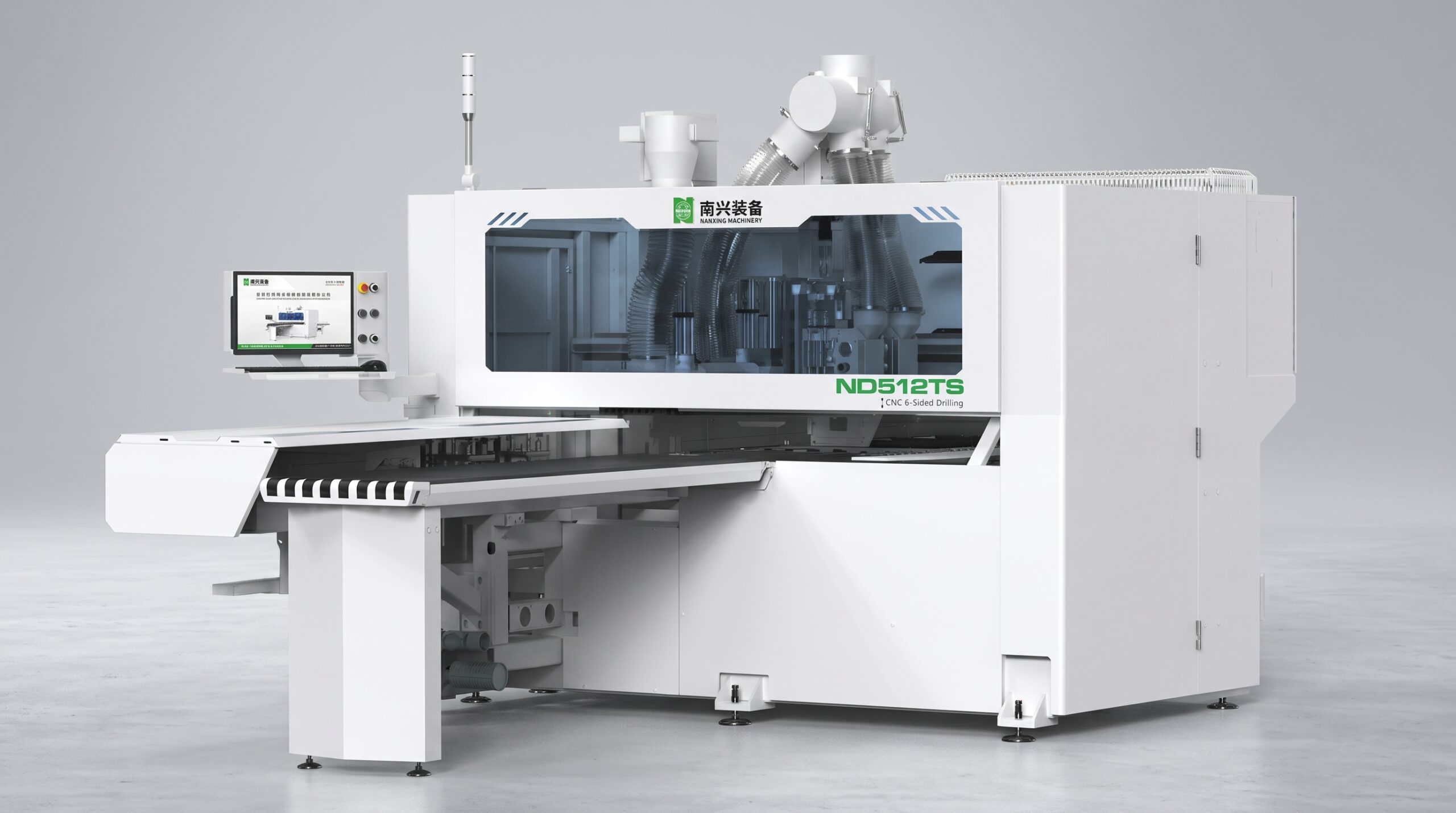

The ND512TS CNC 6-Sided Drilling Machine is designed for flexible drilling and light routing of panel furniture components. It can process all six sides of a panel, reducing the need for repeated manual repositioning, while the open software interface supports most common production data formats. The machine uses one upper and one lower drilling block and is configured for additional routing operations, making it suitable for batch-size-one and customized cabinet production. According to Nanxing’s Technical Data, the machine supports panels from 200–2800 mm long, 30–1200 mm wide and 10–60 mm thick.
- Panel length: 200–2800 mm
- Panel width: 30–1200 mm
- Panel thickness: 10–60 mm
- Maximum X / U speed: 135 / 135 m/min
- Vertical drills: 10
- Horizontal drills: 8 total
- Total power: 21.07 kW
Video
Features
- Six-sided CNC drilling allows top, bottom and edge-hole processing with reduced workpiece repositioning.
- Upper and lower drilling blocks support flexible machining of customized cabinet and panel components.
- Routing capability handles simple milling operations in addition to drilling.
- Open software interface supports most common production-data formats used in panel furniture manufacturing.
- SYNTEC control system provides centralized CNC operation and production control.
Technical data
| Specifications | Unit | ND512TS |
|---|---|---|
| Panel length | mm | 200–2800 |
| Panel width | mm | 30–1200 |
| Panel thickness | mm | 10–60 |
| Maximum X-axis speed | m/min | 135 |
| Maximum U-axis speed | m/min | 135 |
| Maximum Y-axis speed | m/min | 75 |
| Maximum Z-axis speed | m/min | 30 |
| V-axis speed* | m/min | 30 |
| Top spindle power | kW | 5.5 |
| Bottom spindle power | kW | 3.5 |
| Vertical drills | pcs | 10 |
| Horizontal drills – X direction | pcs | 2 × 2 |
| Horizontal drills – Y direction | pcs | 2 × 2 |
| Total horizontal drills | pcs | 8 |
| Total power | kW | 21.07 |
| Control system | — | SYNTEC |
| Overall dimensions | mm | 3962 × 3010 × 2320 |
