Highlights

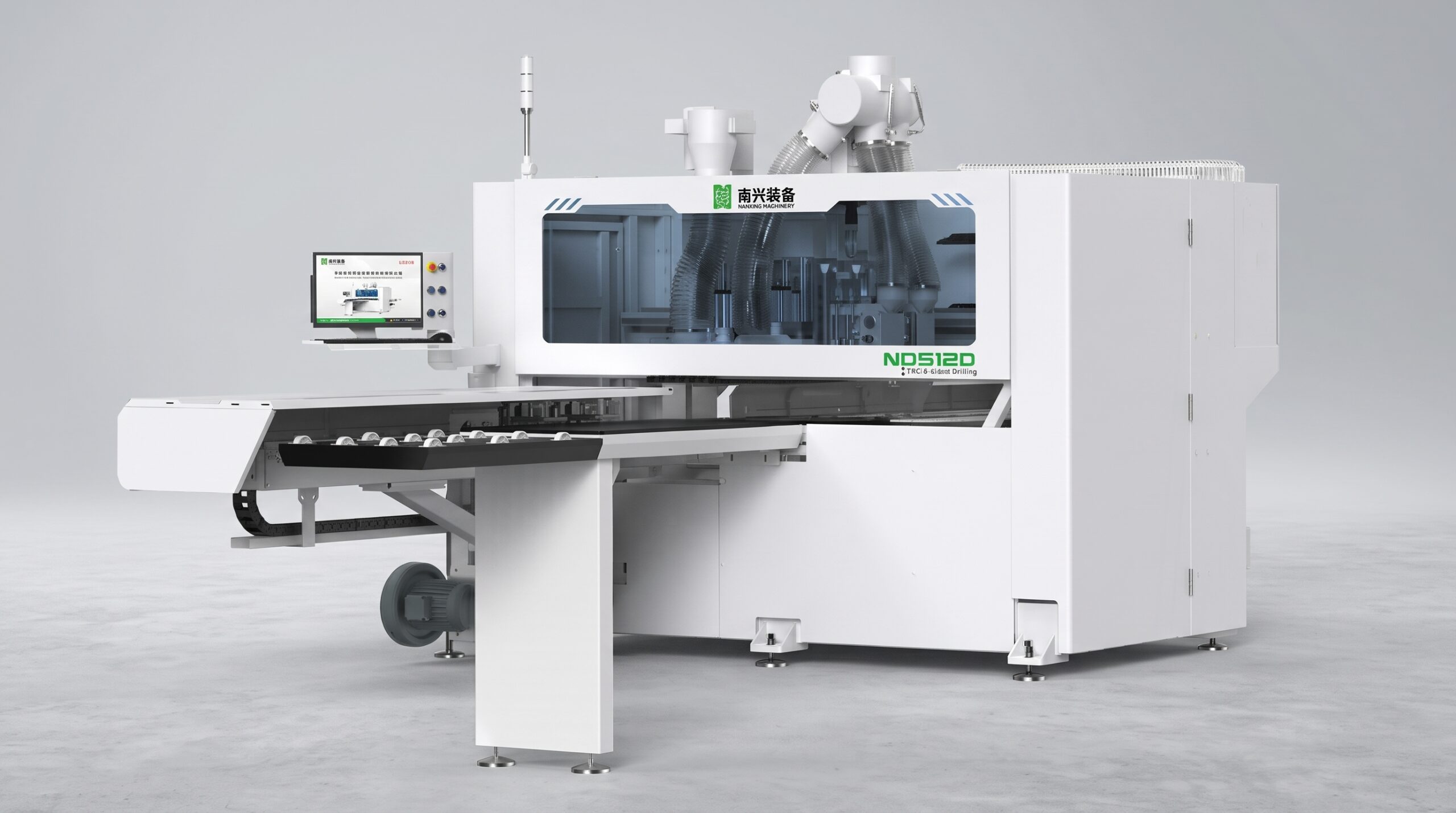

The ND512D CNC 6-Sided Drilling Machine is designed for flexible drilling and routing of cabinet and panel furniture components. It can process all six sides of a panel, reducing repeated manual repositioning while supporting batch-size-one and customized furniture production. The machine combines upper and lower drilling units with routing spindles, high-speed servo movement and an open software interface compatible with common production-data formats. According to Nanxing’s official Technical Data, it processes panels from 200–2800 mm long, 30–1200 mm wide and 10–60 mm thick. 南兴机械
- Panel length: 200–2800 mm
- Panel width: 30–1200 mm
- Panel thickness: 10–60 mm
- Maximum X / U speed: 135 / 135 m/min
- Spindle power: Top 3.5 kW × 2 / Bottom 3.5 kW
- Total power: 24.7 kW
- Control system: SYNTEC
Video
Features
- Six-sided CNC drilling supports top, bottom and edge-hole machining with reduced workpiece repositioning.
- Simple routing capability expands the machine beyond drilling for flexible custom panel processing.
- Upper and lower machining units support continuous processing of furniture and cabinet components.
- Open software interface supports most common production-data formats used in panel furniture manufacturing.
- SYNTEC CNC control and high-speed axis movement support automated batch and customized production.
Technical data
| Specifications | Unit | ND512D |
|---|---|---|
| Panel length | mm | 200–2800 |
| Panel width | mm | 30–1200 |
| Panel thickness | mm | 10–60 |
| Maximum X-axis speed | m/min | 135 |
| Maximum U-axis speed | m/min | 135 |
| Maximum Y-axis speed | m/min | 75 |
| Maximum Z-axis speed | m/min | 30 |
| Top spindle power | kW | 3.5 × 2 |
| Bottom spindle power | kW | 3.5 |
| Vertical drills | pcs | 10 × 2 / 9* |
| Horizontal drills – X direction | pcs | 2 × 4 |
| Horizontal drills – Y direction | pcs | 2 × 2 |
| Total power | kW | 24.7 |
| Control system | — | SYNTEC |
| Overall dimensions | mm | 3962 × 2810 × 2220 |
