Highlights

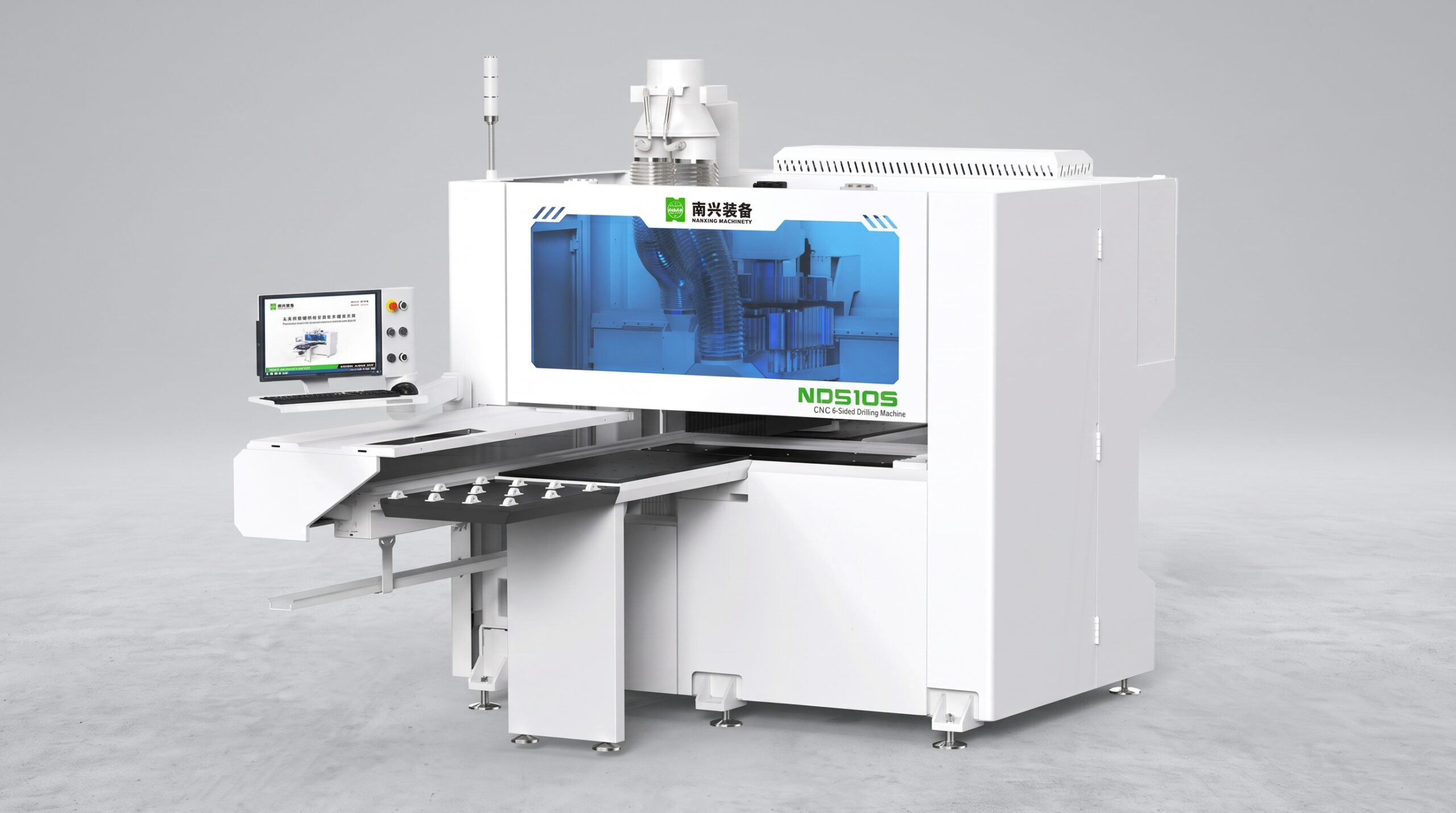

The ND510S CNC 6-Sided Drilling Machine with Saw is a compact CNC panel-processing machine designed for six-sided drilling, top grooving and simple routing in cabinet and furniture production. It uses one upper and one lower drilling block together with a 3.5 kW top spindle, allowing multiple machining operations to be completed with reduced panel repositioning. High-speed servo movement reaches 135 m/min on the X and U axes, while its open software interface supports common production-data formats for flexible batch-size-one manufacturing. The compact machine layout is particularly suitable for factories that require automated six-sided machining while minimizing floor-space requirements.
- Panel length: 200–3000 mm
- Panel width: 30–1200 mm
- Panel thickness: 10–60 mm
- Maximum X / U speed: 135 / 135 m/min
- Top spindle power: 3.5 kW
- Drilling configuration: Vertical 10 / 9; Horizontal X6 + Y4
- Total power: 13.8 kW
Video
Features
- Six-sided CNC drilling supports machining of panel faces and edges with reduced manual repositioning.
- Integrated top grooving expands processing capability beyond standard boring operations.
- Simple routing capability supports flexible machining requirements for customized and batch-size-one furniture production.
- Open software interface supports most common production-data formats used in panel manufacturing.
- Compact machine design reduces floor-space requirements while retaining automated six-sided processing capability.
Technical data
| Specifications | Unit | ND510S |
|---|---|---|
| Panel length | mm | 200–3000 |
| Panel width | mm | 30–1200 |
| Panel thickness | mm | 10–60 |
| Maximum X-axis speed | m/min | 135 |
| Maximum U-axis speed | m/min | 135 |
| Maximum Y-axis speed | m/min | 75 |
| Maximum Z-axis speed | m/min | 30 |
| Maximum V-axis speed | m/min | 30 |
| Top spindle power | kW | 3.5 |
| Vertical drills | pcs | 10 / 9 |
| Horizontal drills – X direction | pcs | 6 |
| Horizontal drills – Y direction | pcs | 4 |
| Air supply | MPa | 0.6–0.7 |
| Total power | kW | 13.8 |
| Overall dimensions | mm | 3962 × 2222 × 2271 |
