Highlights

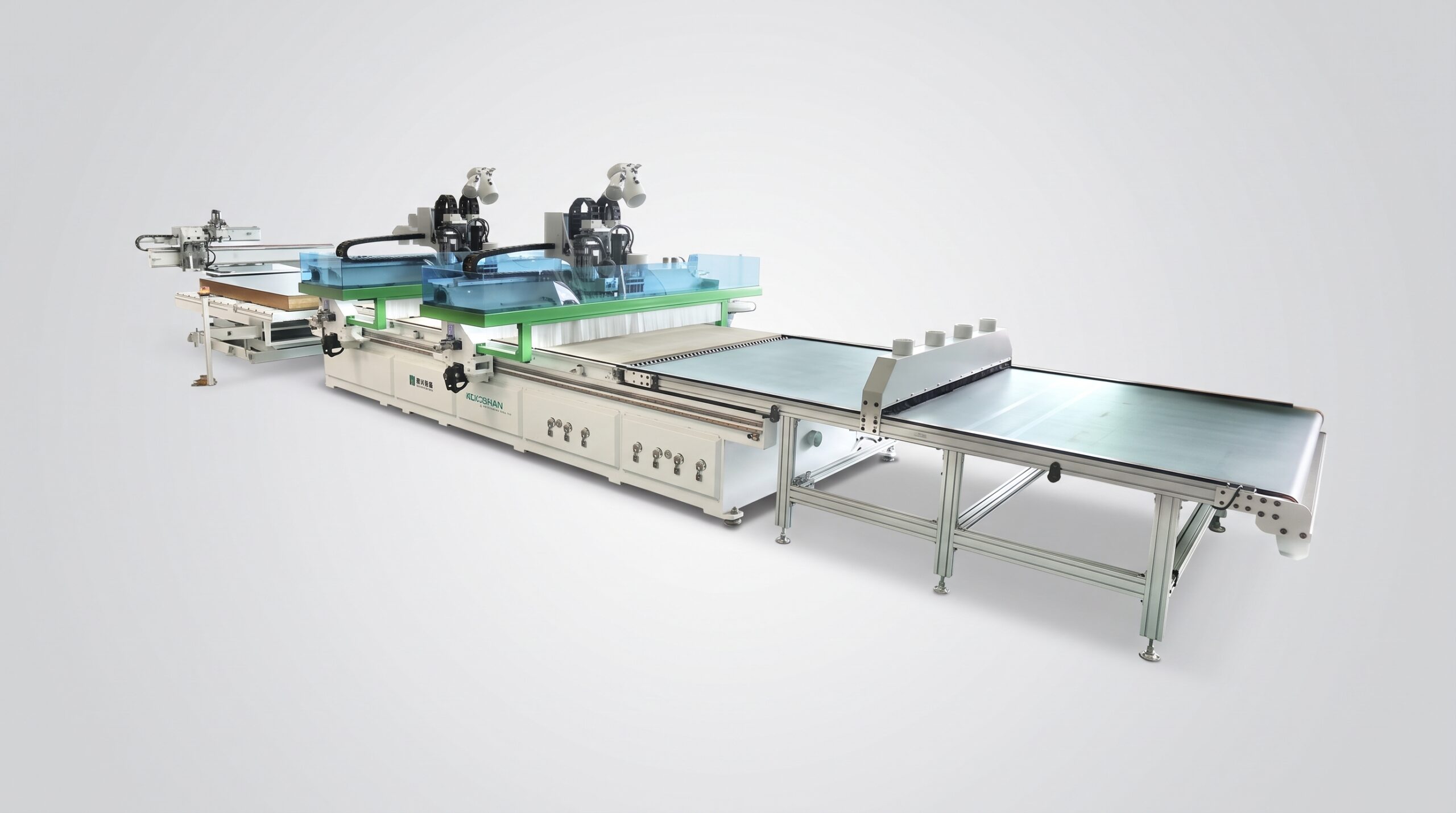

The NCG3021L PLUS CNC Nesting Machine with Automatic Loading and Unloading is a high-output large-format nesting line for automated panel furniture production. It integrates automatic loading, labeling, top drilling, grooving, shaping, cutting and unloading into a continuous production process. The PLUS configuration uses twin gantries, with each gantry equipped with a 12 kW ATC Italian main spindle and drilling unit, allowing both gantries to operate synchronously through Nanxing’s optimization software for increased machining efficiency.
- Working table size: 3100 × 2100 mm
- Maximum X / Y / Z speed: 80 / 80 / 20 m/min
- Main spindle power: 12 kW
- Maximum spindle speed: 24,000 rpm
- Automatic tool changer: 12 tools
- Vacuum suction flow: 250 m³/h × 2
- Total power: 47 kW
3D
NCG3021L Plus – 3D model by nanxing_ru_sverprisad (@nanxing_ru_sverprisad) [aefb691]
Features
- Twin-gantry architecture allows two machining units to operate synchronously for higher production efficiency.
- Integrated automatic loading, labeling, machining and unloading reduces manual panel handling.
- Supports top drilling, grooving, shaping and panel cutting within one automated process.
- 12 kW ATC spindle with 12-tool automatic tool changing supports flexible multi-process machining.
- Standard optimization software coordinates machining paths and synchronized gantry operation.
Technical data
| Specifications | Unit | NCG2812L | NCG3021L PLUS |
|---|---|---|---|
| Table size | mm | 2800 × 1230 | 3100 × 2100 |
| Maximum speed X / Y / Z | m/min | 80 / 80 / 20 | 80 / 80 / 20 |
| Main spindle power | kW | 12 | 12 |
| Maximum spindle speed | rpm | 24,000 | 24,000 |
| Automatic tool changer | tools | 12 | 12 |
| Vertical drills | pcs | 10 | 10 |
| Drill rotating speed | rpm | 4000 | 4000 |
| Vacuum pump | kW | 7.5 | 7.5 |
| Suction flow rate | m³/h | 250 | 250 × 2 |
| Dust extraction | mm | Ø200 × 1 + Ø125 × 3 | Ø200 × 1 + Ø125 × 3 |
| Total power | kW | 35 | 47 |
| Overall dimensions | mm | 11000 × 2600 × 2500 | 12500 × 4500 × 2500 |
| Net weight | kg | 5500 | 7000 |
