Highlights

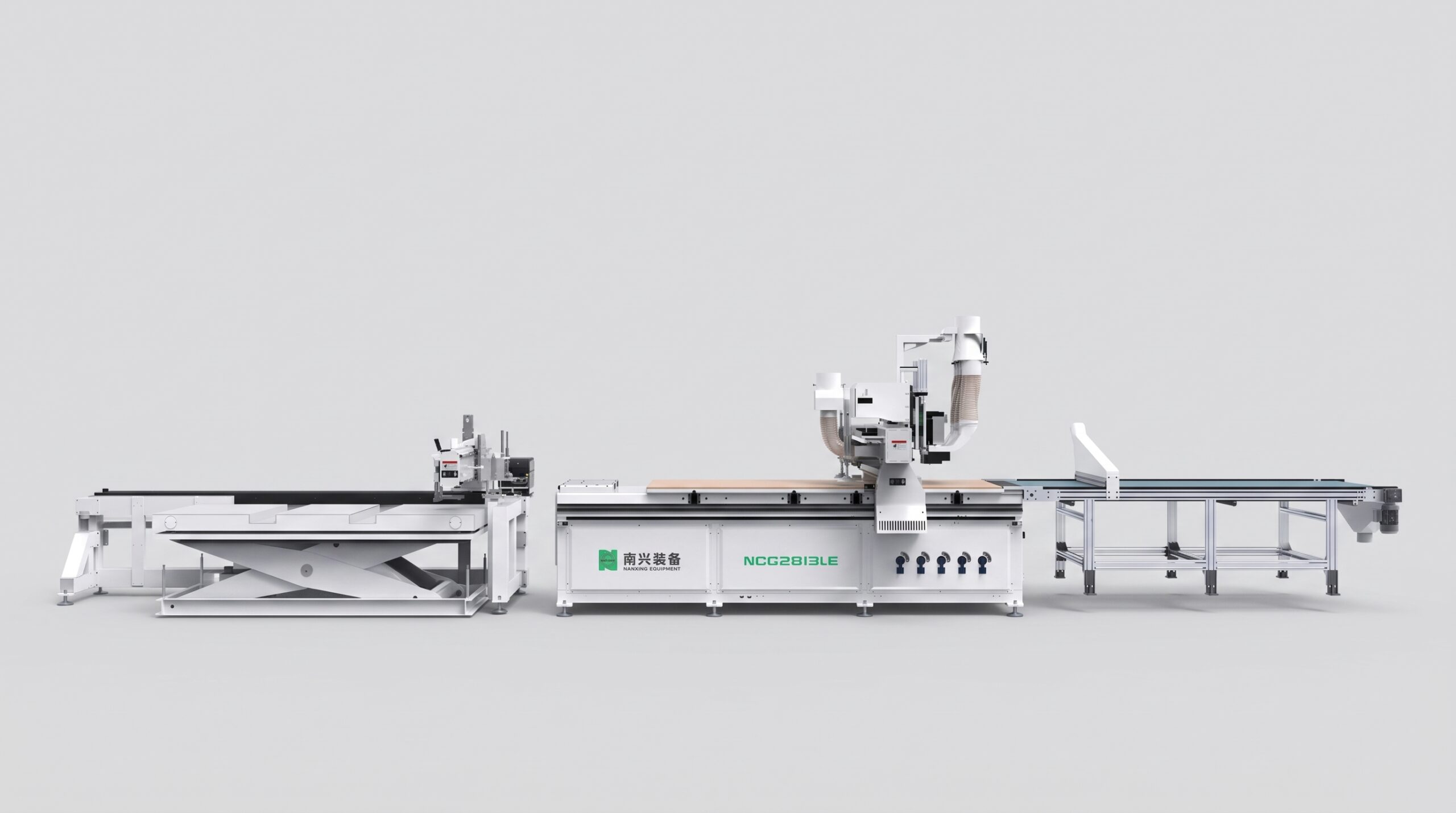

The NCG2813LE CNC Nesting Machine with Automatic Loading and Unloading is designed for automated panel nesting, routing, grooving, shaping and top-side boring. It uses four high-speed main spindles, including three 3.5 kW spindles and one 6 kW spindle, allowing multiple machining operations to be completed without frequent manual tool changes. Automatic feed-in and feed-out tables improve material handling efficiency and reduce labor, while high-quality servo motors and a ball-screw-driven Z axis provide precise machine movement. An industrial PC with Windows-based control provides centralized machine operation.
- Working table size: 2800 × 1230 mm
- Main spindles: 6 kW × 1 + 3.5 kW × 3
- Maximum spindle speed: 18,000 rpm
- Maximum X / Y / Z speed: 50 / 50 / 20 m/min
- Vacuum pump: 7.5 kW
- Vacuum suction flow: 250 m³/h
- Total power: 29.5 kW
Features
- Four high-speed spindles support nesting, routing, shaping, grooving and top-side boring.
- Automatic feed-in and feed-out tables reduce manual panel handling and improve production flow.
- Servo-controlled axes provide accurate and stable positioning during CNC machining.
- Ball-screw-driven Z axis improves precision of vertical movement.
- Independent electrical cabinet, centralized lubrication pump and Windows-based IPC simplify operation and maintenance.
Technical data
| Specifications | Unit | NCG2813LE |
|---|---|---|
| Table size | mm | 2800 × 1230 |
| Maximum speed X / Y / Z | m/min | 50 / 50 / 20 |
| Main spindle power | kW | 6 × 1 + 3.5 × 3 |
| Maximum spindle speed | rpm | 18,000 |
| Vacuum pump | kW | 7.5 |
| Suction flow rate | m³/h | 250 |
| Dust extraction | mm | Ø200 |
| Total power | kW | 29.5 |
| Overall dimensions | mm | 10000 × 2500 × 2400 |
| Net weight | kg | 4600 |
