Highlights

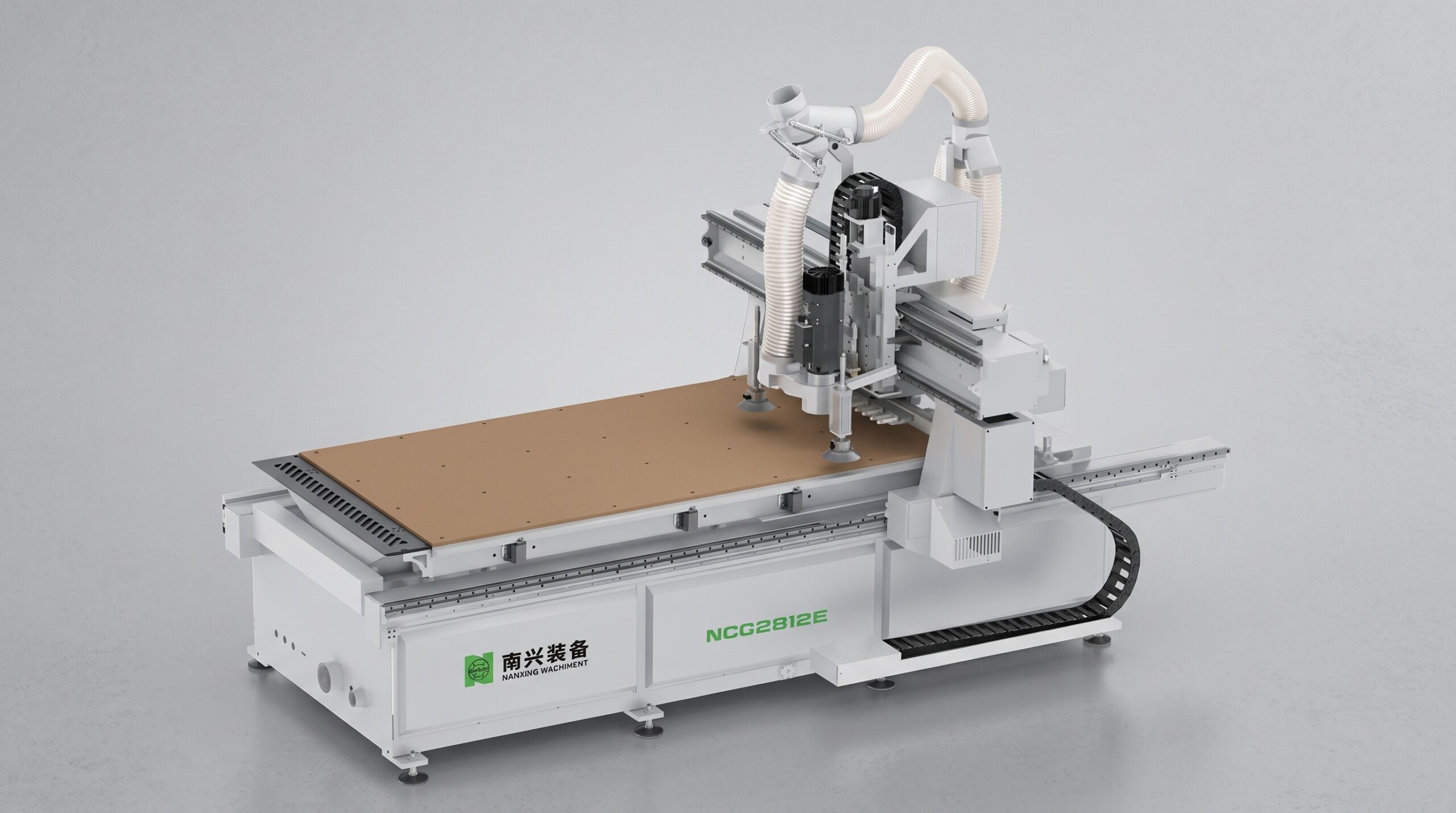

The NCG2812E CNC Nesting Machine is designed for nesting, routing, grooving, shaping and top-side boring of furniture panels. It uses four high-speed spindles to handle different machining operations without frequent tool changes, while servo-driven axes and a ball-screw Z axis provide accurate positioning. An automatic unloading pusher improves material handling efficiency, and the IPC-based Windows control system provides centralized machine operation for cabinet and panel furniture production.
- Working table size: 2800 × 1220 mm
- Maximum axis speed: 100 / 100 / 20 m/min
- Maximum spindle speed: 24,000 rpm
- Spindle configuration: 4 high-speed spindles
- Vacuum pump: 7.5 kW
- Vacuum flow rate: 250 m³/h
- Total power: 24 kW
Images
Features

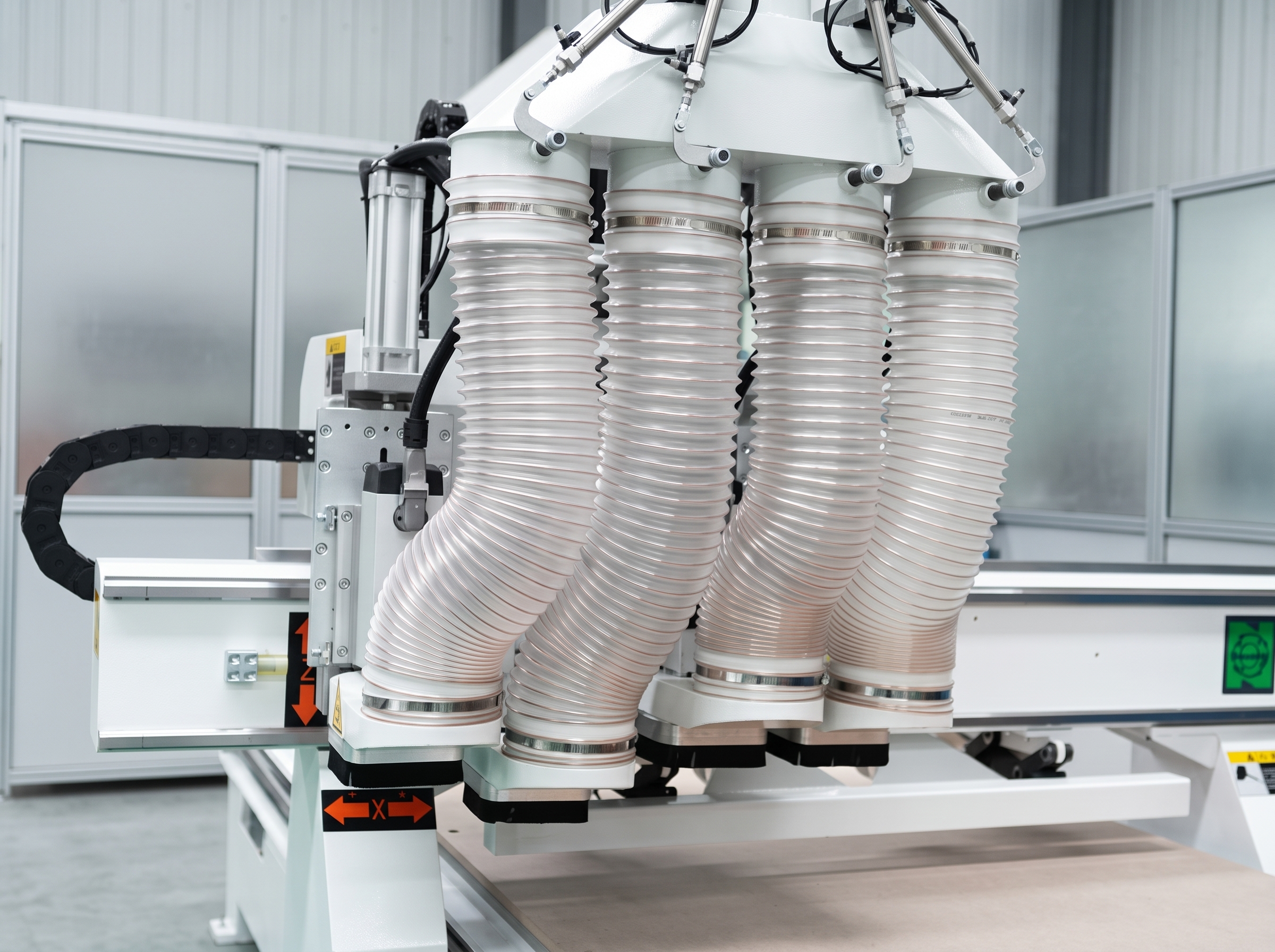

- Four-spindle configuration supports nesting, grooving, routing, shaping and top-side boring.

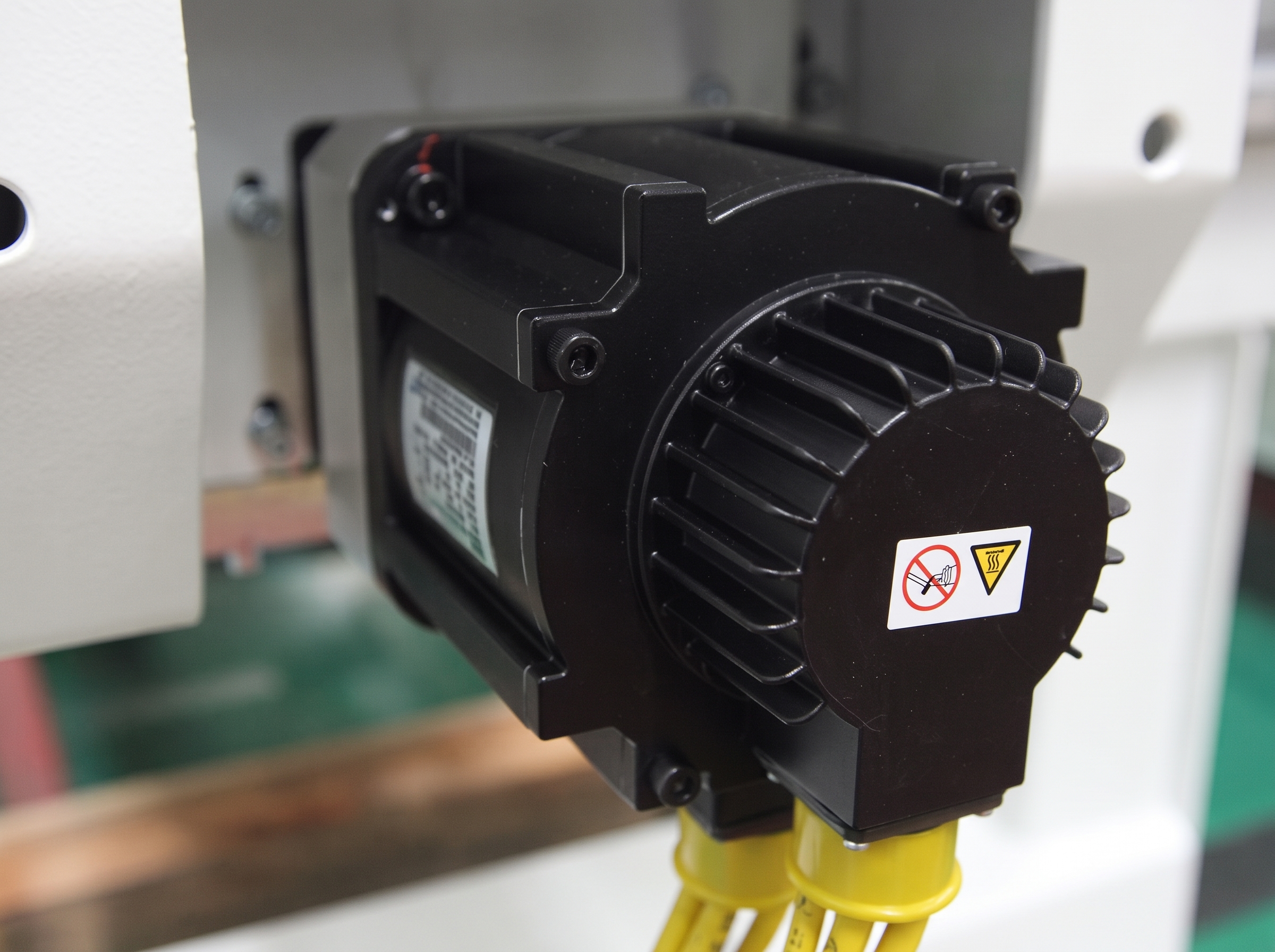

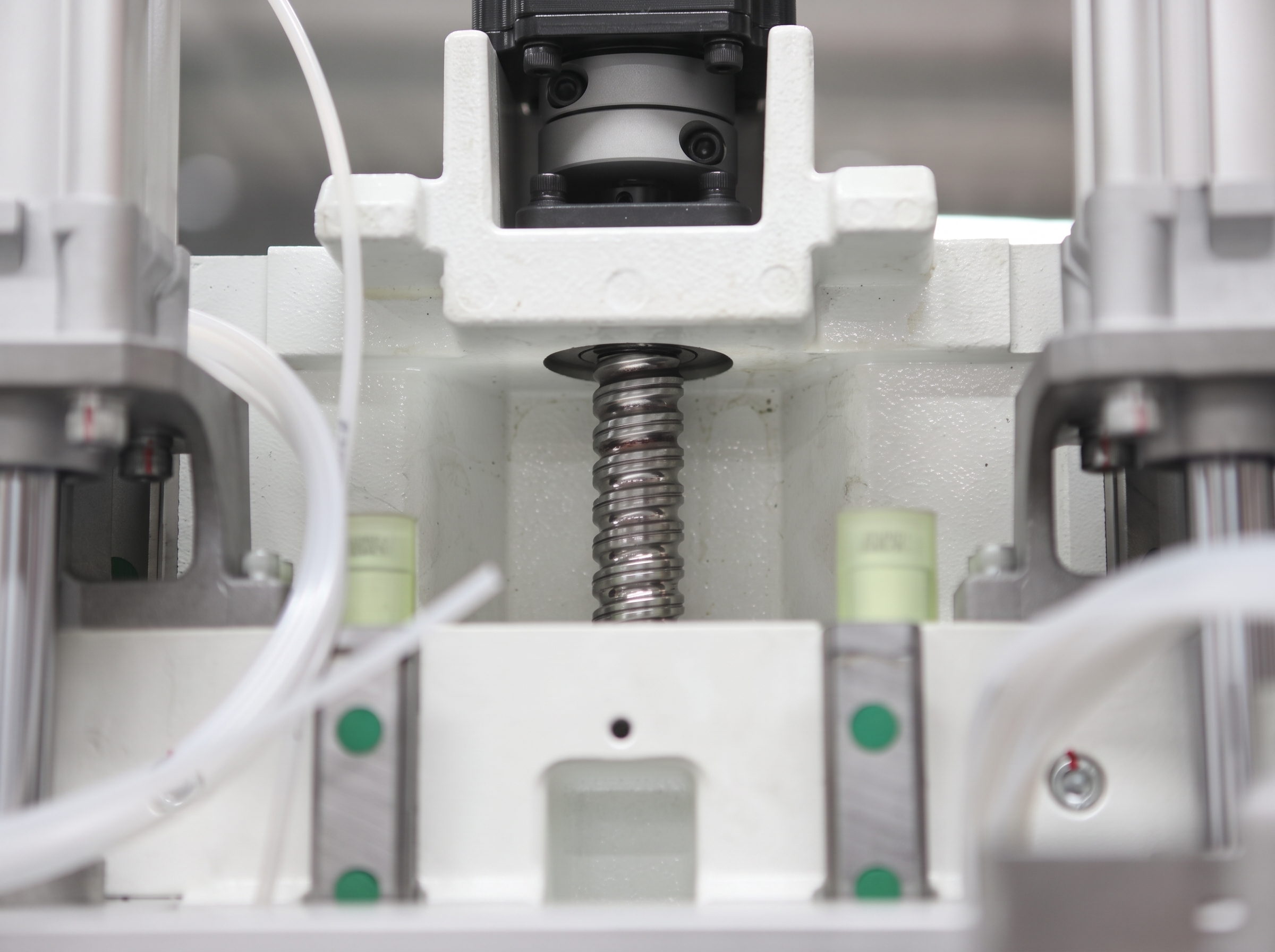

- High-quality servo motors control axis movement, with a ball-screw-driven Z axis for precise positioning.

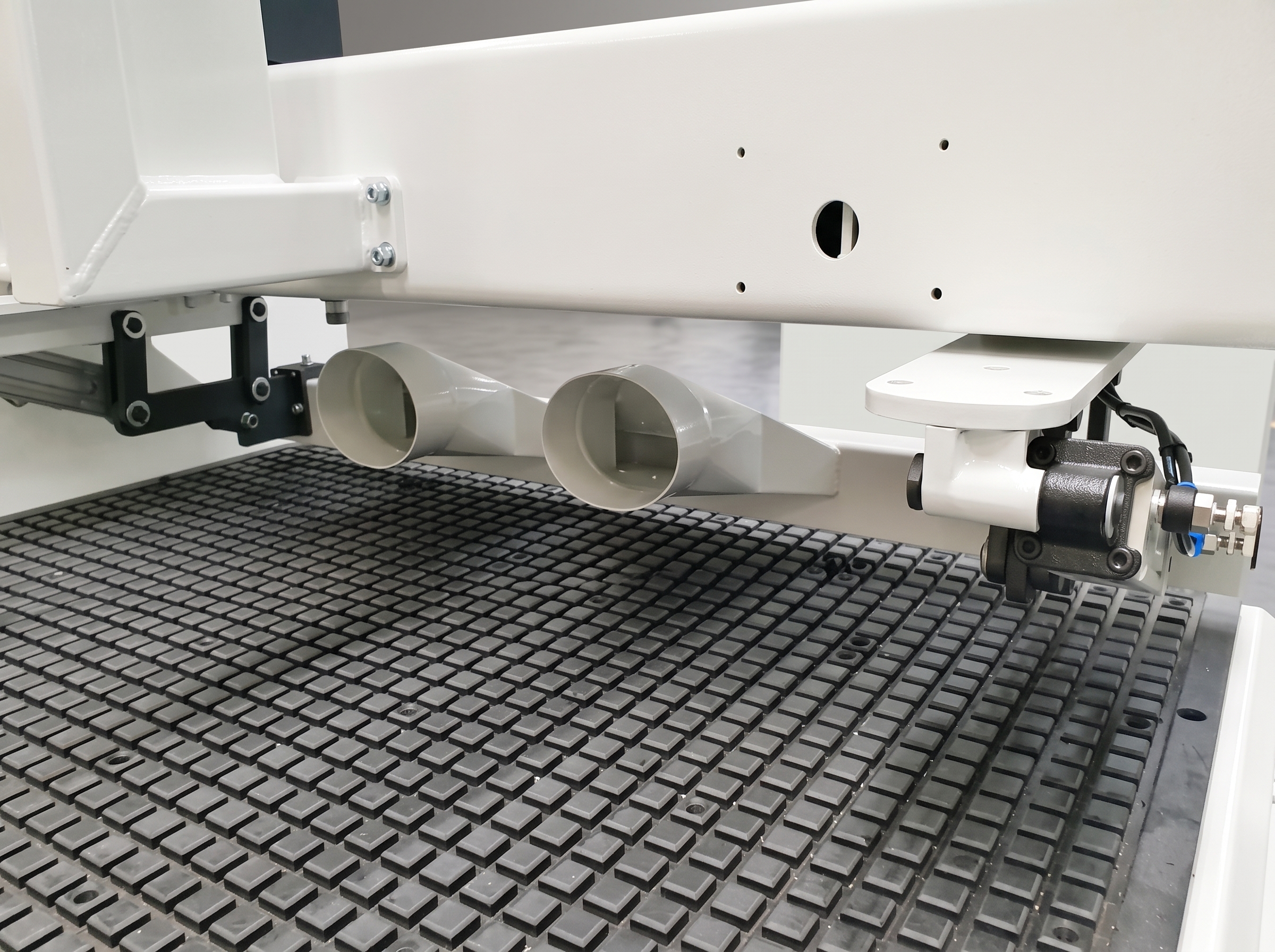

- Automatic unloading pusher simplifies removal of finished panels and incorporates dust extraction.

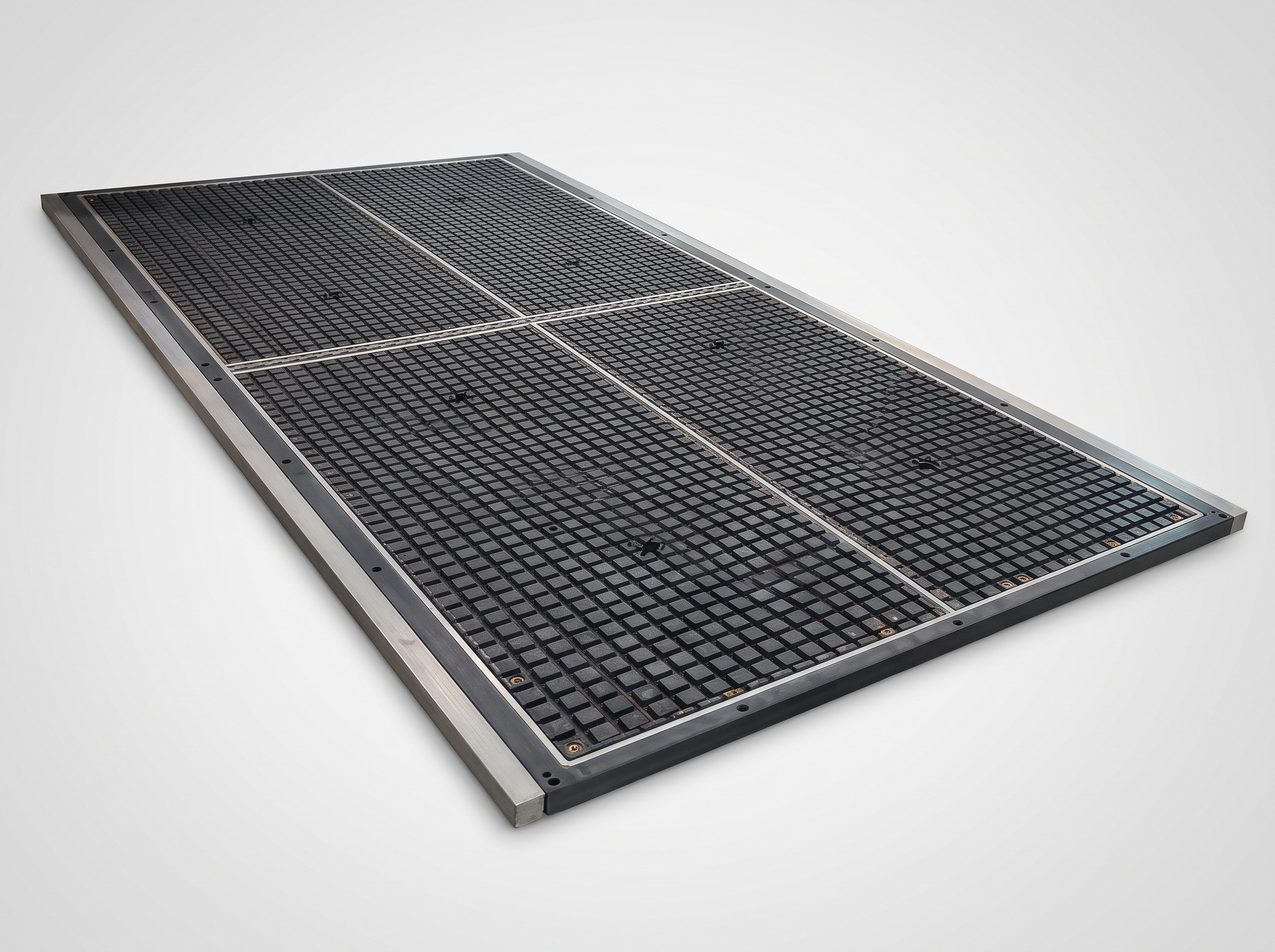

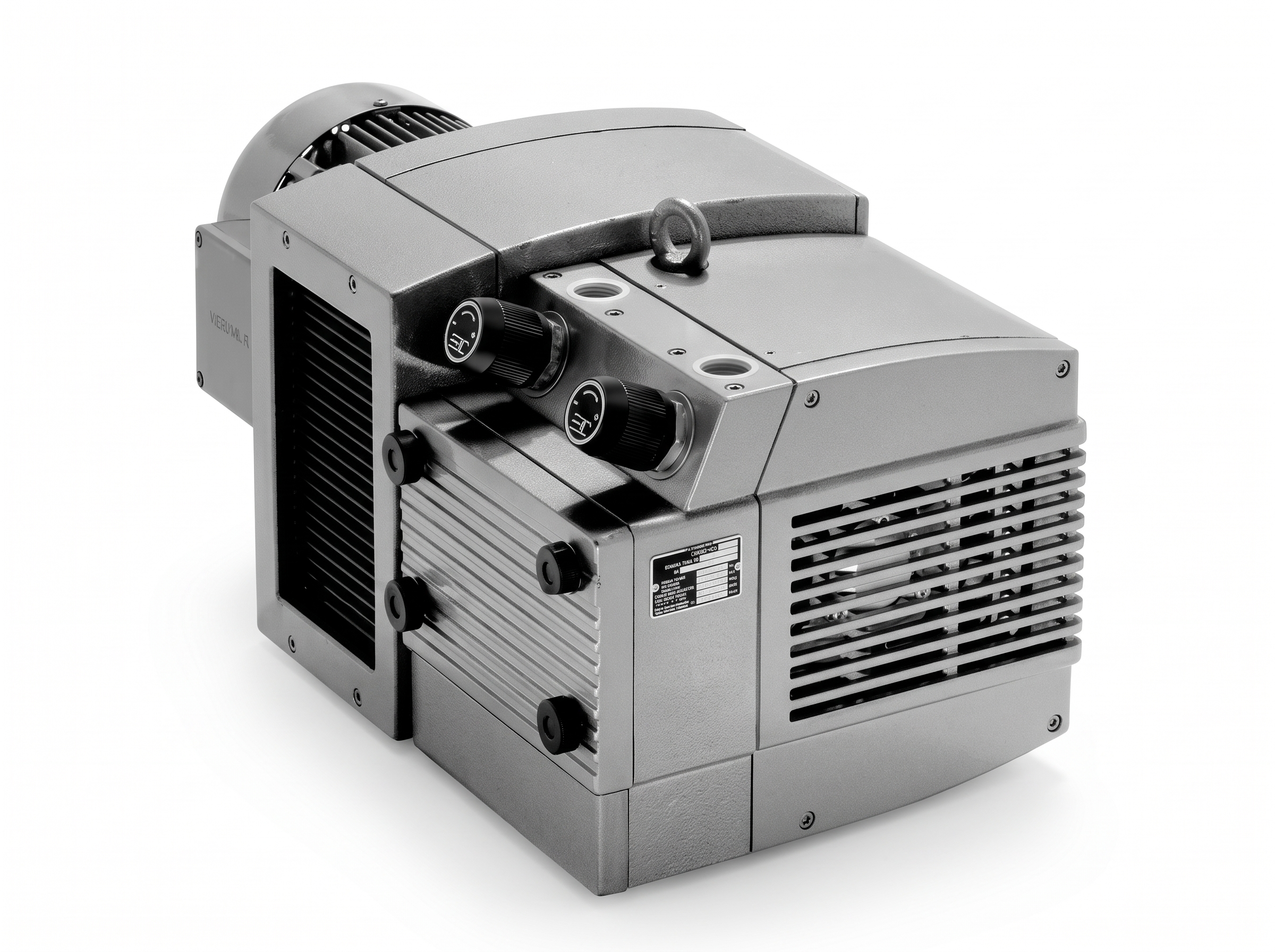

- 7.5 kW air-cooled vacuum pump provides strong workpiece holding on the machining table.
- Independent electrical cabinet and IPC-based Windows control system simplify machine operation and maintenance.
Technical data
| Specifications | Unit | NCG2812E |
|---|---|---|
| Table size | mm | 2800 × 1220 |
| Maximum speed X / Y / Z | m/min | 100 / 100 / 20 |
| Main spindle power | kW | 9* |
| Maximum spindle speed | rpm | 24,000 |
| Vacuum pump | kW | 7.5 |
| Vacuum flow rate | m³/h | 250 |
| Dust extraction | mm | Ø200 |
| Total power | kW | 24 |
| Overall dimensions | mm | 4020 × 2270 × 2500 |
| Net weight | kg | 2500 |
