Highlights

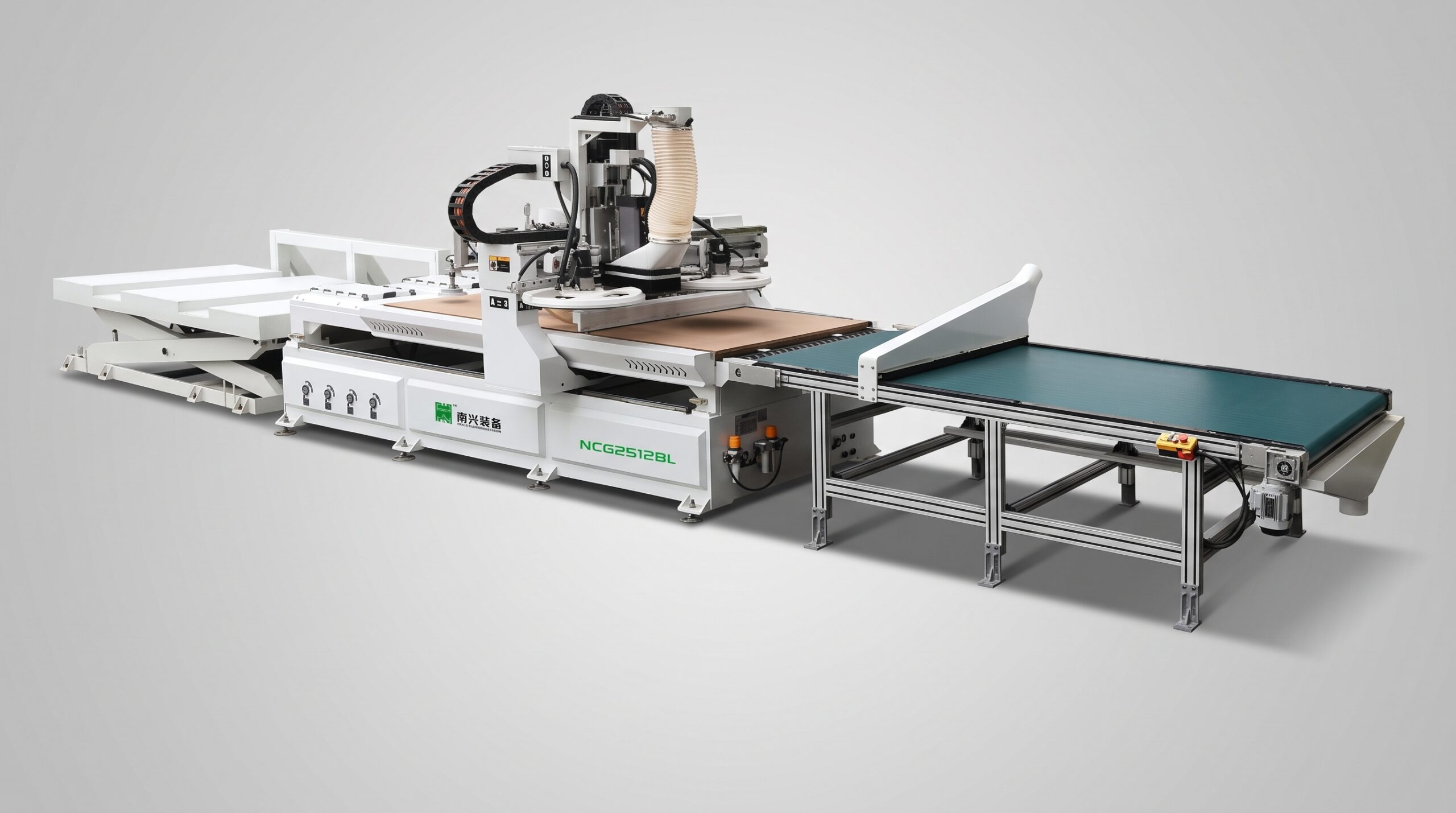

The NCG2512BL CNC Nesting Machine with Automatic Loading and Unloading is designed for automated panel nesting and CNC machining applications. According to Nanxing’s official technical data, the NCG2512BL provides a 2440 × 1220 mm working table, 12 kW main spindle, 12-position automatic tool changer, 10 vertical drills and a maximum spindle speed of 24,000 rpm. The integrated loading and unloading configuration is intended to reduce manual panel handling around the CNC machining process.
- Table size: 2440 × 1220 mm
- Main spindle power: 12 kW
- Maximum spindle speed: 24,000 rpm
- Automatic tool changer: 12 tools
- Vertical drills: 10
- Maximum X / Y / Z speed: 30 / 30 / 20 m/min
- Vacuum suction flow: 250 m³/h
Features
- Automatic loading and unloading configuration for automated panel handling.
- 12 kW main spindle supports CNC panel machining operations.
- 12-position ATC allows automatic switching between machining tools.
- 10 vertical drilling spindles support top-side drilling operations.
- 7.5 kW vacuum pump with 250 m³/h suction flow provides workpiece holding during machining.
Technical data
| Specifications | Unit | NCG2512BL |
|---|---|---|
| Table size | mm | 2440 × 1220 |
| Maximum speed X / Y / Z | m/min | 30 / 30 / 20 |
| Main spindle power | kW | 12 |
| Maximum spindle speed | rpm | 24,000 |
| Automatic tool changer | tools | 12 |
| Vertical drills | pcs | 10 |
| Drilling speed | rpm | 4,000 |
| Vacuum pump | kW | 7.5 |
| Suction flow rate | m³/h | 250 |
| Dust extraction | mm | Ø200 × 1 + Ø125 × 3 |
| Total power | kW | 30 |
| Overall dimensions | mm | 9500 × 2300 × 2700 |
| Net weight | kg | 3500 |
