Highlights

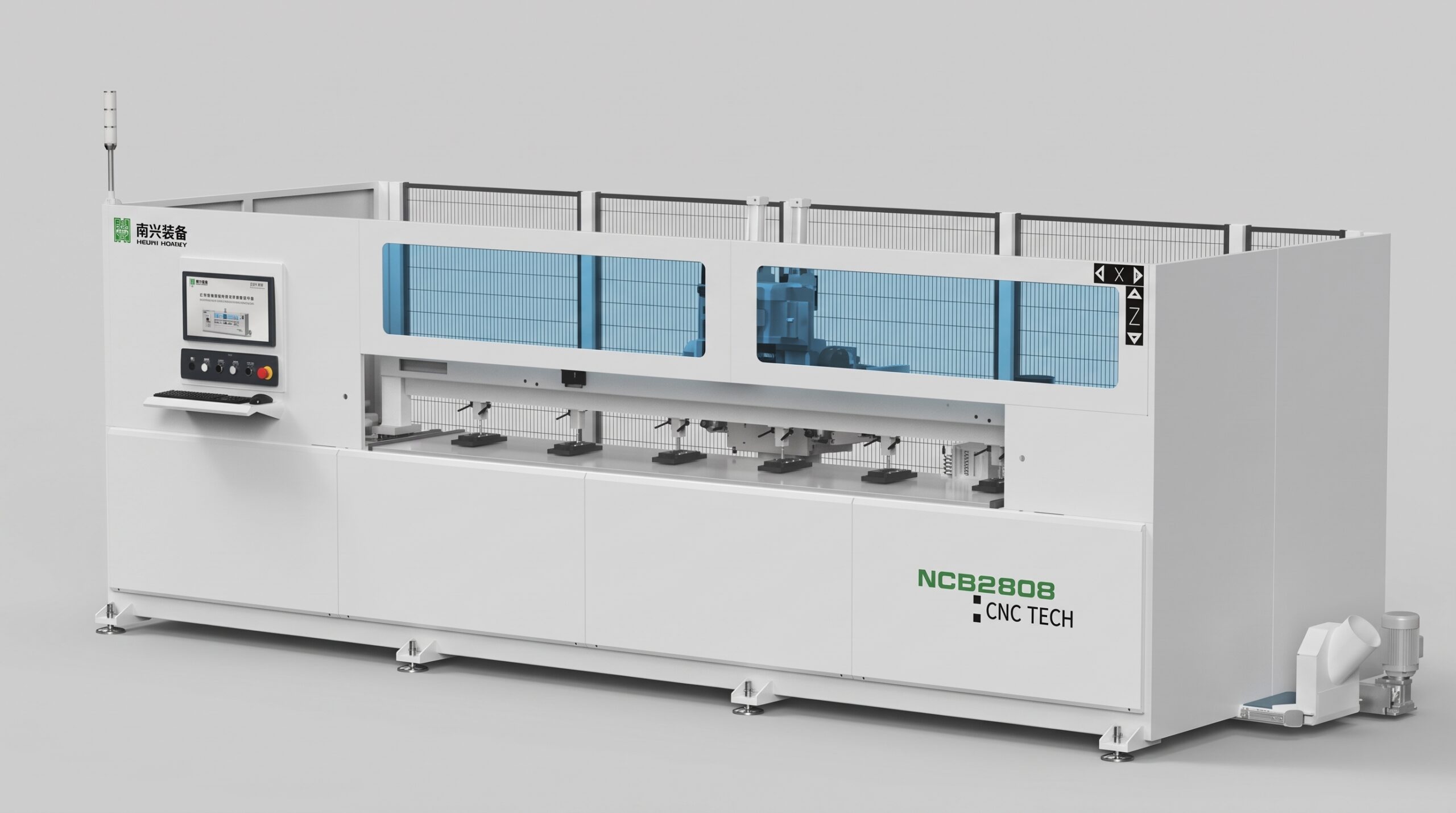

The NCB2808 CNC Drilling and Milling Machine is a multi-purpose CNC solution for drilling, milling and routing of furniture panels and customized components. It automatically detects panel thickness and adjusts the tool position accordingly, while a multi-stroke beam system provides three-stage movement for different panel widths and machining positions. The machine is equipped with three spindles, a 6-position in-line tool magazine, dual automatic tool setters and a professional NC system with industrial PC control for efficient and accurate panel machining.
- Panel length: 250–2800 mm
- Panel width: 200–800 mm
- Panel thickness: 10–60 mm
- Main spindles: 3
- Maximum spindle speed: 18,000 rpm
- Tool magazine: 6 positions
- Maximum X-axis travelling speed: 70 m/min
Video
Features
- Automatically detects panel thickness and adjusts tool position according to the actual workpiece thickness.
- Multi-stroke cross beam provides three-stage positioning within a 0–160 mm range for different panel widths and machining locations.
- 6-position in-line tool magazine allows different tools to be stored and changed quickly.
- Two sets of vertical and horizontal automatic tool setters provide fast and accurate tool calibration.
- Professional NC system and industrial computer support online 3D graphic editing and door-model library retrieval.
Technical data
| Specifications | Unit | NCB2808 |
|---|---|---|
| Panel width | mm | 200–800 |
| Panel length | mm | 250–2800 |
| Panel thickness | mm | 10–60 |
| X-axis working range | mm | 250–2800 |
| Y-axis working range | mm | 160 |
| Z-axis working range | mm | 60 |
| X-axis travelling speed | m/min | 70 |
| Y-axis travelling speed | m/min | 20 |
| Z-axis travelling speed | m/min | 20 |
| Working table area | mm | 2660 × 420 |
| Working table height | mm | 980 |
| Main spindle quantity | pcs | 3 |
| Vertical spindle power | kW | 7.5 |
| Horizontal spindle power | kW | 6 + 3.5 |
| Maximum spindle speed | rpm | 18,000 |
| Drilling depth | mm | 60 |
| Tool magazine | tools | 6 |
| Power supply | — | 380 V / 3 Phase / 50 Hz |
| Dust extraction | mm | Ø150 × 2 |
| Total power | kW | Not specified on official page |
| Overall dimensions | mm | 5350 × 2000 × 2000 |
| Net weight | kg | 1600 |
