Highlights

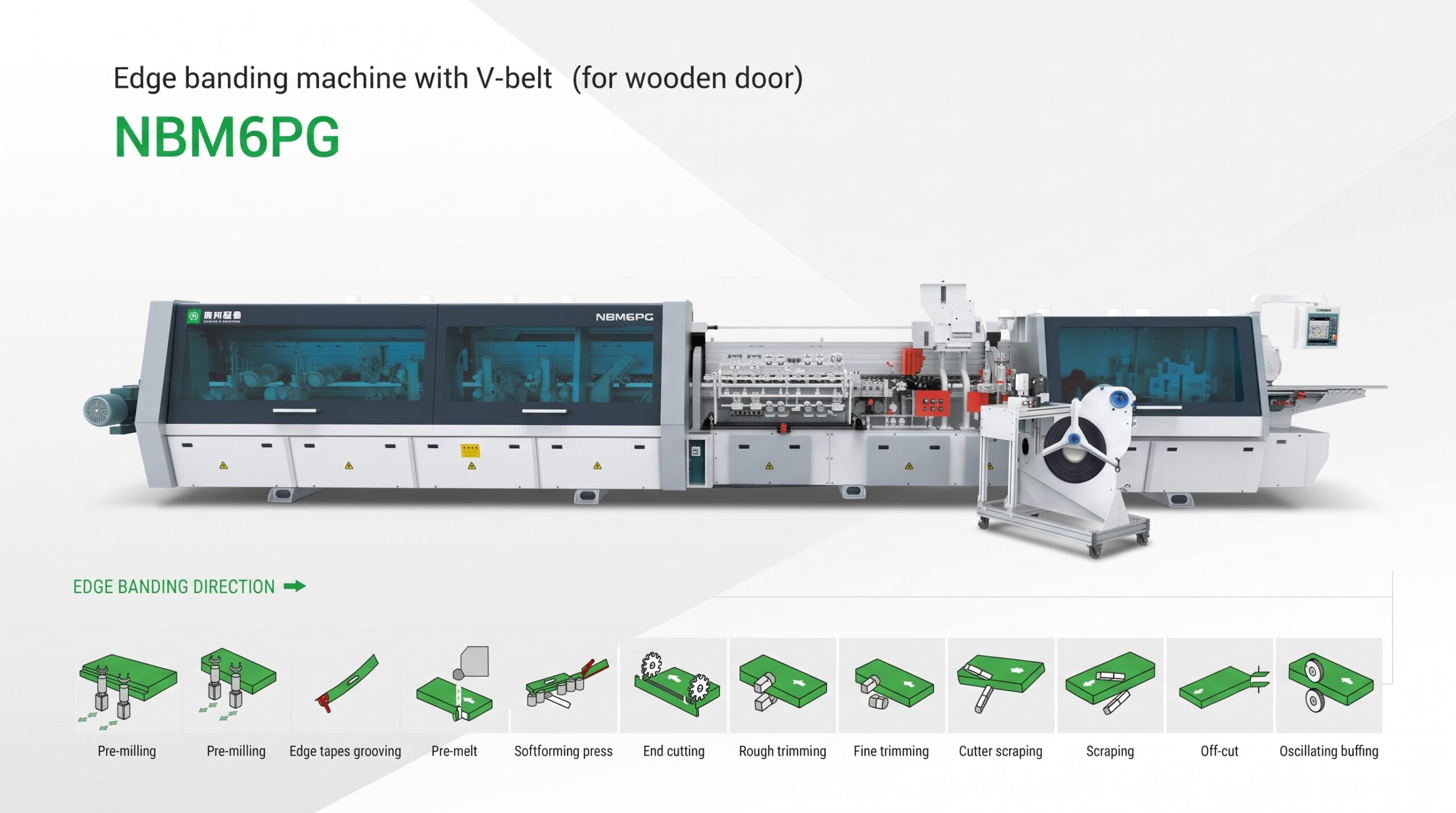

The NBM6PG Edge Banding Machine with V-Belt is designed for automatic edge banding of furniture panels. Its V-belt configuration supports panel conveying during edge processing, with selectable feeding speeds of 12, 16 and 20 m/min. The machine accommodates 9–60 mm panel thickness and 0.6–1 mm edge tape, making it suitable for thin edge banding applications in cabinet and furniture manufacturing. With 50 kW total power and nine Ø125 mm dust extraction connections, the NBM6PG is configured for industrial panel processing.
-
Minimum panel size: 120 × 120 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.6–1 mm
-
Feeding speed: 12 / 16 / 20 m/min
-
Dust extraction: Ø125 mm × 9
-
Total power: 50 kW
-
Net weight: 5,800 kg
Features
-
V-belt conveying configuration for automatic panel edge banding.
-
Three selectable feeding speeds of 12, 16 and 20 m/min for different production requirements.
-
Thin edge tape processing supports 0.6–1 mm banding materials.
-
Flexible panel thickness capacity accommodates workpieces from 9 to 60 mm.
-
Nine Ø125 mm dust extraction connections support dust removal during operation.
Technical data
| Specifications | Unit | NBM6PG |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel width | mm | ≥120 |
| Minimum panel size | mm | 120 × 120 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.6–1 |
| Feeding speed | m/min | 12 / 16 / 20 |
| Feeding speed with corner trimming | m/min | Not specified |
| Dust extraction | mm | Ø125 × 9 |
| Total power | kW | 50 |
| Overall dimensions (L × W × H) | mm | 11400 × 1050 × 1900 |
| Net weight | kg | 5800 |
