Highlights

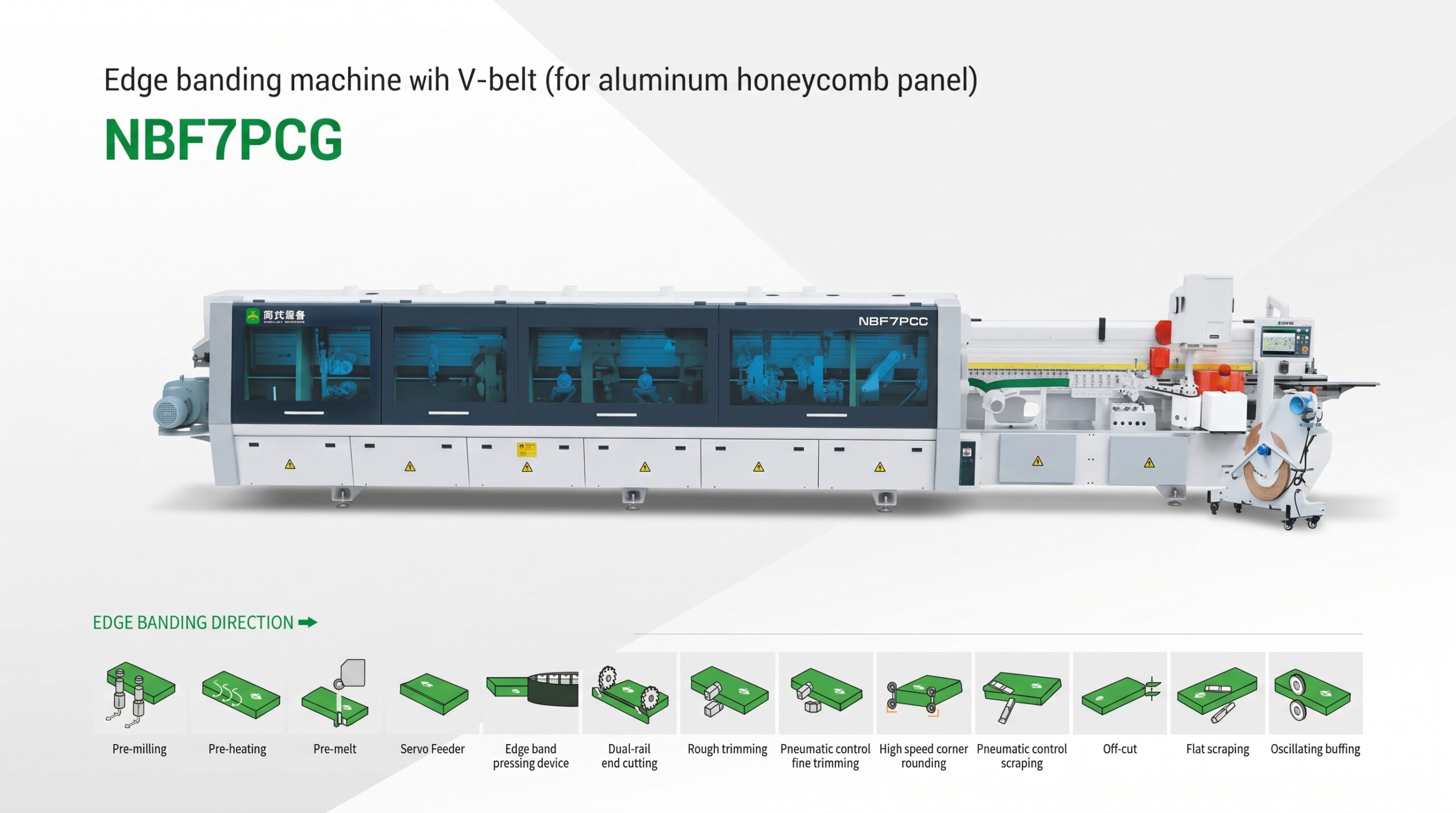

The NBF7PCG Edge Banding Machine with V-Belt is designed for automatic edge banding of furniture panels and honeycomb board applications. Its V-belt conveying system supports stable panel movement during edge processing. The machine accommodates 9–60 mm panel thickness and 0.4–3 mm edge tape thickness, with selectable feeding speeds of 12, 16 and 20 m/min. A dedicated 12 m/min feeding speed for honeycomb panels, 30 kW total power and eight dust extraction connections support continuous industrial panel production.
-
Minimum panel length: 120 mm
-
Minimum panel width: 80 mm
-
Minimum panel size: 120 × 80 / 200 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 12 / 16 / 20 m/min
-
Total power: 30 kW
Features
-
V-belt conveying system supports stable panel movement during edge banding.
-
Three selectable feeding speeds of 12, 16 and 20 m/min accommodate different production requirements.
-
Honeycomb panel processing operates at a specified feeding speed of 12 m/min.
-
Flexible edge banding capacity supports 9–60 mm panels and 0.4–3 mm edge tapes.
-
Eight Ø125 mm dust extraction connections support dust removal during continuous operation.
Technical data
| Specifications | Unit | NBF7PCG |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size | mm | 120 × 80 / 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 12 / 16 / 20 |
| Honeycomb panel feeding speed | m/min | 12 |
| Dust extraction | mm | Ø125 × 8 |
| Total power | kW | 30 |
| Overall dimensions (L × W × H) | mm | 11200 × 1050 × 1850 |
| Net weight | kg | 5550 |
