Highlights

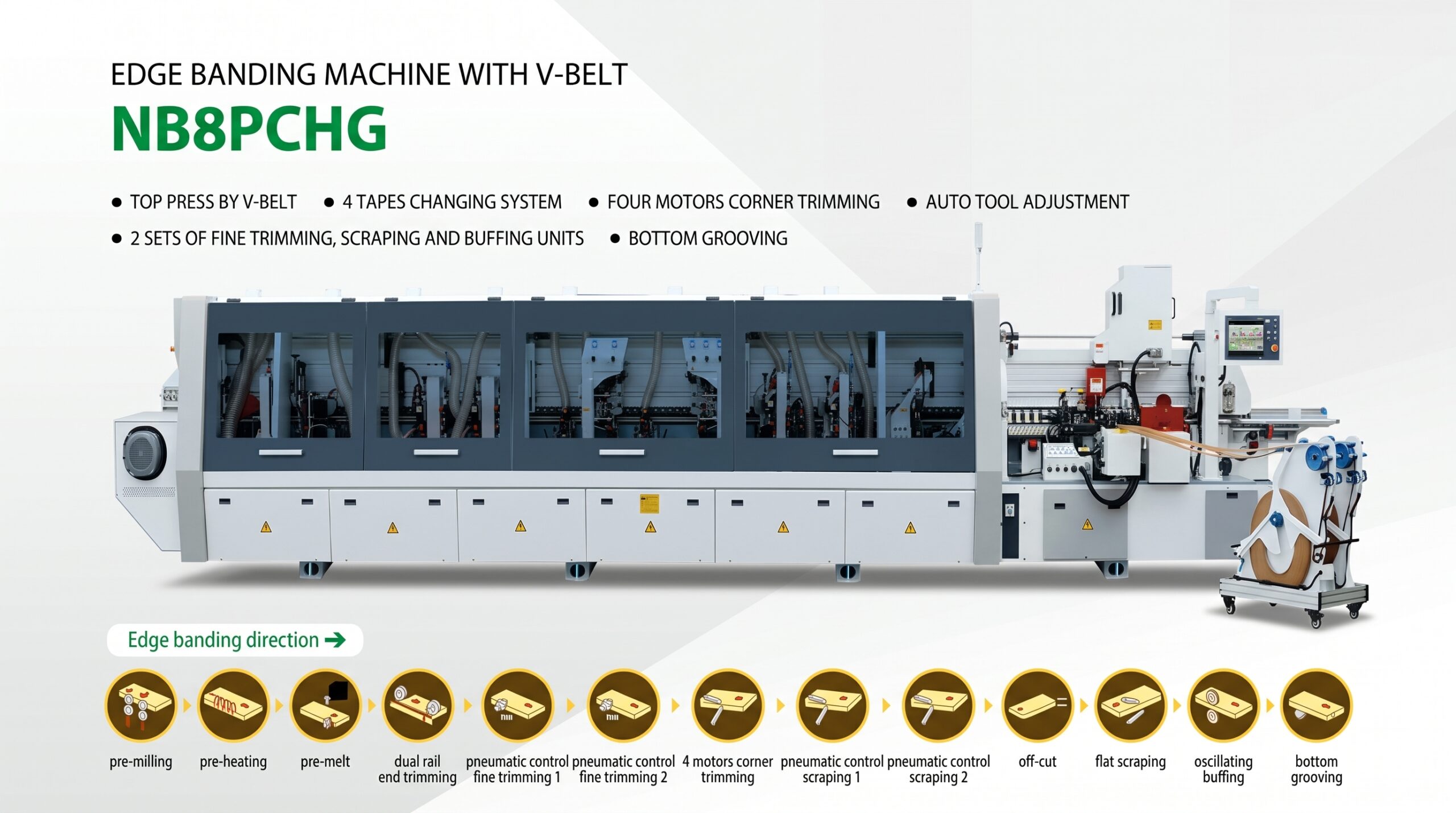

The NB8PCHG Edge Banding Machine with V-Belt is designed for high-efficiency edge banding and grooving of furniture panels. It combines edge banding and bottom grooving in one process, with optional side, top or skip-grooving configurations. The fiber-reinforced V-belt pressing system ensures stable, mark-free panel conveying, while the pre-melt gluing unit supports consistent adhesive application. A four-tape servo feeding system, adjustable fine trimming and scraping units, and four-motor corner trimming provide flexible processing of different edge tape thicknesses. The machine supports feeding speeds of 18, 22 and 26 m/min.
-
Minimum panel size: 200 × 80 mm (corner trimming enabled)
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Corner trimming speed: 22 m/min
-
Edge tape feeding: 4-tape servo system
-
Total power: 39.5 kW
Features
-
Integrated edge banding and grooving support multiple panel processing requirements in one pass.
-
Fiber-reinforced V-belt pressing ensures smooth conveying while reducing surface marks.
-
Pre-melt gluing and four-tape servo feeding improve adhesive preparation, tape positioning and material efficiency.
-
Dual adjustable fine trimming and scraping units enable quick switching between thin and thick edge tapes.
-
Four-motor corner trimming provides precise corner finishing at high production speeds.
Technical data
| Specifications | Unit | NB8PCHG |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel length with corner trimming | mm | ≥200 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size with corner trimming | mm | 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 |
| Feeding speed with corner trimming | m/min | 22 |
| Dust extraction | mm | Ø125 × 9 |
| Total power | kW | 39.5 |
| Overall dimensions (L × W × H) | mm | 10200 × 1450 × 1650 |
| Net weight | kg | 5460 |
