Highlights

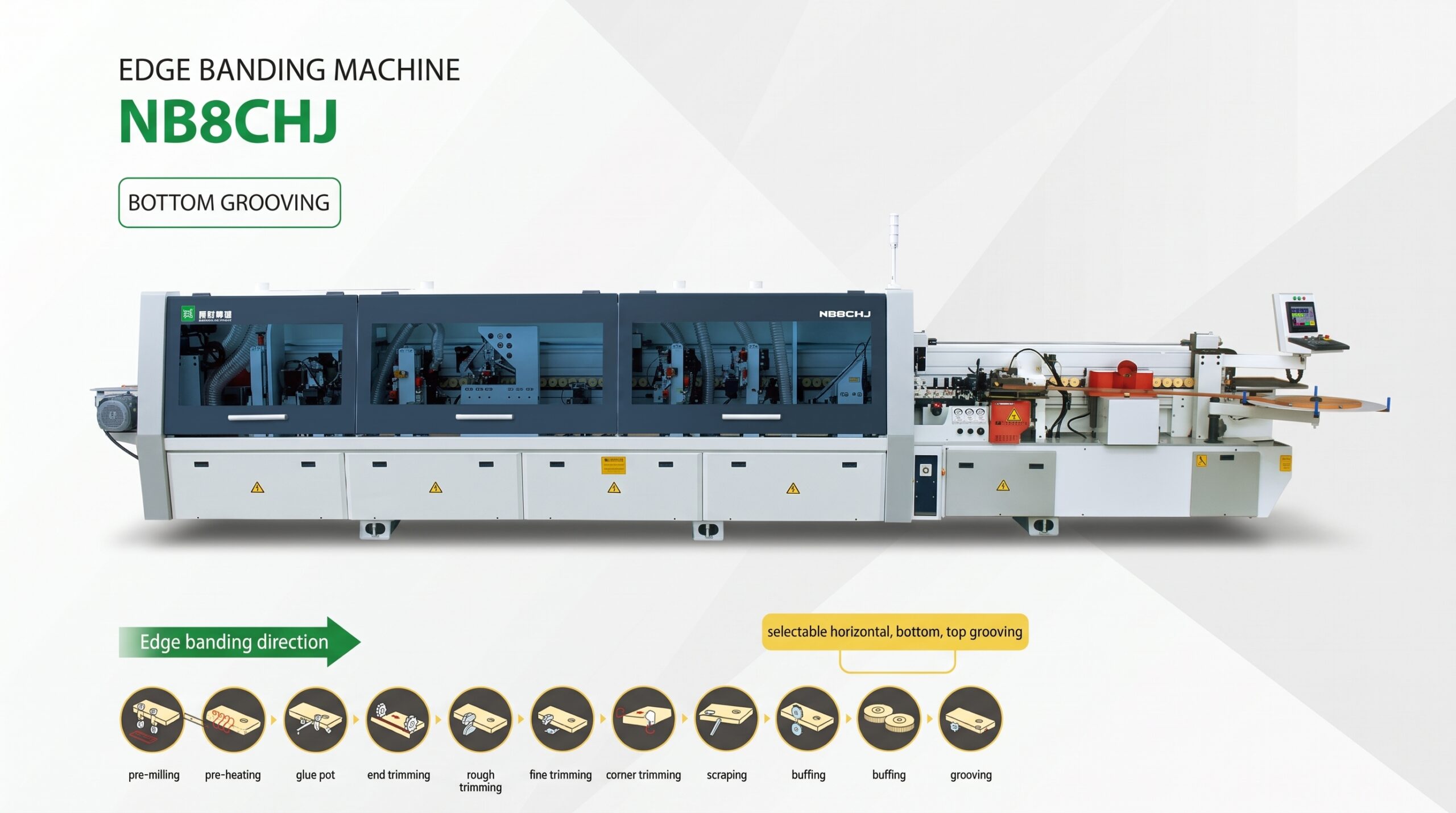

The NB8CHJ Edge Banding Machine is designed for edge banding and grooving of furniture panels, combining both operations in a single machine. Its heavy-duty machine body and CNC-machined mechanical components provide improved stability and longer service life while reducing deformation. The machine features a touchscreen interface, pre-milling, pre-heating, rough and fine trimming, and corner trimming units. Automatic standby and one-button wake-up functions support energy-saving operation, while major electrical components are sourced from internationally recognized brands. The NB8CHJ supports panel thicknesses of 9–60 mm, edge tape thicknesses of 0.4–3 mm and feeding speeds up to 24 m/min.
-
Minimum panel length: 120 mm (200 mm with corner trimming)
-
Minimum panel width: 80 mm
-
Minimum panel size: 120 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 16 / 20 / 24 m/min
-
Total power: 29.3 kW
Images
Features
-
Heavy-duty machine body with CNC-machined mechanical components provides improved stability, reduced deformation and longer service life.
-
Integrated edge banding and grooving functions allow both operations to be performed in one process.
-
Equipped with pre-milling, pre-heating, rough and fine trimming, and corner trimming units.
-
Automatic standby and one-button wake-up functions support energy-saving operation.
-
Touchscreen interface and electrical components from internationally recognized brands.
Technical data
| Specifications | Unit | NB8CHJ |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel length (corner trimming on) | mm | ≥200 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size | mm | 120 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 16 / 20 / 24 |
| Feeding speed (corner trimming on) | m/min | Not specified |
| Dust extraction | mm | Ø125 × 5 |
| Total power | kW | 29.3 |
| Overall dimensions (L × W × H) | mm | 8260 × 1050 × 1650 |
| Net weight | kg | 2980 |
