Highlights

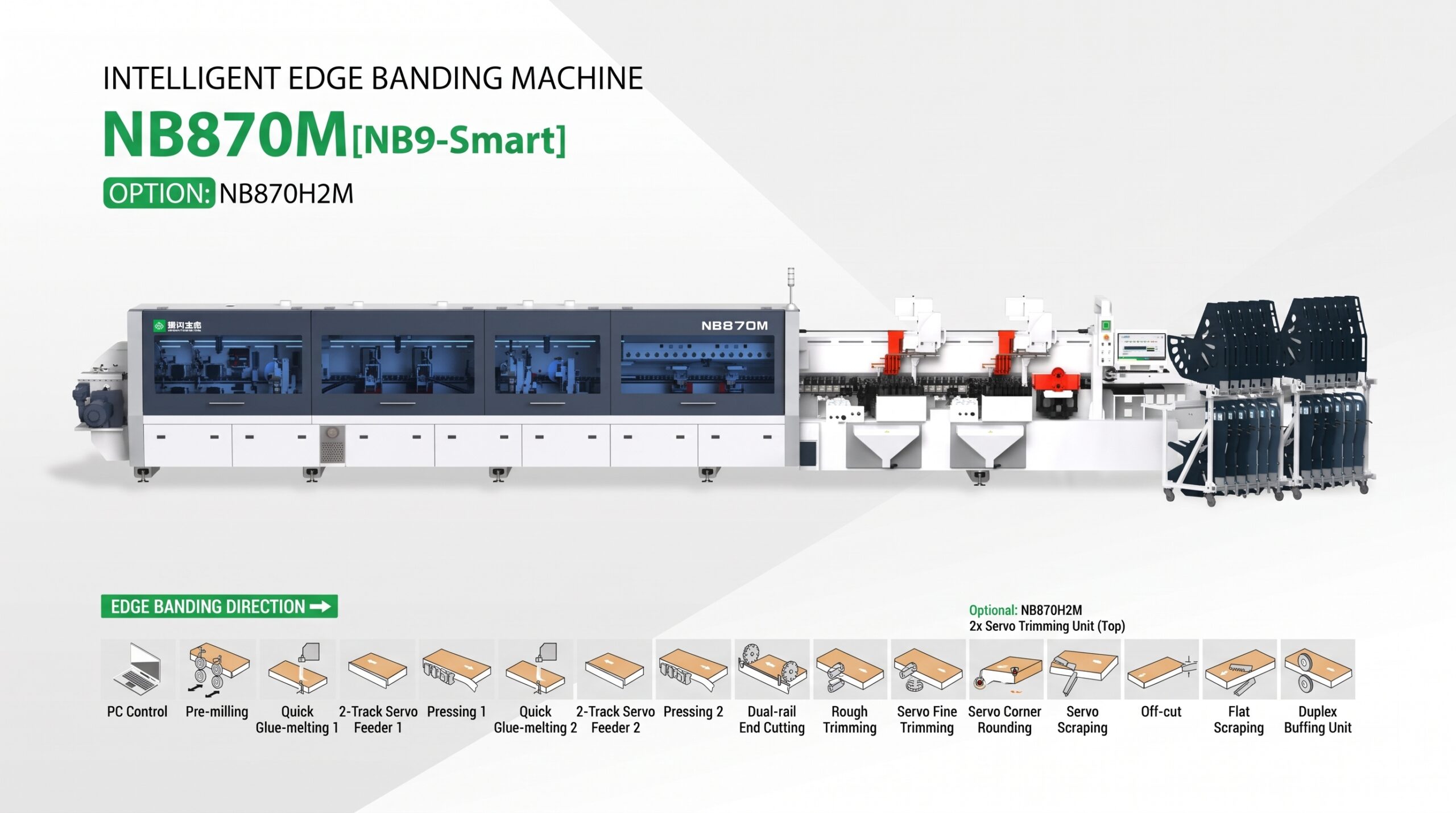

The NB870M (NB9-Smart) Intelligent Edge Banding Machine is designed for automatic edge banding of furniture panels in industrial woodworking production. It accommodates 9–60 mm panel thickness and 0.4–3 mm edge tape, supporting different furniture manufacturing requirements. The machine offers three feeding speeds of 18, 22 and 26 m/min, with corner trimming operation at 22 m/min. Its industrial configuration includes 53 kW total power, seven dust extraction connections and a 10,000 kg machine structure for continuous panel processing.
-
Minimum panel size: 120 × 120 / 200 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Feeding speed with corner trimming: 22 m/min
-
Total power: 53 kW
-
Net weight: 10,000 kg
Features
-
Intelligent automatic edge banding for industrial furniture and panel production.
-
Three selectable feeding speeds of 18, 22 and 26 m/min accommodate different processing requirements.
-
Corner trimming operation supports continuous edge finishing at 22 m/min.
-
Flexible panel compatibility accommodates 9–60 mm panel thickness and 0.4–3 mm edge tape.
-
Seven Ø125 mm dust extraction connections support dust removal during edge processing.
Technical data
| Specifications | Unit | NB870M |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size | mm | 120 × 120 / 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 |
| Feeding speed with corner trimming | m/min | 22 |
| Dust extraction | mm | Ø125 × 7 |
| Total power | kW | 53 |
| Overall dimensions (L × W × H) | mm | 11500 × 900 × 1900 |
| Net weight | kg | 10000 |
