Highlights

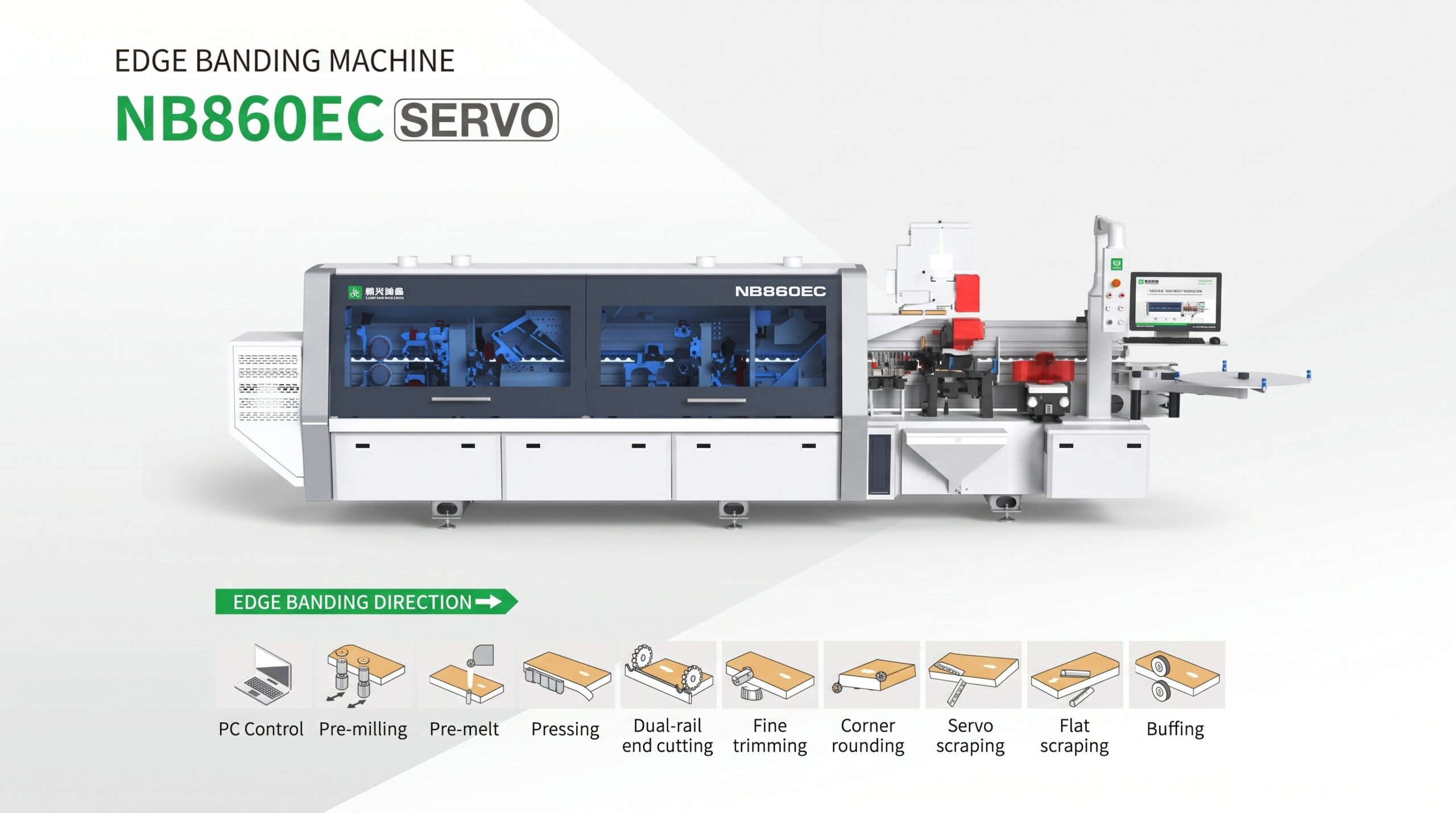

The NB860EC Automatic Edge Banding Machine is designed for precision edge banding of furniture panels, including pre-drilled nesting panels. It integrates pre-milling, pre-heating, gluing, end trimming, fine trimming, corner rounding, scraping and buffing into one continuous process. The intelligent PC control system provides servo adjustment of the infeed fence, tape pressing rollers, fine trimming and scraping units, while pneumatic adjustment supports corner rounding. A rigid, CNC-machined machine structure ensures stable operation and long service life, with feeding speeds of 16, 20 and 24 m/min.
-
Minimum panel length: 120 mm (200 mm for corner rounding)
-
Minimum panel width: 60 mm
-
Minimum panel size: 120 × 120 / 120 × 60 / 200 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 16 / 20 / 24 m/min
-
Total power: 22 kW
Video
Features
-
Integrated edge banding process combines pre-milling, pre-heating, gluing, trimming, scraping and buffing.
-
Intelligent PC control with servo adjustment provides precise positioning of the infeed fence, pressing rollers, trimming and scraping units.
-
Pneumatic corner rounding adjustment supports flexible panel edge finishing.
-
Nesting-friendly design accommodates panels with pre-drilled nesting holes.
-
Rigid CNC-machined construction improves machine stability and durability.
Technical data
| Specifications | Unit | NB860EC |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum length for corner rounding | mm | ≥200 |
| Minimum panel width | mm | ≥60 |
| Minimum panel size | mm | 120 × 120 / 120 × 60 / 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 16 / 20 / 24 |
| Total power | kW | 22 |
| Overall dimensions (L × W × H) | mm | 5930 × 1450 × 1650 |
| Net weight | kg | 3000 |
