Highlights

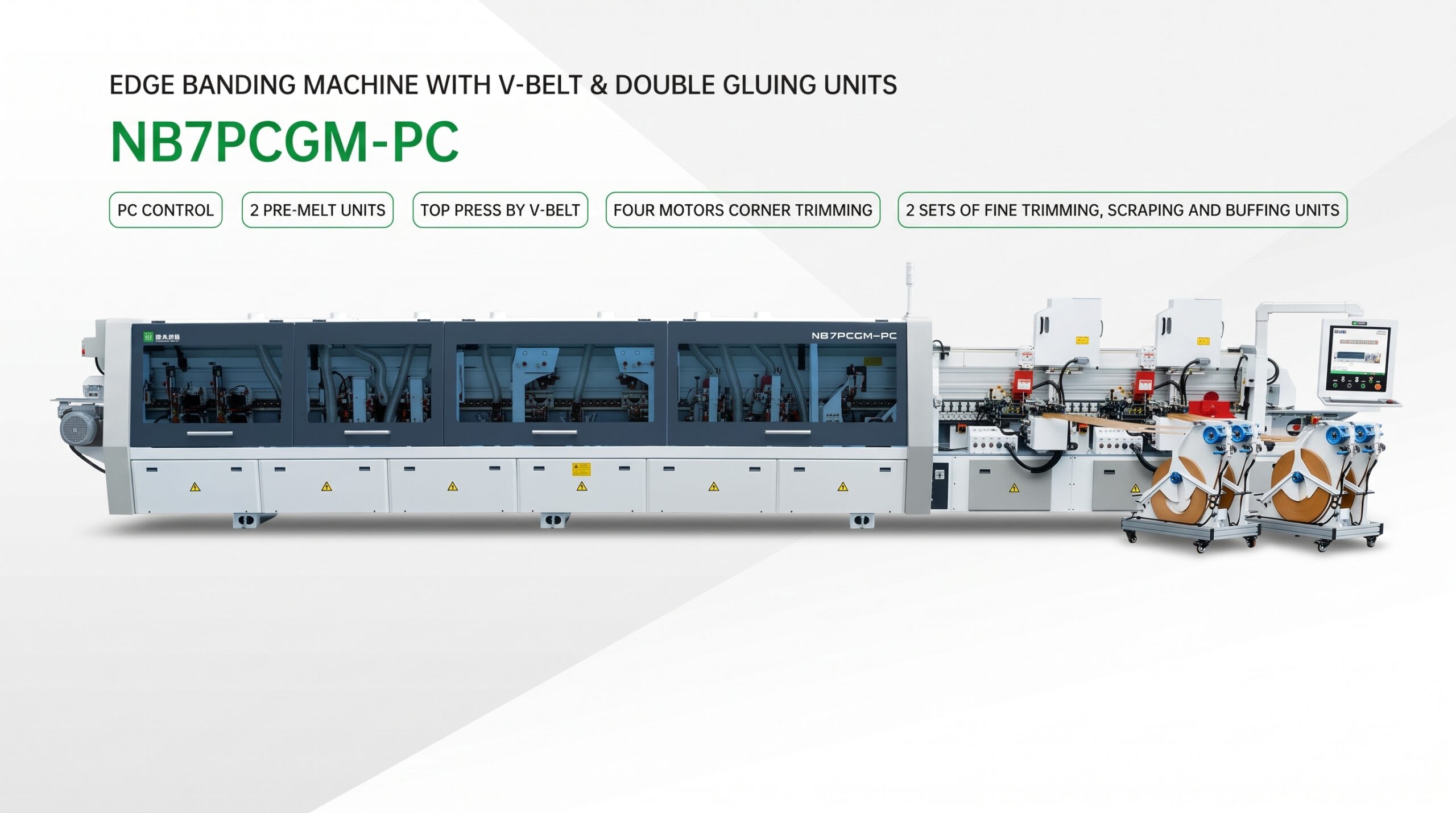

The NB7PCGM-PC Edge Banding Machine with V-Belt and Dual Gluing Units is designed for efficient edge banding of furniture panels. It features two pre-melt gluing units, allowing quick switching between two adhesive colors to match different edge tapes, with optional PUR compatibility. The intelligent PC control system provides a user-friendly interface, supporting machine adjustment through QR code scanning with a barcode reader. The machine processes 9–60 mm thick panels and 0.4–3 mm edge tapes, with feeding speeds of 18, 22 and 26 m/min for flexible industrial furniture production.
-
Minimum panel size: 200 × 80 mm (corner trimming enabled)
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Corner trimming speed: 22 m/min
-
Gluing system: 2 pre-melt units, optional PUR
-
Total power: 42 kW
Features
-
Dual pre-melt gluing units enable quick switching between two adhesive colors, with optional PUR gluing.
-
Intelligent PC control provides a user-friendly operating interface and machine status monitoring.
-
QR code and barcode-based adjustment simplify machine setup for different production requirements.
-
V-belt edge banding system supports continuous processing of furniture panels at selectable feeding speeds.
-
Corner trimming operation supports panel edge finishing at a feeding speed of 22 m/min.
Technical data
| Specifications | Unit | NB7PCGM-PC |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum length with corner trimming | mm | ≥200 |
| Minimum panel width | mm | ≥80 |
| Minimum size with corner trimming | mm | 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 |
| Corner trimming feeding speed | m/min | 22 |
| Pre-melt gluing units | pcs | 2 |
| PUR gluing | — | Optional |
| Dust extraction | mm | Ø125 × 8 |
| Total power | kW | 42 |
| Overall dimensions (L × W × H) | mm | 11200 × 1050 × 1850 |
| Net weight | kg | 6110 |
