Highlights

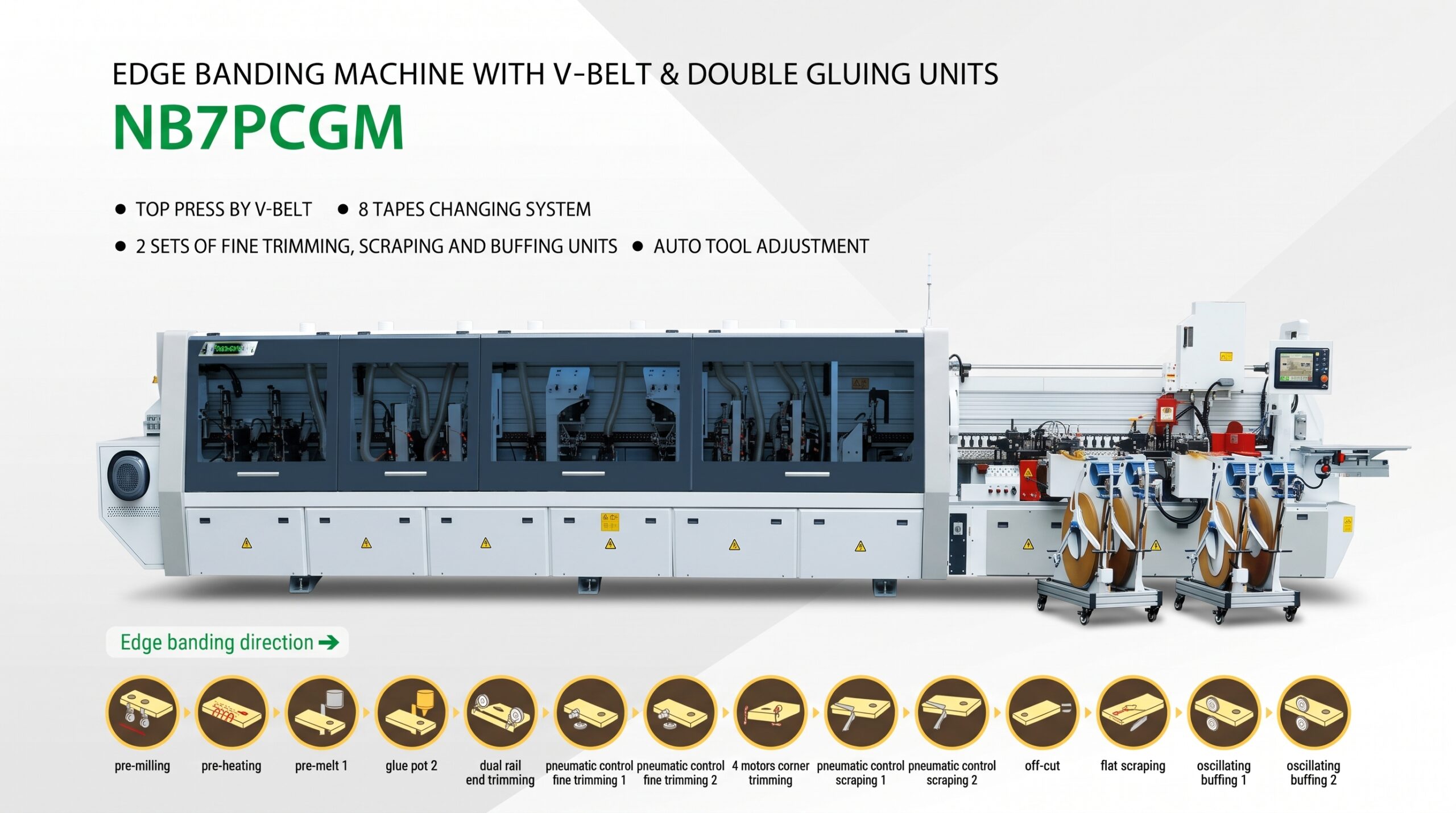

The NB7PCGM Edge Banding Machine with V-Belt and Double Gluing Units is designed for precision edge banding of furniture panels. It features two gluing units, including a glue pot and a pre-melt system, allowing quick switching between two adhesive colors, with optional PUR compatibility. Its fiber-reinforced V-belt pressing system provides stable, mark-free panel conveying. An 8-tape servo feeding system supports flexible edge tape selection, while adjustable fine trimming, scraping and four-motor corner trimming provide consistent edge finishing. A Standard configuration with two-tape changing is also available.
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Corner trimming speed: 22 m/min
-
Edge tape feeding: 8-tape servo system
-
Total power: 37 kW
Features
-
Dual gluing units support two adhesive colors, pre-melting and optional PUR gluing.
-
Fiber-reinforced V-belt pressing ensures stable conveying while minimizing panel surface marks.
-
8-tape servo feeding system enables precise tape positioning, quick selection and reduced material waste.
-
Dual adjustable fine trimming and scraping units allow fast switching between different edge tape thicknesses.
-
Four-motor corner trimming and dual buffing units provide smooth corners and consistent edge finishing.
Technical data
| Specifications | Unit | NB7PCGM |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum length with corner trimming | mm | ≥200 |
| Minimum panel width | mm | ≥80 |
| Minimum size with corner trimming | mm | 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 |
| Corner trimming feeding speed | m/min | 22 |
| Gluing units | pcs | 2 |
| PUR gluing | — | Optional |
| Edge tape feeding | tapes | 8 (Standard: 2) |
| Dust extraction | mm | Ø125 × 8 |
| Total power | kW | 37 |
| Overall dimensions (L × W × H) | mm | 11200 × 1050 × 1850 |
| Net weight | kg | 6110 |
