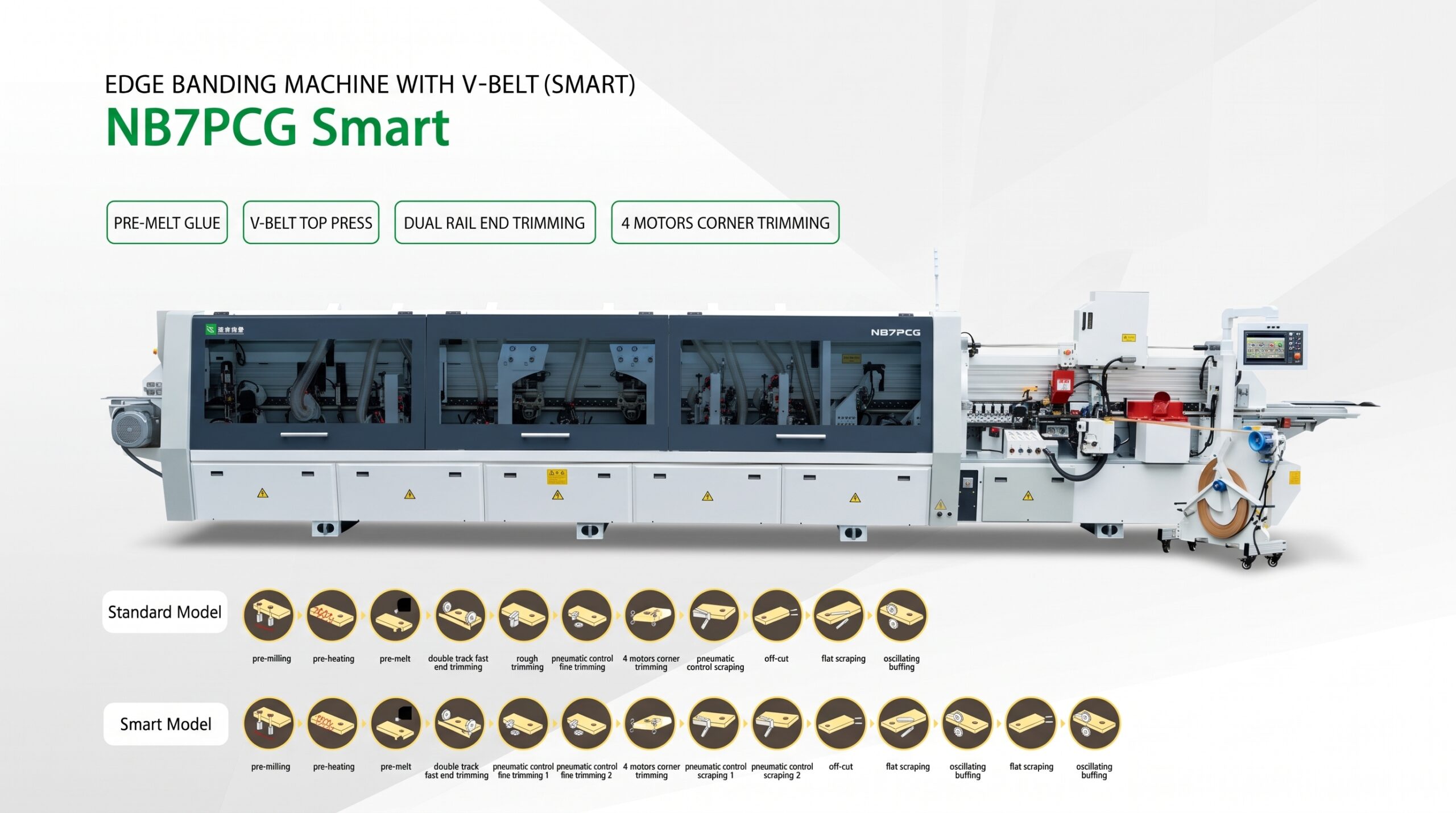

NB7PCG Edge Banding Machine with V-Belt

Highlights

The NB7PCG Edge Banding Machine with V-Belt is designed for precision edge banding of furniture panels. Its fiber-reinforced V-belt pressing system provides stable, mark-free conveying, while the pre-melt gluing unit improves adhesive preparation and bonding consistency. A four-tape servo feeding system supports efficient edge tape changes and reduces material waste. Dual adjustable fine trimming and scraping units allow quick switching between thin and thick edge tapes, while four-motor corner trimming provides accurate edge finishing. The machine is available in Smart and Standard configurations, with feeding speeds up to 26 m/min.

• Minimum panel size: 200 × 80 mm (corner trimming enabled)

• Panel thickness: 9–60 mm

• Edge tape thickness: 0.4–3 mm

• Feeding speed: 18 / 22 / 26 m/min

• Corner trimming speed: 22 m/min

• Edge tape feeding: 4-tape servo system

• Total power: 30 kW

Features

• Fiber-reinforced V-belt pressing ensures stable panel conveying while minimizing surface marks.

• Pre-melt gluing system reduces heating time and helps maintain consistent adhesive quality.

• Four-tape servo feeding system enables quick tape selection and precise feeding with reduced waste.

• Dual adjustable fine trimming and scraping units support efficient switching between different edge tape thicknesses.

• Four-motor corner trimming provides precise corner finishing for furniture panels.



Technical data
