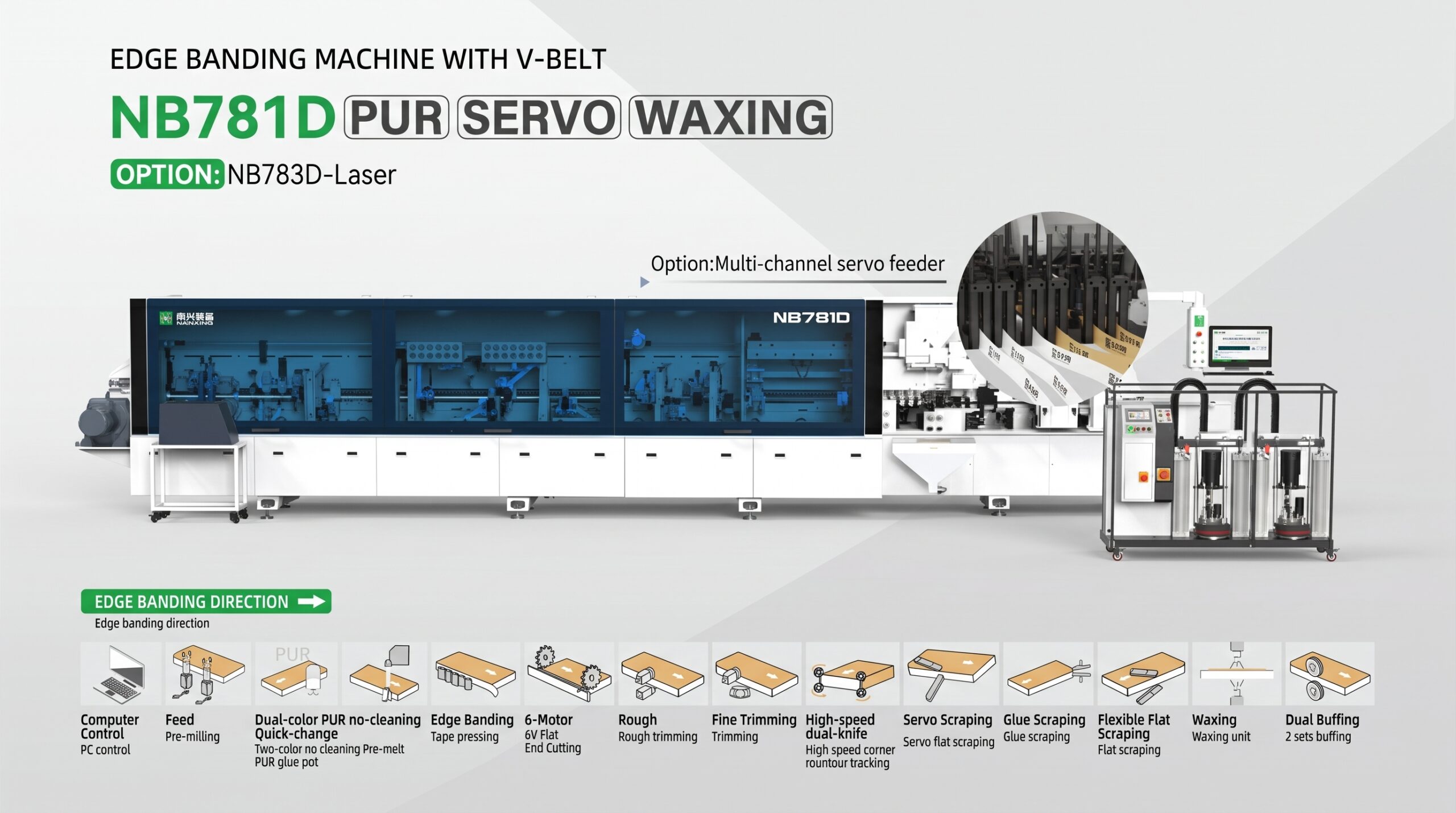

NB781D Edge Banding Machine with V-Belt

Highlights

The NB781D Edge Banding Machine with V-Belt is designed for precision edge banding of furniture panels, notched edges and skeleton door frames. It features a dual glue pot system with PUR gluing and pre-melting, supporting different edge band colors with reduced cleaning during changeovers. The machine integrates servo-controlled end cutting, high-speed four-motor corner rounding, precision edge scraping, and reciprocating buffing and waxing. Its intelligent PC-based control system supports parameter presets and automatic process selection, while optional laser edge banding and barcode scanning provide additional production flexibility. A rigid welded steel frame and integrated dust extraction system support stable industrial operation.

• Minimum panel size: 300 × 40 mm

• Panel thickness: 8–60 mm

• Edge tape thickness: 0.4–3 mm

• Feeding speed: 18 / 22 / 26 m/min

• Total power: 40.5 kW

• Overall dimensions: 10100 × 1050 × 1850 mm

• Net weight: 6150 kg



Features

• Dual glue pot system supports PUR gluing, pre-melting and mixed-color edge banding, with optional laser edge banding.

• Servo-controlled end cutting and four-motor corner rounding provide accurate trimming and smooth panel corners at high feeding speeds.

• Servo-controlled edge scraping and reciprocating buffing improve edge finishing consistency and reduce polishing wheel wear.

• Intelligent PC control supports parameter presets, one-touch process selection and optional barcode-based automatic adjustments.

• Rigid welded steel frame and integrated safety systems combine temperature control, dust extraction and explosion-proof alarm monitoring.
