Highlights

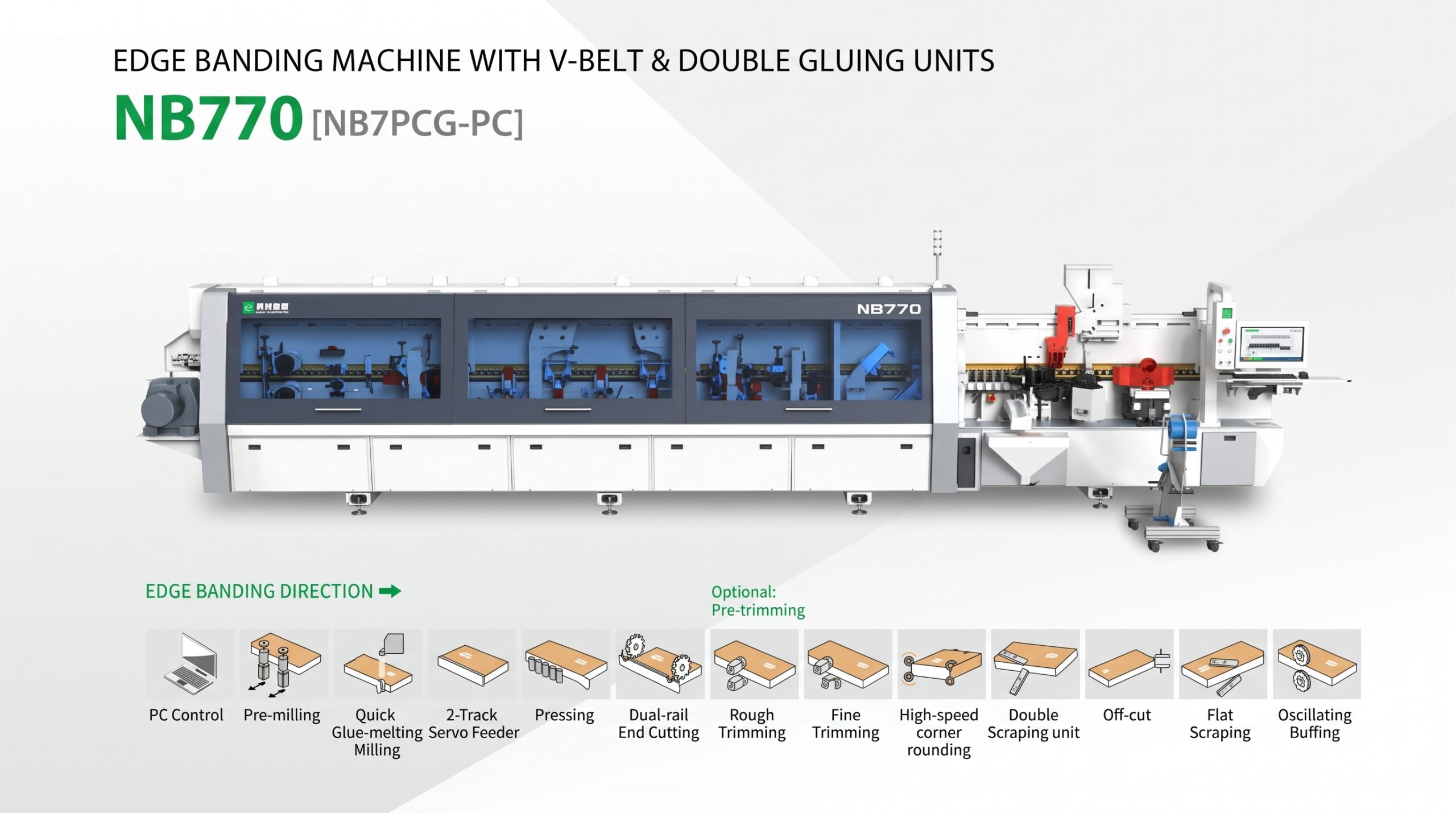

The NB770 Edge Banding Machine with V-Belt is designed for high-efficiency edge banding of furniture panels. It integrates fine trimming, edge scraping and buffing with automatic tool adjustment to achieve consistent edge finishing in a single pass. The V-belt pressing system provides stable panel conveying, while a large pre-melt glue tank supports continuous operation. An automatic edge tape changing system allows quick selection between two edge tape thicknesses, improving production flexibility for different panel requirements.
-
Minimum panel size: 120 × 120 / 200 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Total power: 30 kW
-
Overall dimensions: 9650 × 1450 × 1650 mm
-
Edge tape changing: Automatic, two thickness options
Features
-
Single-pass edge banding integrates multiple finishing operations for continuous panel processing.
-
Automatic tool adjustment supports precise fine trimming, scraping and buffing.
-
V-belt pressing system maintains stable panel conveying and consistent pressure.
-
Large pre-melt glue tank provides sufficient adhesive for continuous high-speed operation.
-
Automatic edge tape changing enables quick selection between two different edge tape thicknesses.
Technical data
| Specifications | Unit | NB770 |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size | mm | 120 × 120 / 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 |
| Total power | kW | 30 |
| Overall dimensions (L × W × H) | mm | 9650 × 1450 × 1650 |
