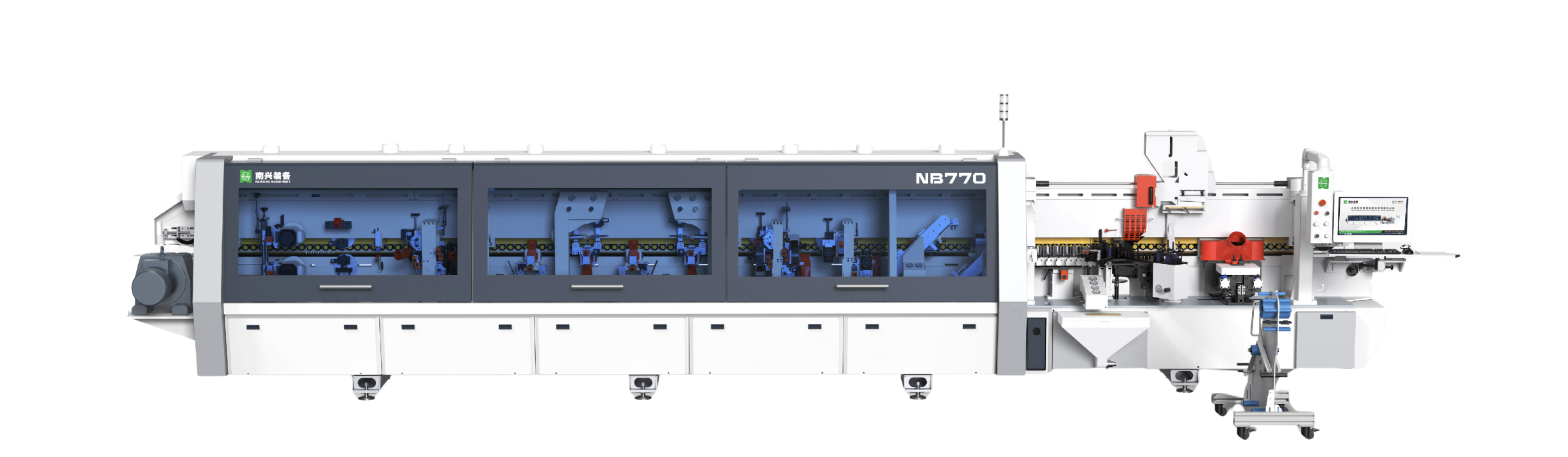

NB770 Edge Banding Machine with V-belt & Double Gluing Units
Product Overview
The NB770 is a full-function edge banding machine designed for high-precision panel furniture production.
Equipped with a V-belt pressing system and dual glue units, this model ensures stable feeding, excellent adhesion, and efficient operation in one continuous pass.
The machine supports pre-milling, dual-rail end cutting, fine trimming, scraping, and buffing — all automatically adjusted for optimal edge finishing.
It is an ideal solution for manufacturers seeking reliability, speed, and smooth edge appearance in panel processing.
Highlights
-
Full-function edge banding work completed in just one pass.
-
Fine trimming, scraping, and buffing units with automatic tool adjustment for perfect finish.
-
Panels are evenly pressed by V-belt to maximize feeding stability.
-
Large pre-melt tank provides continuous glue supply for fast production.
-
Automatic edge tape changing system allows quick selection between two tape thickness options.
| Model | NB770 |
|---|---|
| Panel Length | ≥120 mm |
| Panel Width | ≥80 mm |
| Minimum Panel Size | 120 × 120 mm / 200 × 80 mm |
| Panel Thickness | 9 – 60 mm |
| Edge Tape Thickness | 0.4 – 3 mm |
| Feeding Speed | 18 / 22 / 26 m / min |
| Total Power | 30 kW |
| Overall Dimension | 9650 × 1450 × 1650 mm |
