Highlights

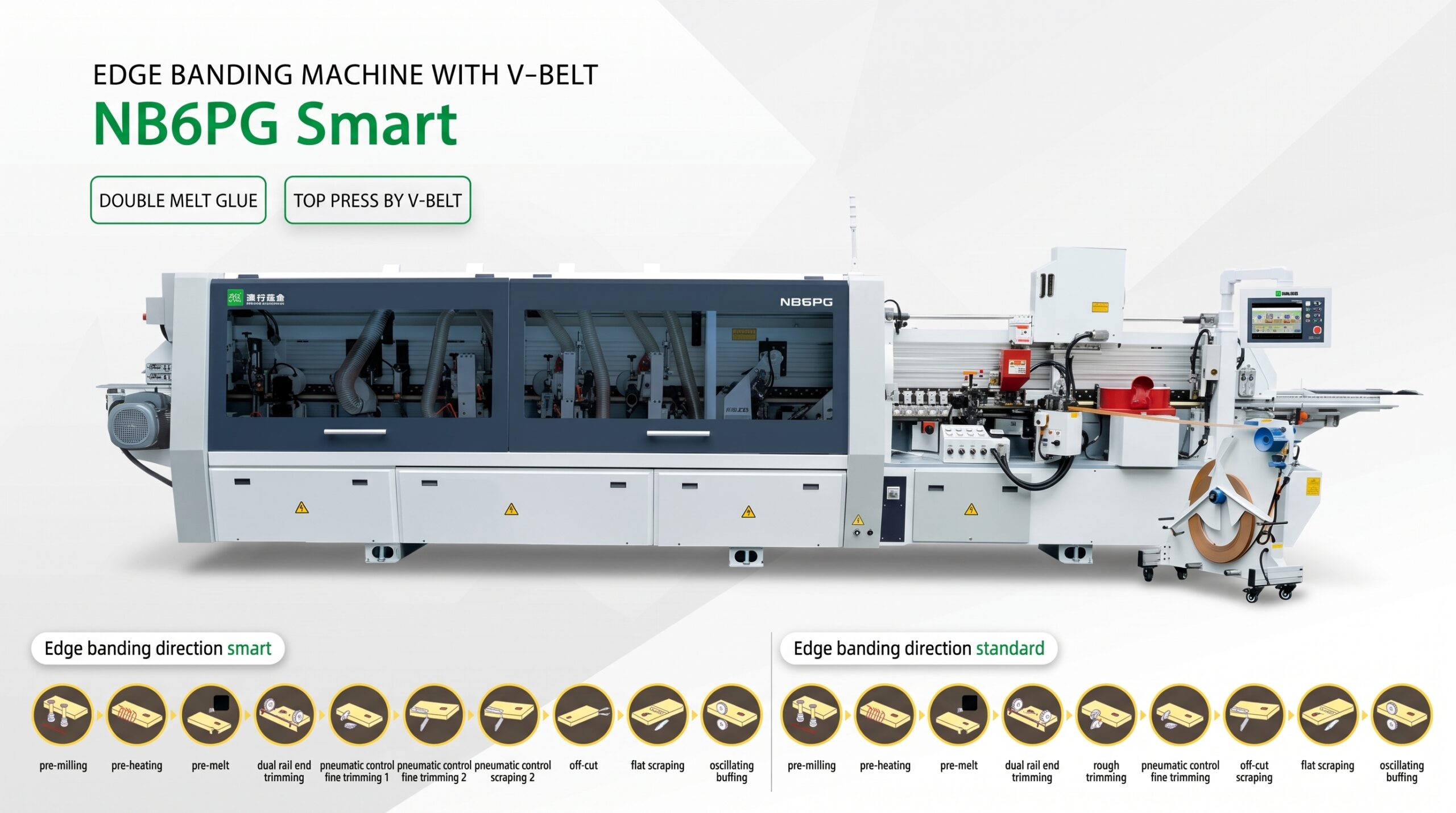

The NB6PG Smart Edge Banding Machine with V-Belt is designed for automatic edge banding of furniture panels. Its fiber-reinforced V-belt pressing system ensures stable, mark-free panel conveying, while the pre-melt gluing unit reduces heating time and improves adhesive bonding. The Smart configuration features a four-tape servo feeding system for precise tape positioning and reduced material waste. Dual adjustable fine trimming and scraping units allow quick switching between thin and thick edge tapes. The machine also offers a Standard configuration with a two-tape changing system, supporting different production requirements.
-
Minimum panel size: 120 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 18 / 22 / 26 m/min
-
Edge tape changing: 4 tapes (Smart) / 2 tapes (Standard)
-
Total power: 28 kW
-
Net weight: 4,340 kg
Features
-
Fiber-reinforced V-belt pressing ensures smooth conveying while preventing surface marks.
-
Pre-melt gluing system reduces heating time and minimizes adhesive carbonization.
-
Four-tape servo feeding system provides accurate edge tape positioning and reduces material waste.
-
Dual adjustable fine trimming and scraping units support quick switching between different tape thicknesses.
-
Standard configuration option includes two-tape changing, rough trimming, fine trimming and scraping units.
Technical data
| Specifications | Unit | NB6PG Smart | NB6PG Standard |
|---|---|---|---|
| Minimum panel length | mm | ≥120 | ≥120 |
| Minimum panel width | mm | ≥80 | ≥80 |
| Minimum panel size | mm | 120 × 80 | 120 × 80 |
| Panel thickness | mm | 9–60 | 9–60 |
| Edge tape thickness | mm | 0.4–3 | 0.4–3 |
| Feeding speed | m/min | 18 / 22 / 26 | 18 / 22 / 26 |
| Edge tape changing | tapes | 4 | 2 |
| Dust extraction | mm | Ø125 × 6 | Ø125 × 5 |
| Total power | kW | 28 | 28 |
| Overall dimensions (L × W × H) | mm | 8600 × 1050 × 1850 | 8600 × 1050 × 1850 |
| Net weight | kg | 4340 | 4340 |
