Highlights

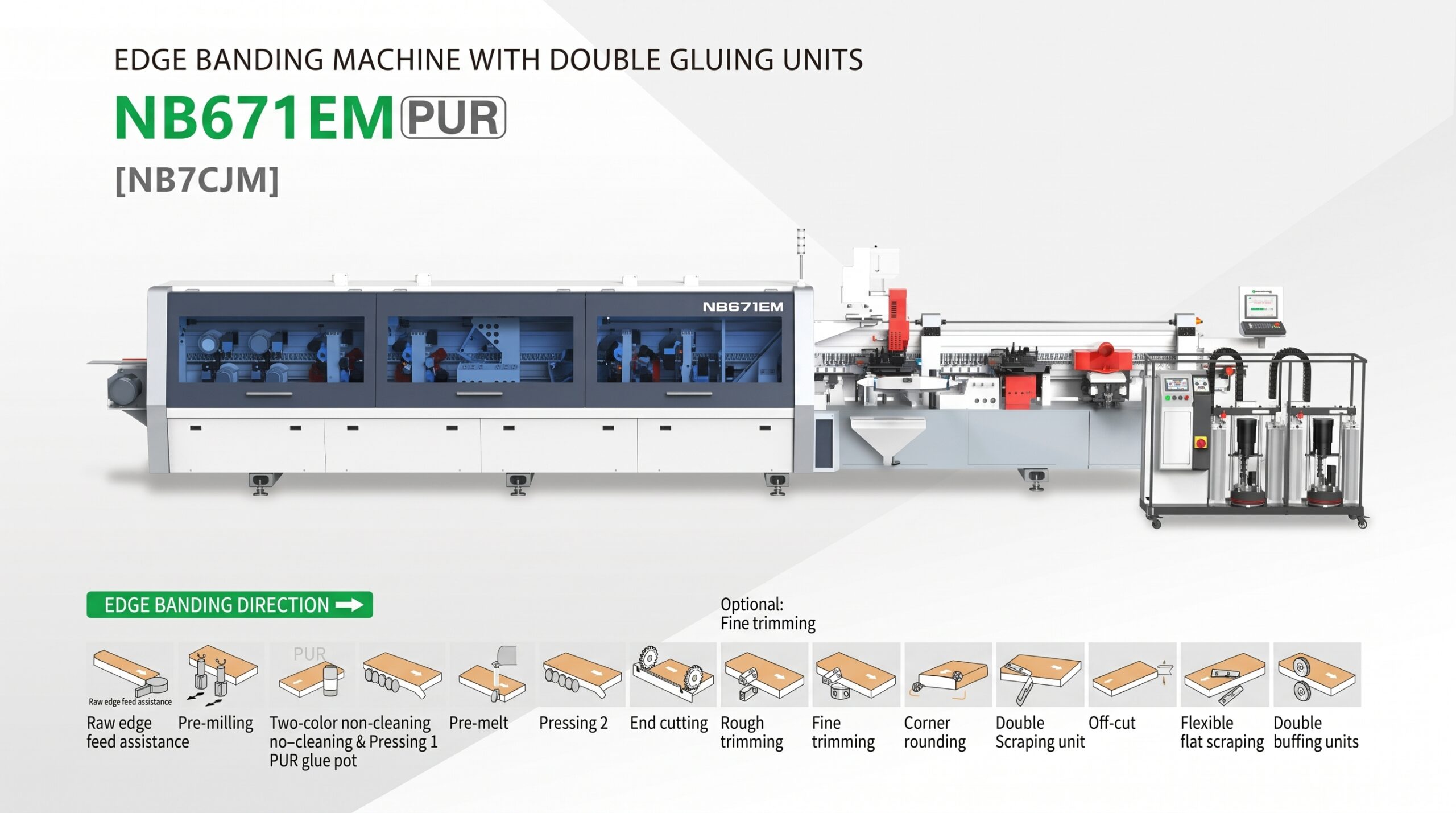

The NB671EM (NB7CJM) Edge Banding Machine with Double Gluing Units is designed for flexible edge banding of furniture panels. It features two sets of gluing, fine trimming, scraping and buffing units, allowing quick switching between dark and light adhesive colors. When changing glue colors, the corresponding trimming and scraping cutters automatically retract to minimize setup time. An additional front pre-milling unit prepares panel edges before banding, while the heavy-duty machine structure and CNC-machined mechanical components improve stability and durability. The machine supports 9–60 mm panel thickness, 0.4–3 mm edge tape and feeding speeds up to 24 m/min.
-
Minimum panel length: 120 mm
-
Minimum panel width: 80 mm
-
Minimum panel size: 200 × 80 mm
-
Panel thickness: 9–60 mm
-
Edge tape thickness: 0.4–3 mm
-
Feeding speed: 16 / 20 / 24 m/min
-
Total power: 30 kW
Video
Features
-
Dual gluing units enable quick switching between dark and light adhesives for flexible edge banding.
-
Front pre-milling unit prepares panel edges before adhesive application.
-
Dual fine trimming and scraping units automatically retract during glue-color changes, minimizing setup time.
-
Dual buffing units support consistent edge finishing for different adhesive colors.
-
Heavy-duty machine construction with CNC-machined mechanical components provides improved stability and long service life.
Technical data
| Specifications | Unit | NB671EM |
|---|---|---|
| Minimum panel length | mm | ≥120 |
| Minimum panel width | mm | ≥80 |
| Minimum panel size | mm | 200 × 80 |
| Panel thickness | mm | 9–60 |
| Edge tape thickness | mm | 0.4–3 |
| Feeding speed | m/min | 16 / 20 / 24 |
| Gluing units | pcs | 2 |
| Fine trimming units | sets | 2 |
| Scraping units | sets | 2 |
| Buffing units | sets | 2 |
| Total power | kW | 30 |
| Overall dimensions (L × W × H) | mm | 9800 × 1050 × 1650 |
| Net weight | kg | 3670 |
