Highlights

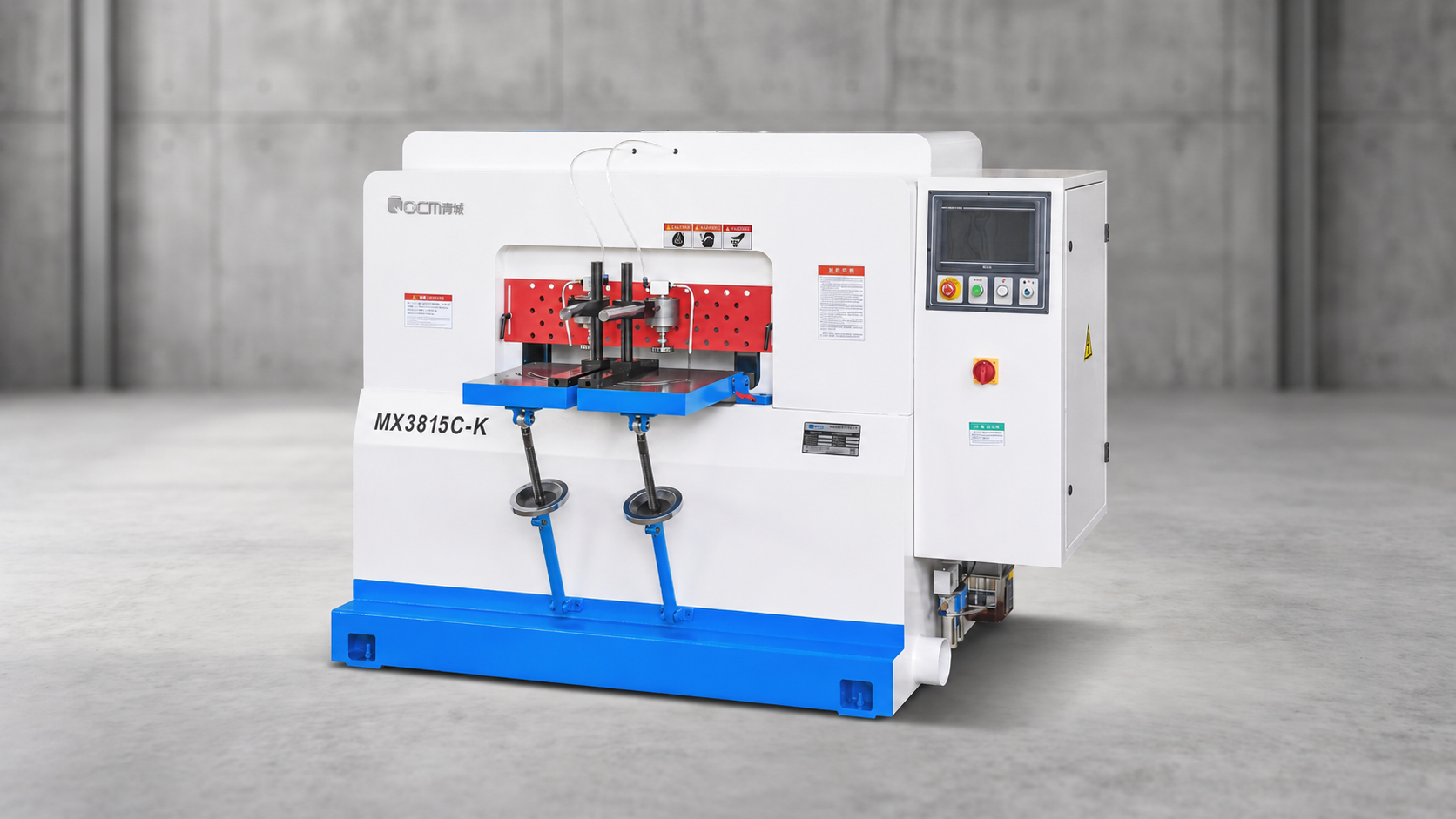

The MXK3815C-K Mortising Machine is designed for high-efficiency machining of solid wood furniture components, including parts for dining tables and chairs. Its servo-driven ball-screw system supports multiple tenon configurations, including horizontal, vertical, round, miter, rounded-corner and bevel tenons. An integral cast sliding base, high-precision spindle, adjustable worktable fence and automatic lubrication system provide stable machining accuracy, smooth movement and reliable performance for continuous furniture production.
- Maximum horizontal round tenon width: 140 mm
- Maximum horizontal round tenon thickness: 80 mm
- Maximum vertical round tenon width: 80 mm
- Maximum vertical round tenon thickness: 80 mm
- Maximum round tenon diameter: Ø80 mm
- Spindle speed: 8,500 r/min
- Total motor power: 5 kW
Images
Features
- Servo-driven ball-screw transmission enables machining of horizontal, vertical, round, miter, rounded-corner, four-corner, single-bevel and double-bevel tenons.

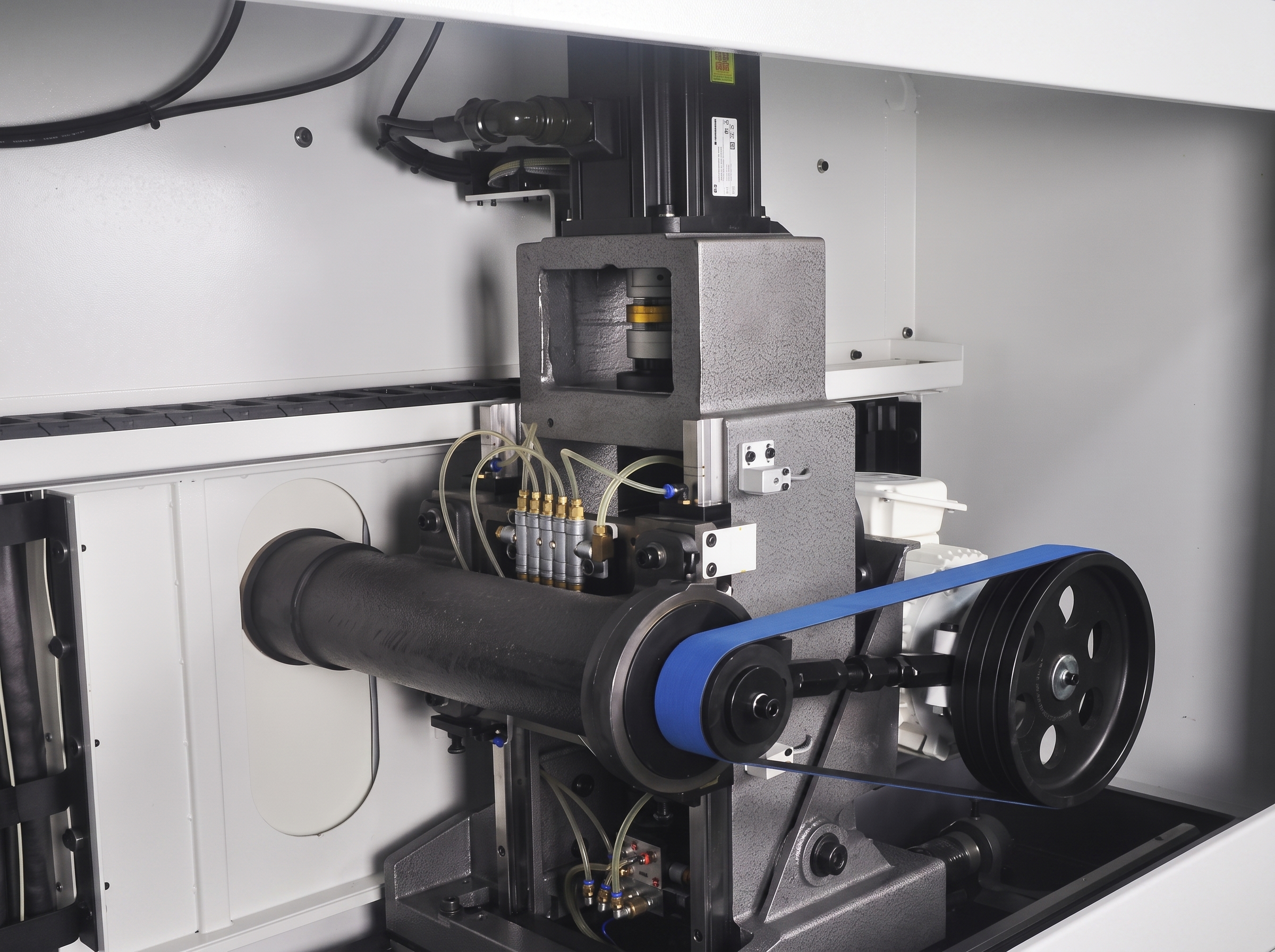

- The main sliding base uses an integral cast structure combined with a high-precision spindle for stable and reliable machining performance.

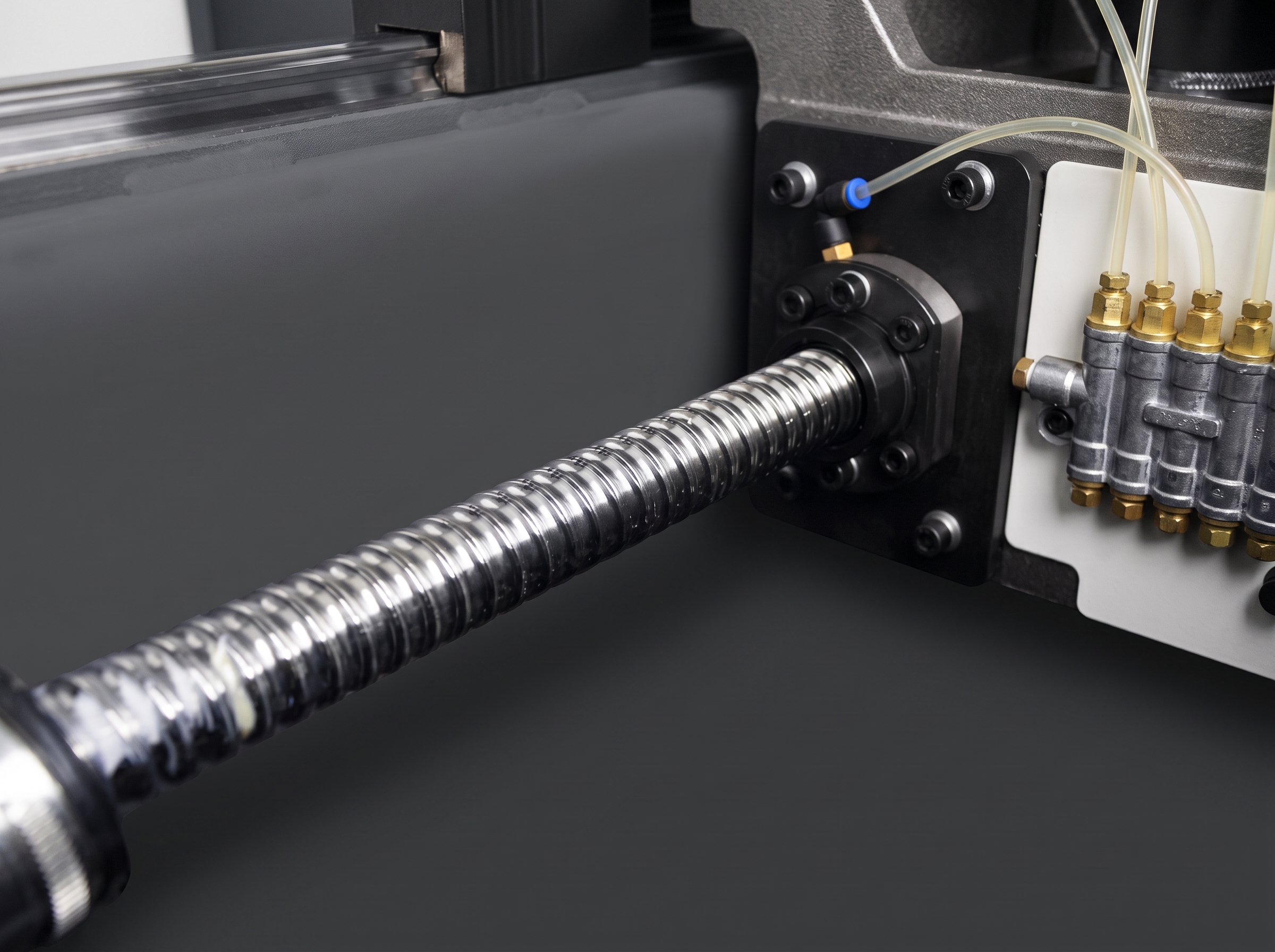

- International-brand ball screws provide smooth movement, stable transmission and long service life while supporting consistent machining quality.

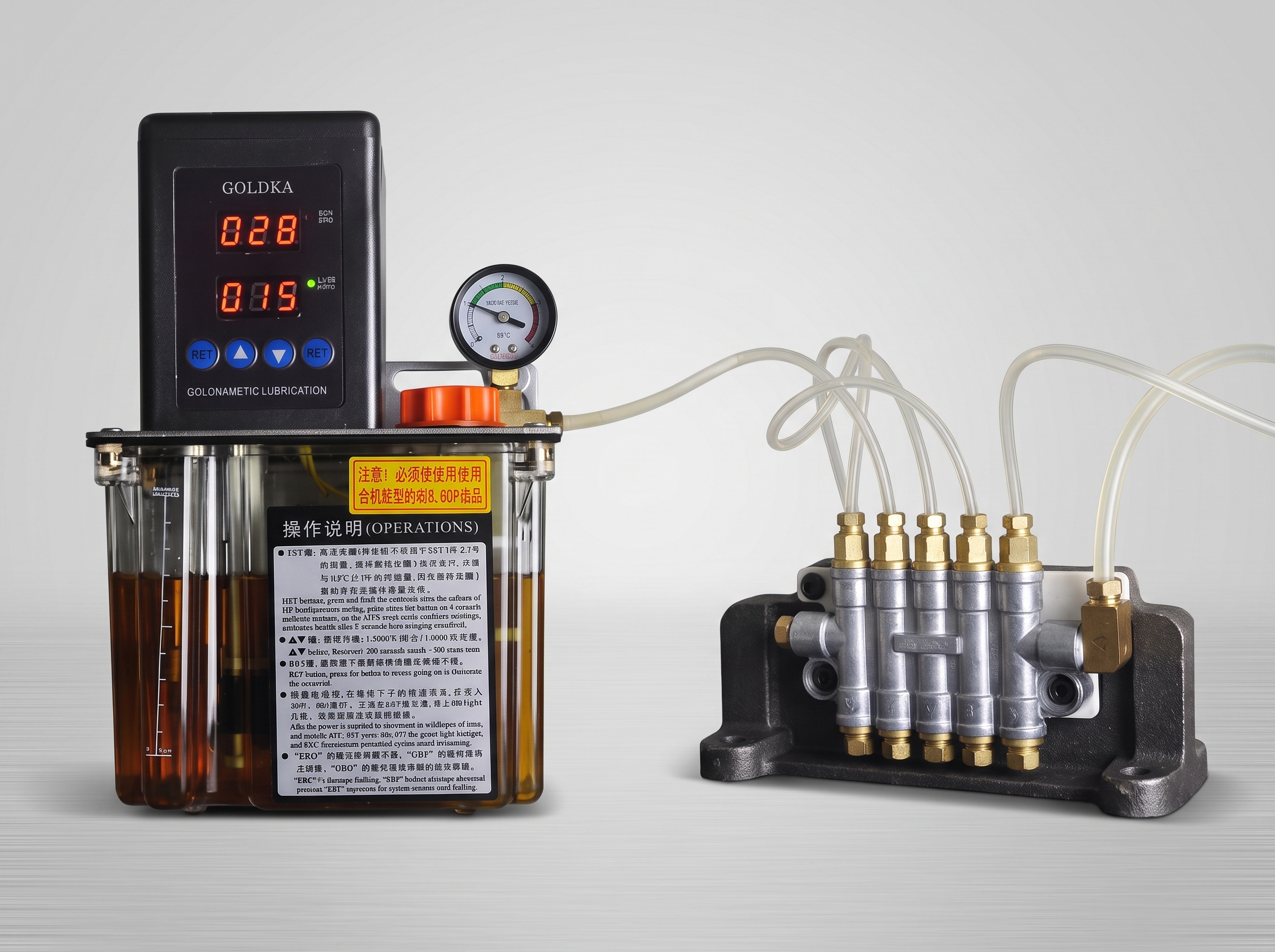

- An intermittent microcomputer lubrication pump with proportional distributor automatically lubricates sliding blocks and ball screws to support reliable continuous operation.

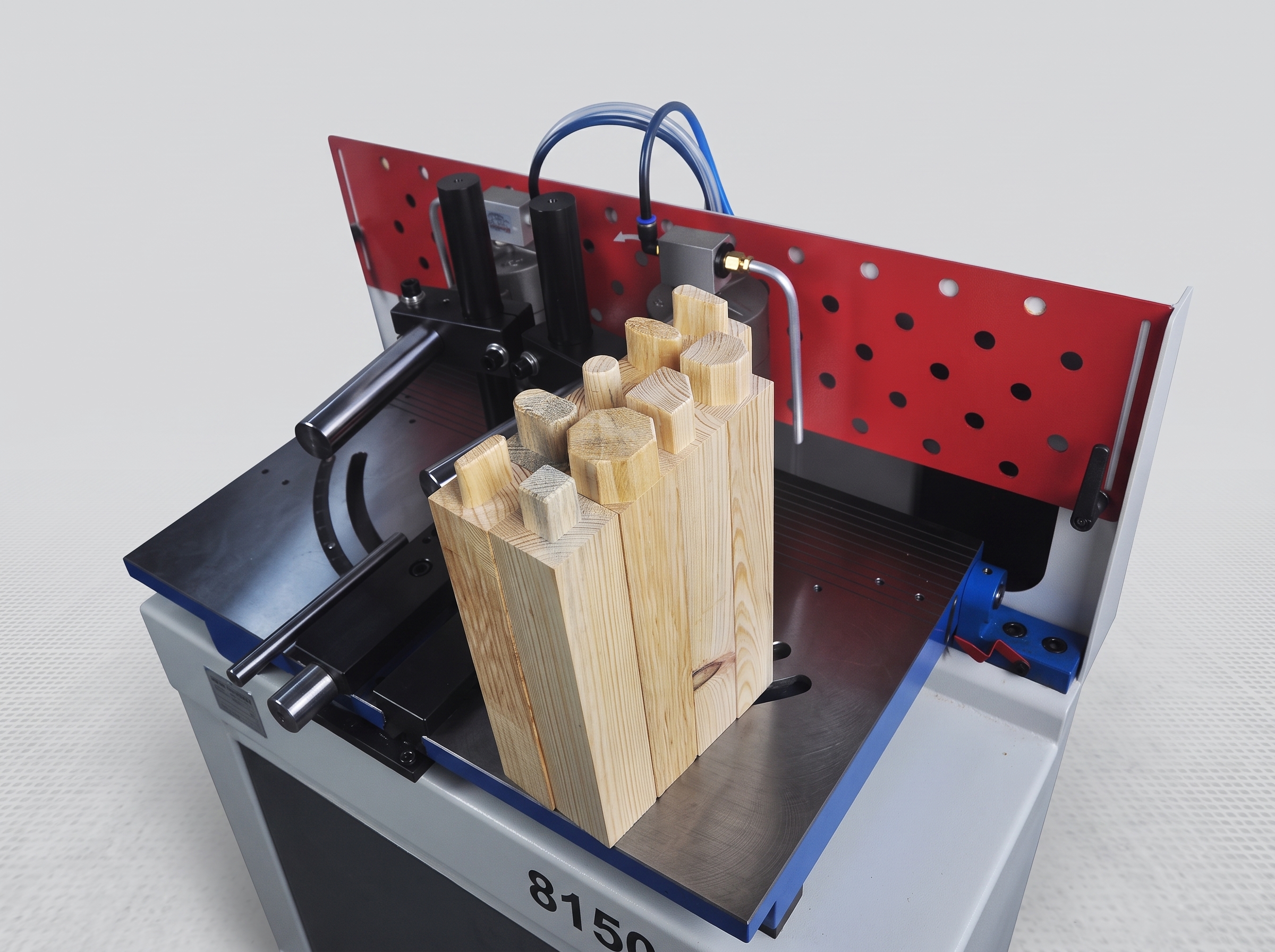

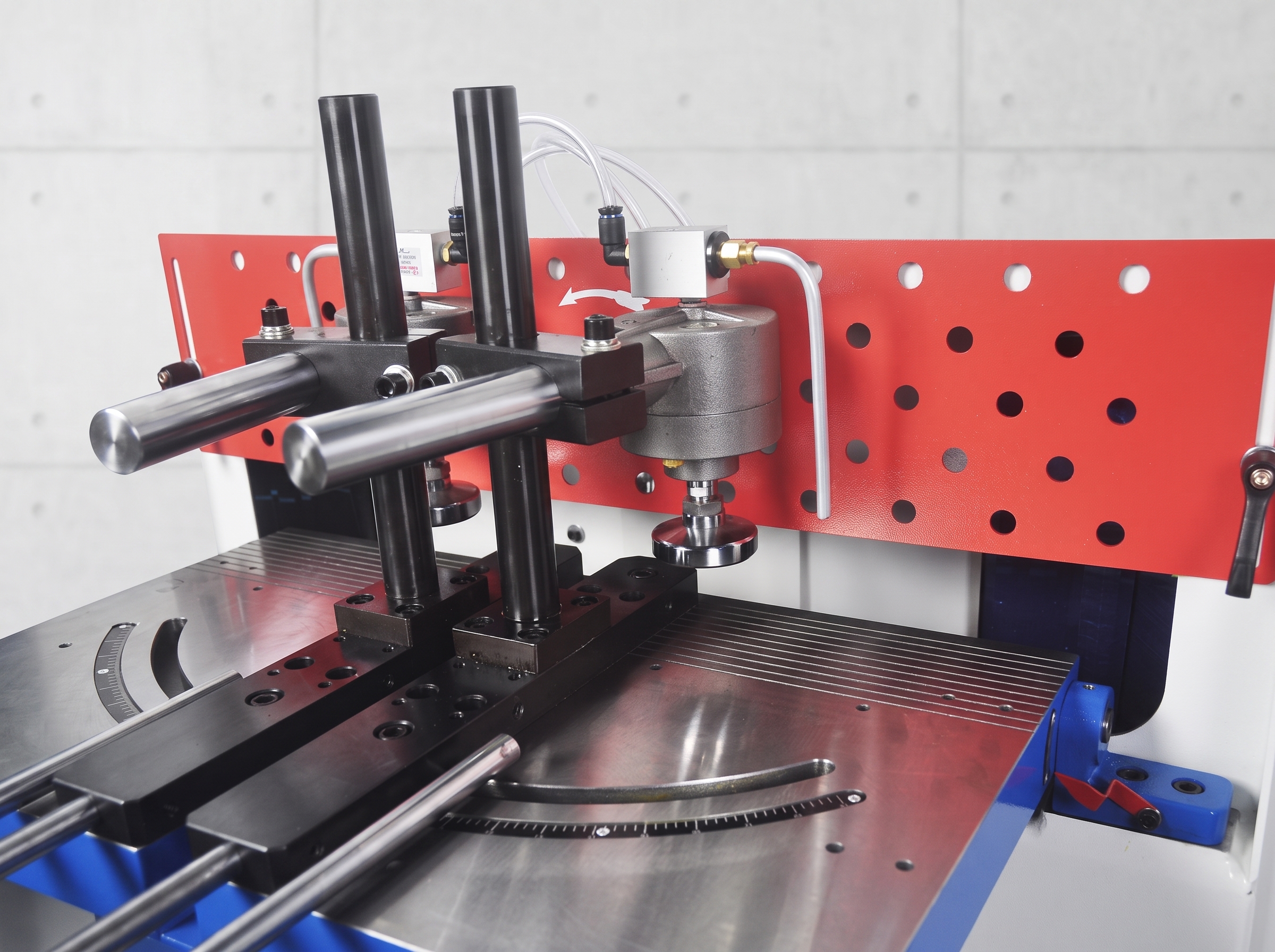

- The specially treated worktable and adjustable fence allow fast angle adjustment for different solid wood furniture components.
Technical data
| Specifications | Unit | MXK3815C-K |
|---|---|---|
| Max. horizontal round tenon width | mm | 140 |
| Max. horizontal round tenon thickness | mm | 80 |
| Max. vertical round tenon width | mm | 80 |
| Max. vertical round tenon thickness | mm | 80 |
| Maximum round tenon diameter | mm | Ø80 |
| Spindle diameter | mm | Ø30 |
| Spindle speed | r/min | 8,500 |
| Total motor power | kW | 5 |
