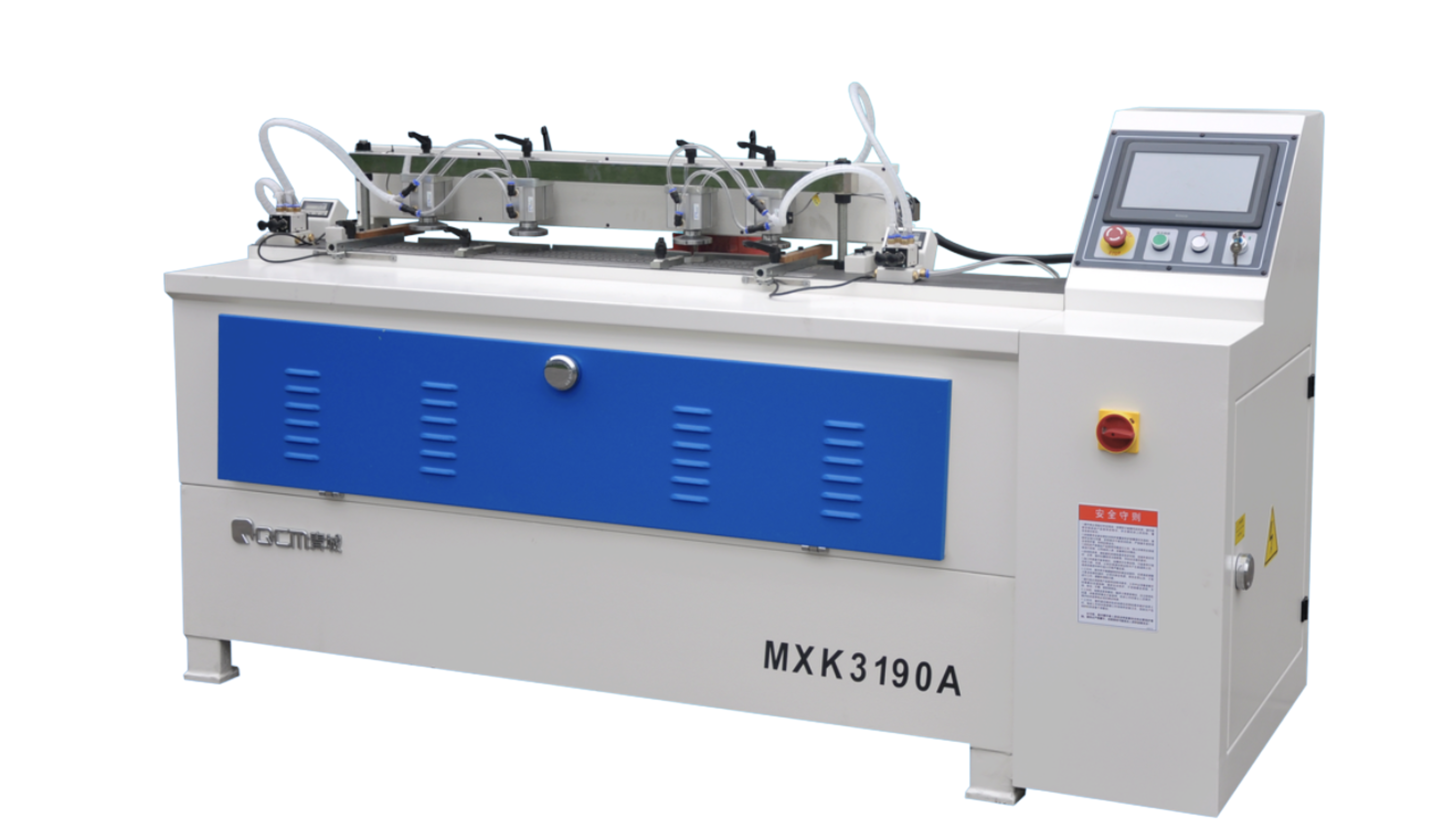

MXK3190A — CNC Swallowtail Tenoner (Dovetail Tenoning Machine)
MXK3190A is a compact CNC dovetail tenoning machine designed for accurate, repeatable machining of dovetail (swallowtail) tenons on solid wood components. With CNC control and stable spindle cutting, it delivers consistent joint geometry for furniture and joinery production, supporting both straight and special-shaped workpieces.
Typical applications
-
Dovetail (swallowtail) tenons for furniture parts
-
Straight and long workpieces, including irregular male/female tenon components (per spec list)
| Specification | Unit | MXK3190A |
|---|---|---|
| Working width | mm | 900 |
| Working thickness | mm | 10–40 |
| Main spindle speed | r/min | 18,000 |
| Number of spindles | 1 | |
| Tenon spacing | Adjustable | |
| Machine total power | kW | 3.2 |
| Main spindle motor power | kW | 1.1 |
| X-axis motor power | kW | 1.0 |
| Y-axis motor power | kW | 0.75 |
| Cutting cycle time | s | 3–30 |
| Applicable workpieces | Swallowtail tenon, straight male tenon, long male tenon, standard tenon, irregular male tenon | |
| Machine dimensions (L×W×H) | cm | 223 × 92 × 116 |
| Machine weight | kg | 750 |
