Highlights
The MXK3190A CNC Dovetail Machine is a high-precision CNC woodworking machine designed for efficient dovetail and tenon machining in solid wood furniture production. By setting different machining parameters through the touchscreen control system, the machine can process dovetail joints and various tenon configurations with adjustable spacing. A rigid welded steel frame, precision linear guides, ball-screw transmission, servo control and dual working stations provide stable machining accuracy, high productivity and convenient operation.
- Maximum working width: 900 mm
- Working thickness: 10–40 mm
- Spindle speed: 18,000 r/min
- Spindle quantity: 1 pc
- Tenon spacing: Adjustable
- Processing configuration: Dual working stations
- Total motor power: 3.2 kW

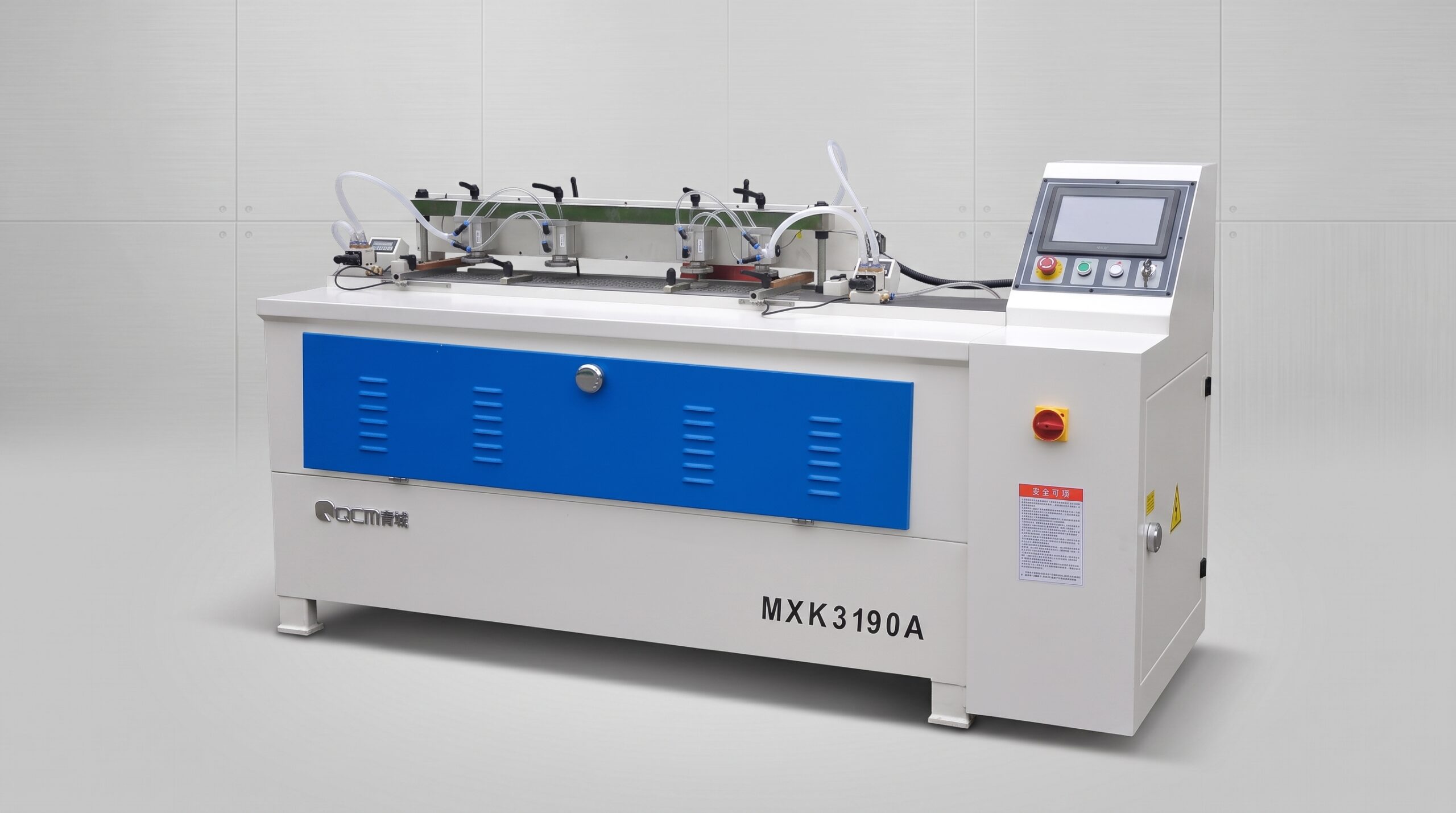

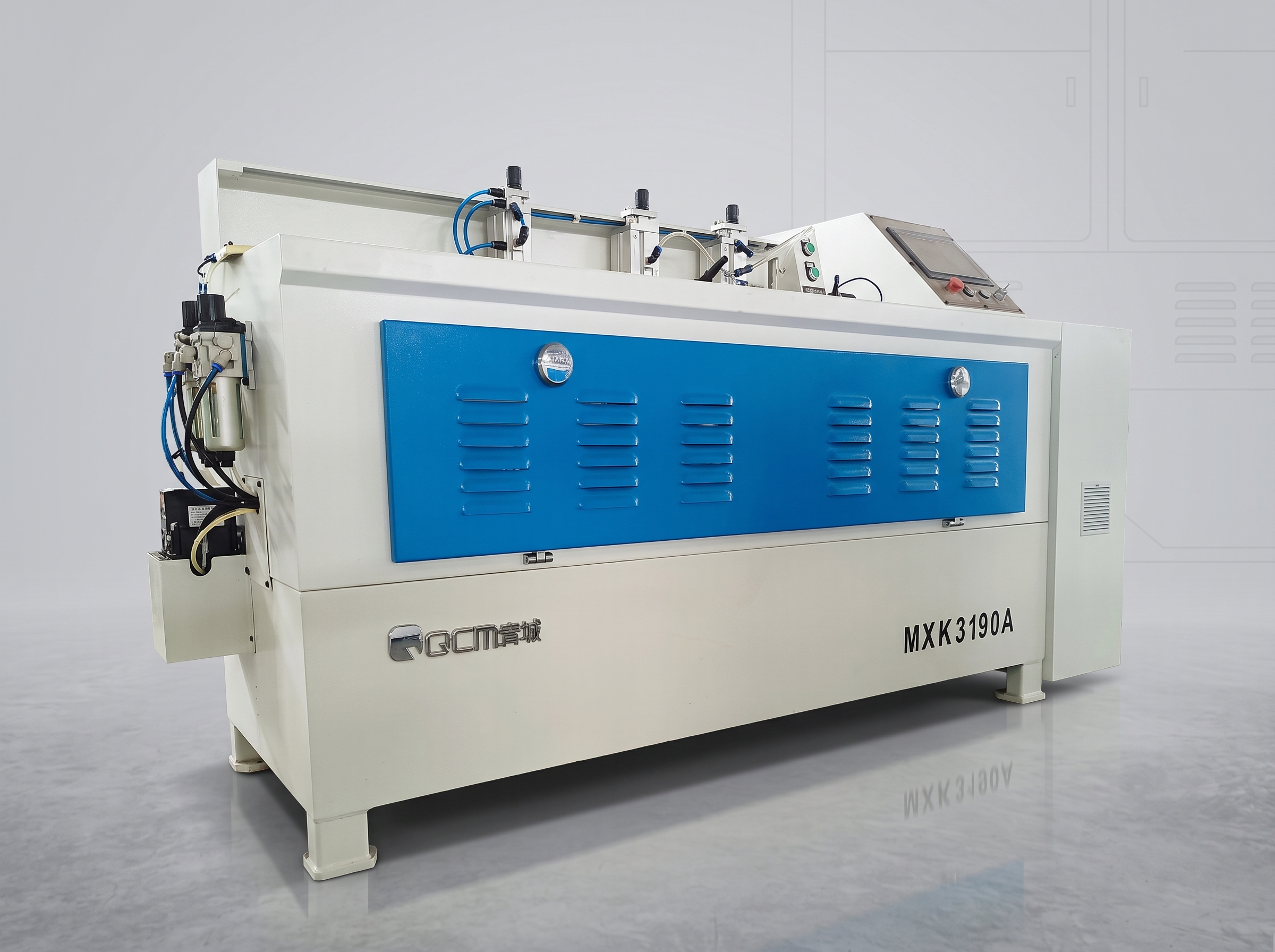

Images
Features
- CNC parameter setting allows the machine to process dovetail joints and multiple tenon configurations, providing flexibility for different solid wood furniture components.
- The machine frame is welded from high-strength steel plate, providing high rigidity and stable support for precision machining.
- The X and Y axes use branded linear guide rails and ball-screw transmission for flexible movement and consistent positioning performance.
- Enhanced servo motors provide stable operation with stepless feed-speed adjustment according to different workpiece materials and machining requirements.
- Dual-station processing improves productivity, with four pneumatic pressing cylinders at each station to secure workpieces and maintain stable machining quality.
Technical data
| Specifications | Unit | MXK3190A |
|---|---|---|
| Working width | mm | 900 |
| Working thickness | mm | 10–40 |
| Spindle speed | r/min | 18,000 |
| Spindle quantity | pcs | 1 |
| Tenon spacing | — | Adjustable |
| Total motor power | kW | 3.2 |
