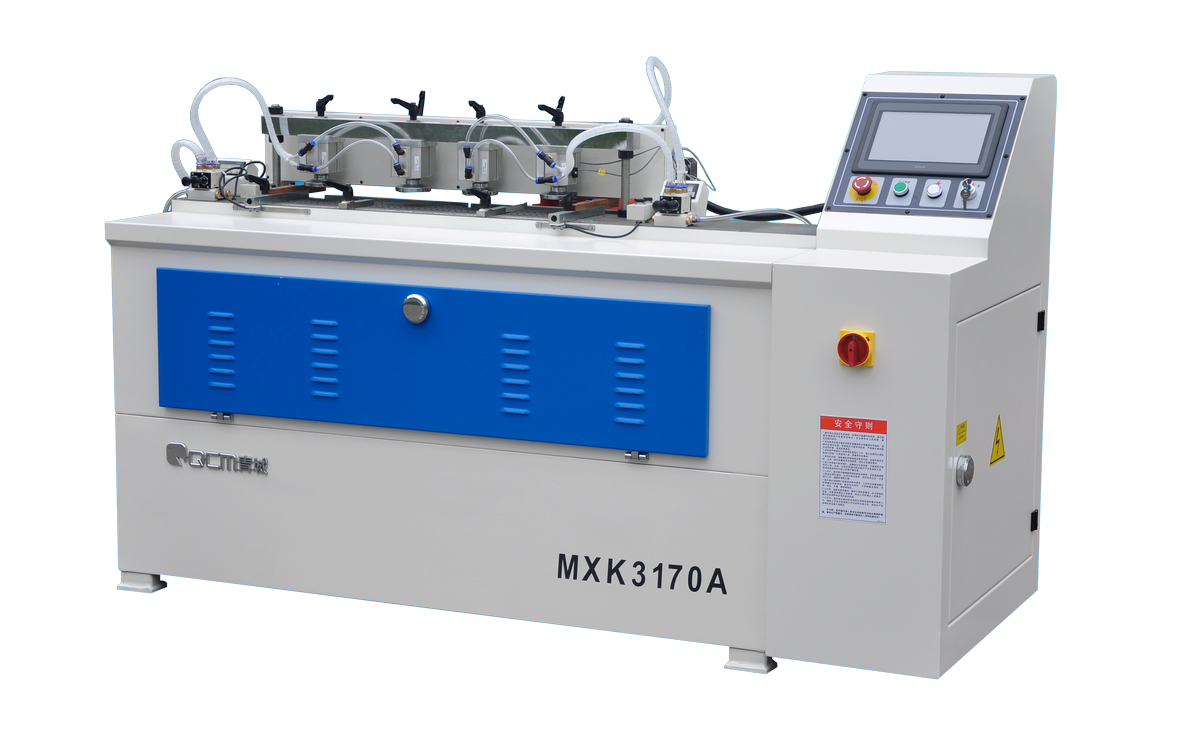

MXK3170A — CNC Dovetail Tenoner (Swallowtail Tenoning Machine)
MXK3170A is a compact CNC dovetail tenoning machine designed for accurate, repeatable machining of dovetail (swallowtail) tenons on solid wood components. With CNC control and a high-speed spindle, it delivers consistent joint geometry for furniture and joinery production, including straight and special-shaped parts.
| Specification | Unit | MXK3170A |
|---|---|---|
| Working width | mm | 700 |
| Working thickness | mm | 10–40 |
| Main spindle speed | r/min | 18,000 |
| Number of spindles | 1 | |
| Tenon spacing | Adjustable | |
| Machine total power | kW | 3.0 |
| Main spindle motor power | kW | 1.1 |
| X-axis motor power | kW | 0.75 |
| Y-axis motor power | kW | 0.75 |
| Cutting cycle time | s | 3–30 |
| Applicable workpieces | Dovetail tenon, straight male tenon, long male tenon, standard tenon, irregular male tenon | |
| Machine dimensions (L×W×H) | cm | 202 × 92 × 116 |
| Machine weight | kg | 680 |
