Highlights

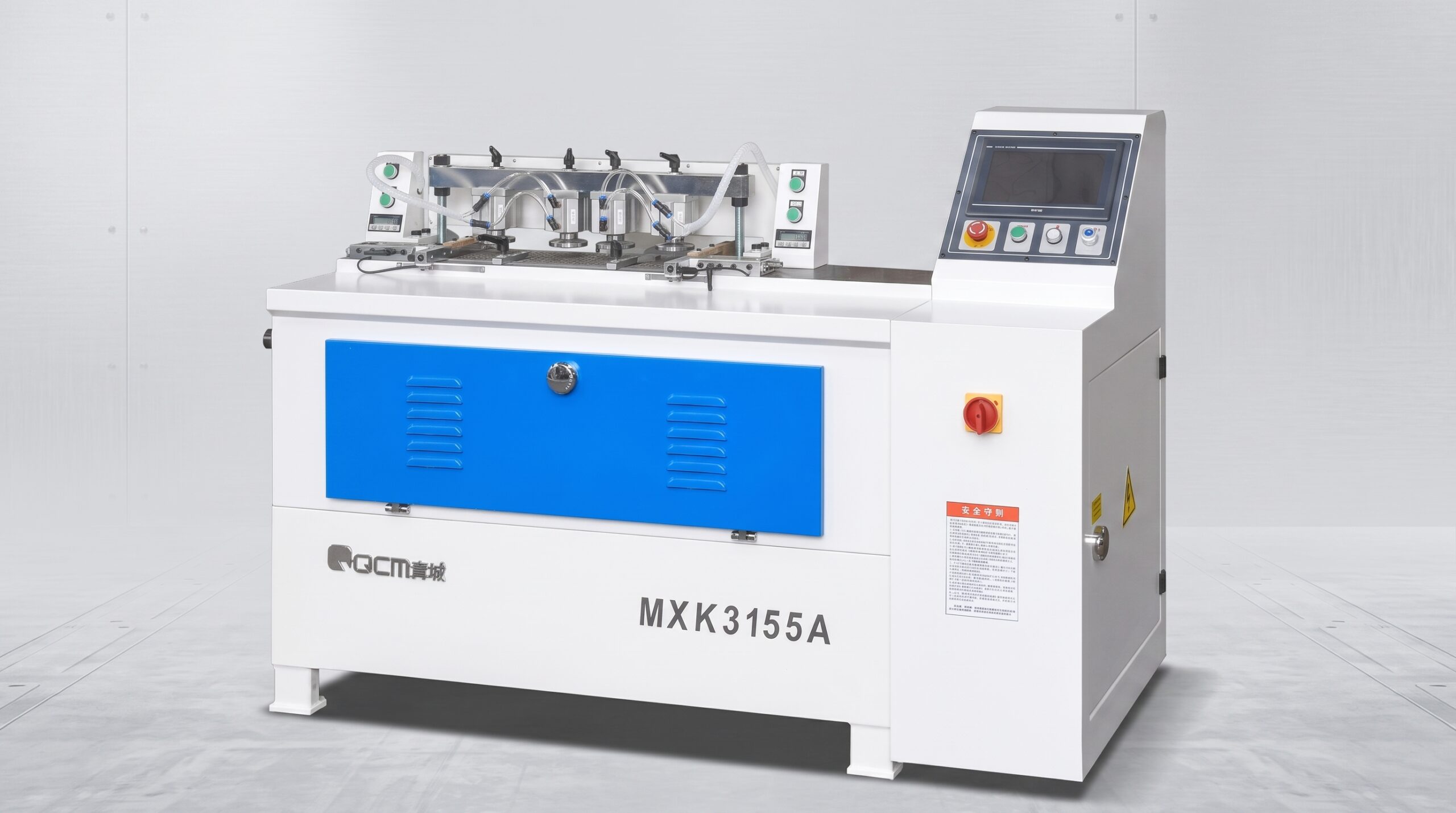

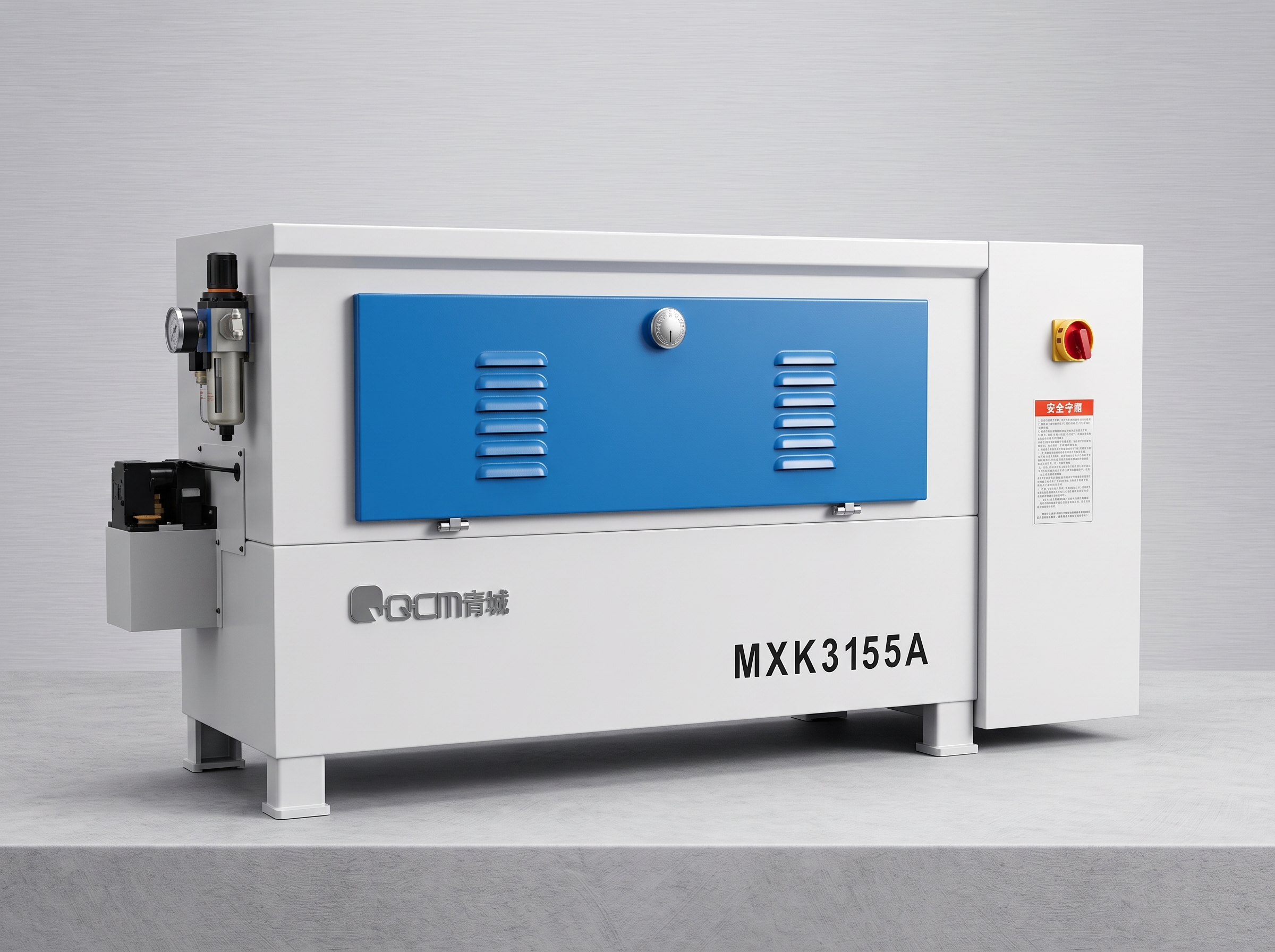

The MXK3155A CNC Dovetail Machine is a high-precision CNC woodworking machine developed for efficient dovetail and tenon processing in solid wood furniture production. Different machining data can be programmed to produce dovetail joints and multiple tenon configurations, while the dual-station design helps increase productivity. A rigid welded steel structure, precision linear guides, ball-screw transmission, servo control and touchscreen programming provide stable machining performance, easy setup and consistent processing quality.
- Maximum working width: 500 mm
- Working thickness: 10–40 mm
- Spindle speed: 18,000 r/min
- Spindle quantity: 1
- Tenon spacing: Adjustable
- Total motor power: 2.6 kW
- Processing configuration: Dual working stations
Images
Features
- CNC programming allows different machining data to be set for dovetail joints and multiple tenon configurations, providing flexibility for solid wood furniture components.
- The machine body is welded from high-strength steel plate, providing a rigid and stable structural foundation for precision machining.

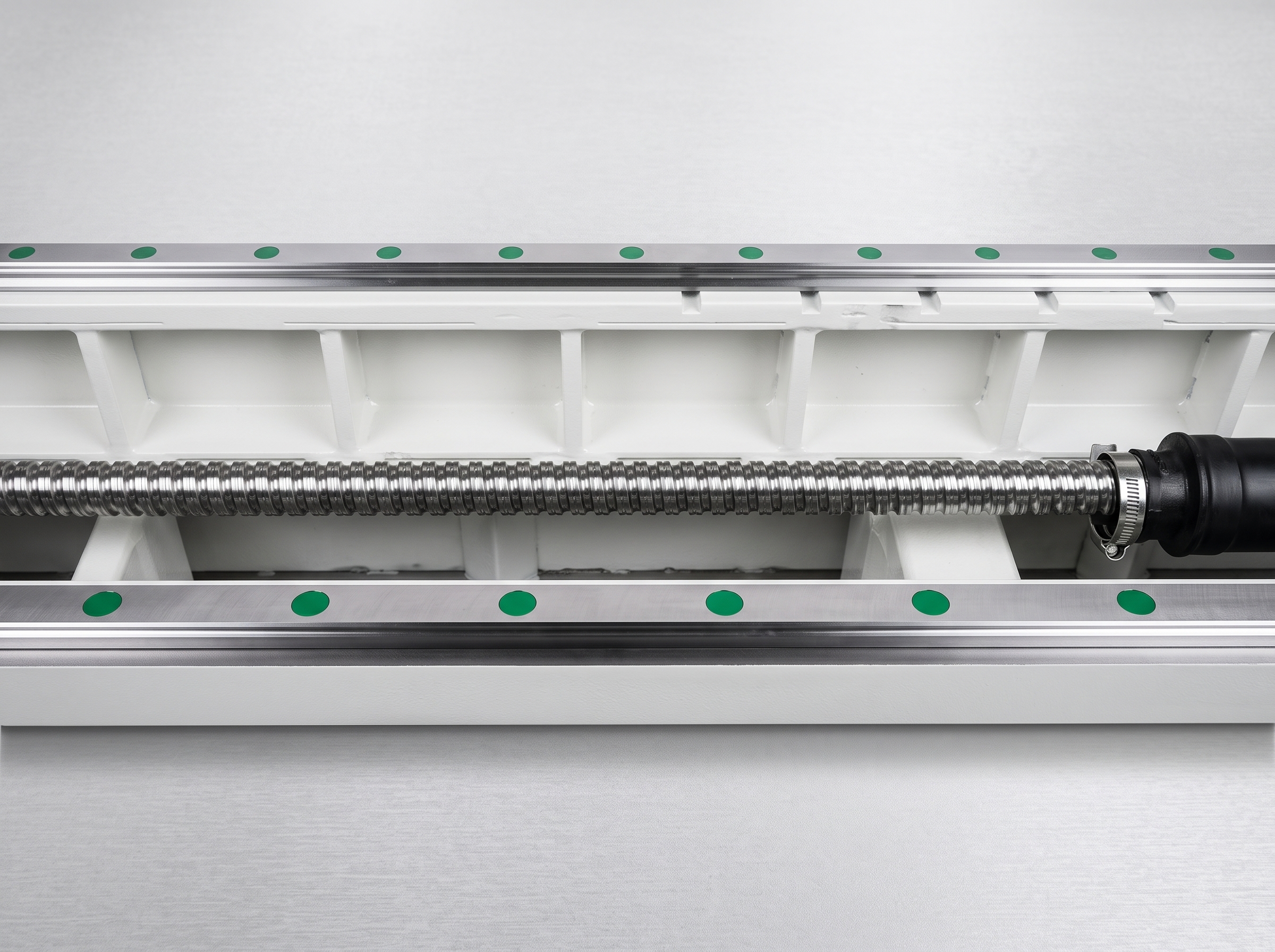

- The X and Y axes use branded linear guide rails and ball-screw transmission for smooth movement and stable positioning accuracy.

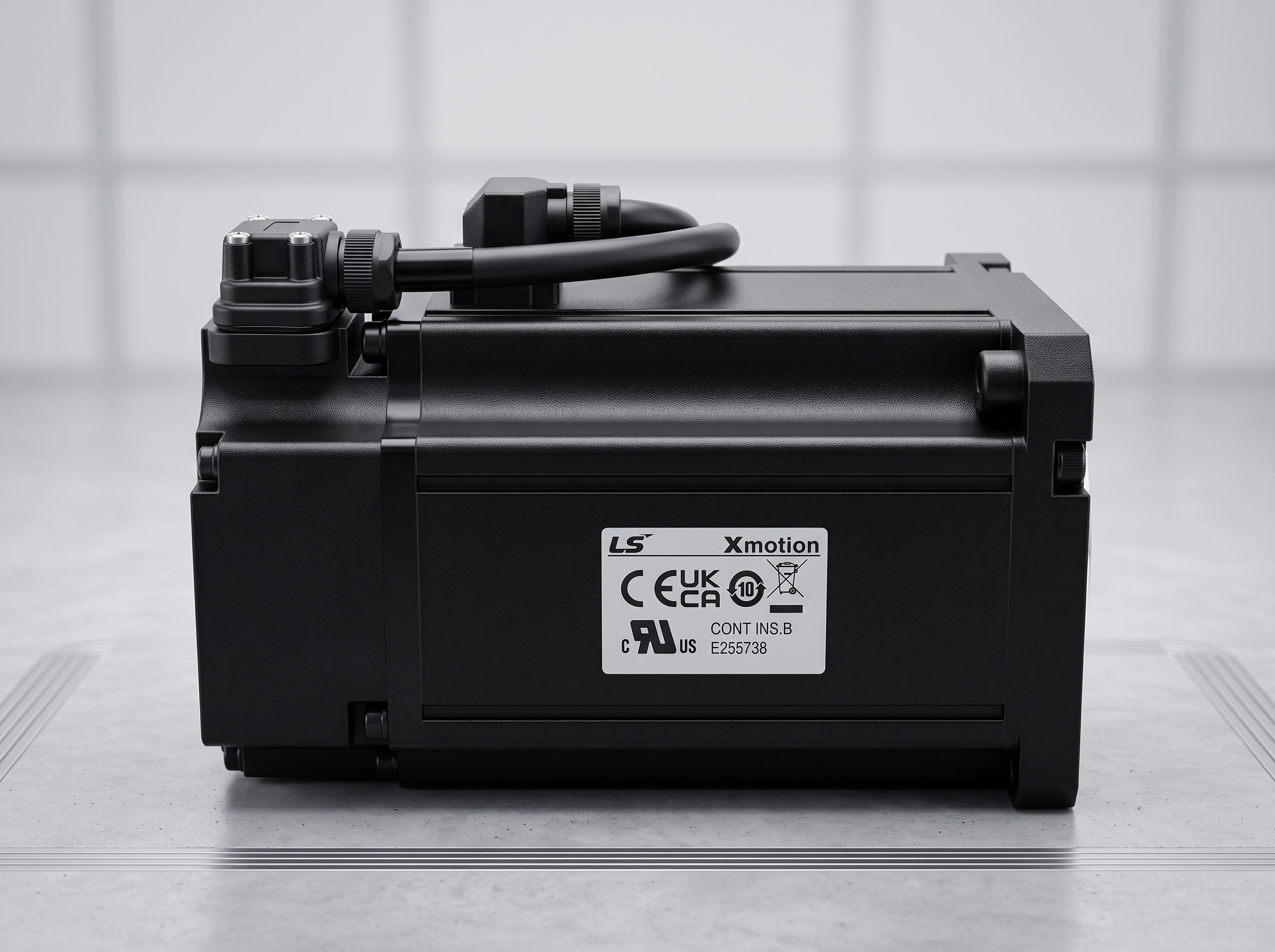

- Enhanced servo motors provide reliable operation, while the feed speed can be adjusted steplessly according to workpiece material and machining requirements.

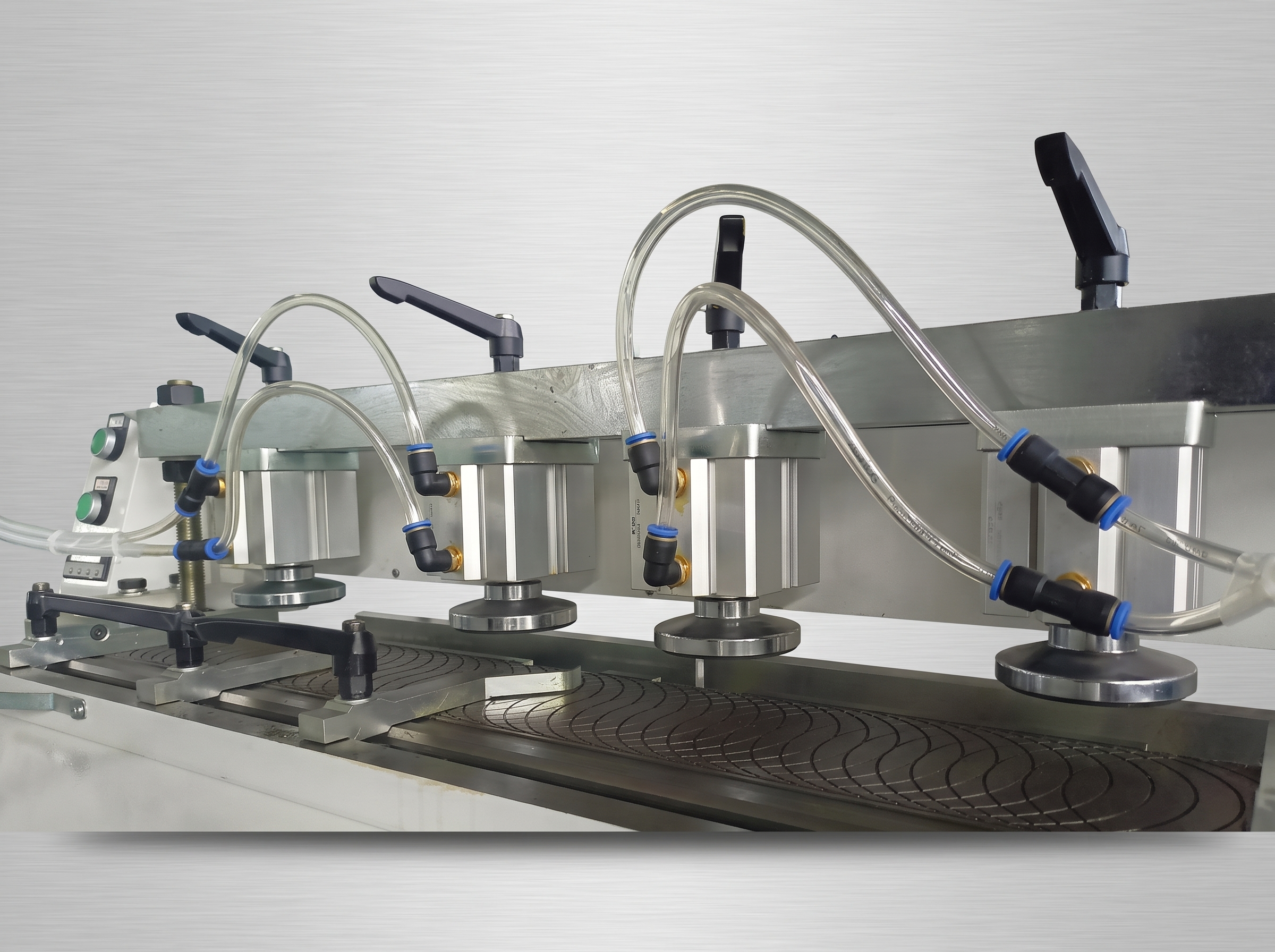

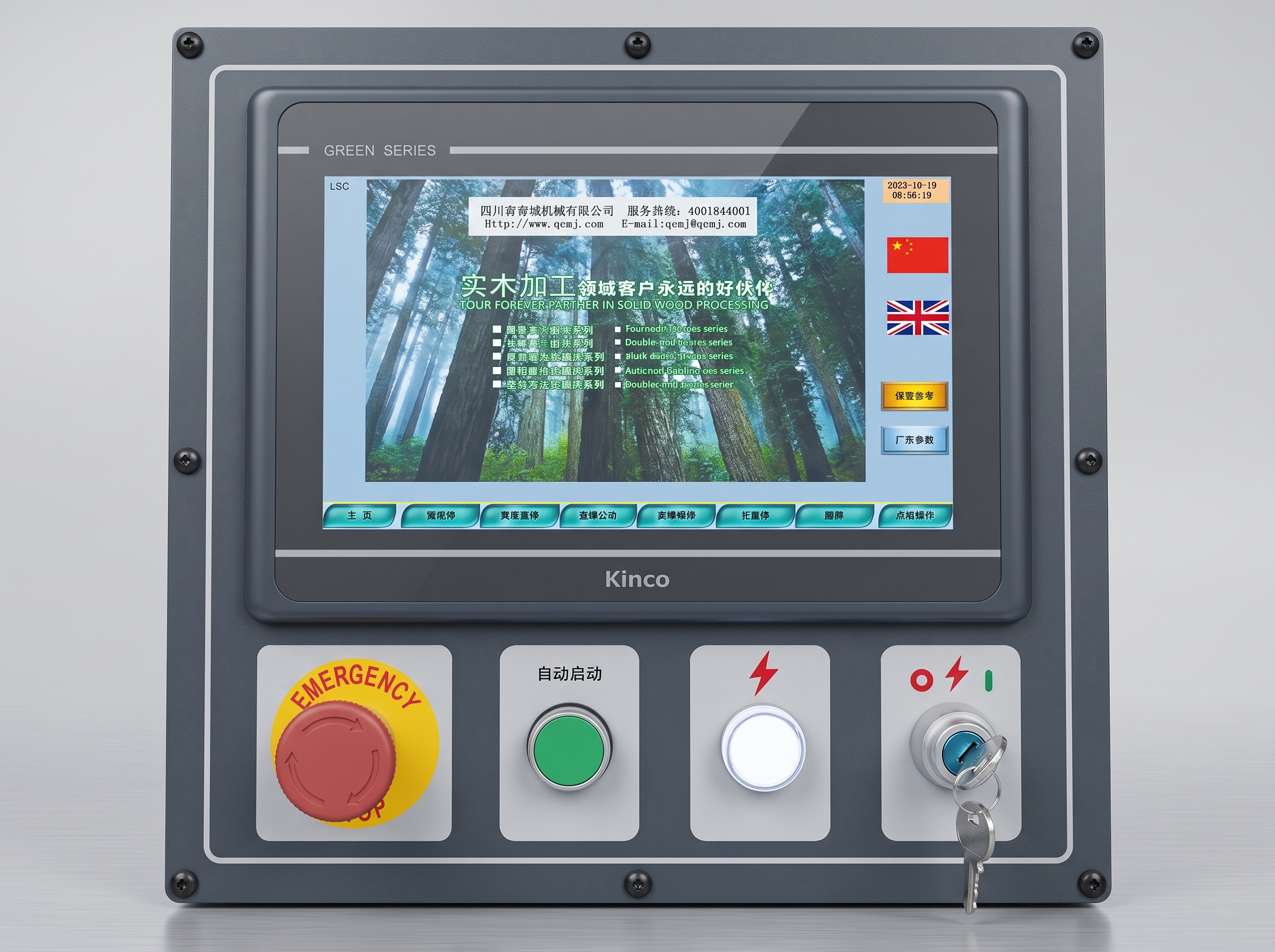

- The dual-station working system uses four pneumatic pressing cylinders at each station to secure workpieces and maintain stable processing quality. Touchscreen control simplifies parameter setting and machine operation.
Technical data
| Specifications | Unit | MXK3155A |
|---|---|---|
| Working width | mm | 500 |
| Working thickness | mm | 10–40 |
| Spindle speed | r/min | 18,000 |
| Spindle quantity | pcs | 1 |
| Tenon spacing | — | Adjustable |
| Total motor power | kW | 2.6 |
