MR8S-S 1200 32-Head CNC Milling Machine

Highlights

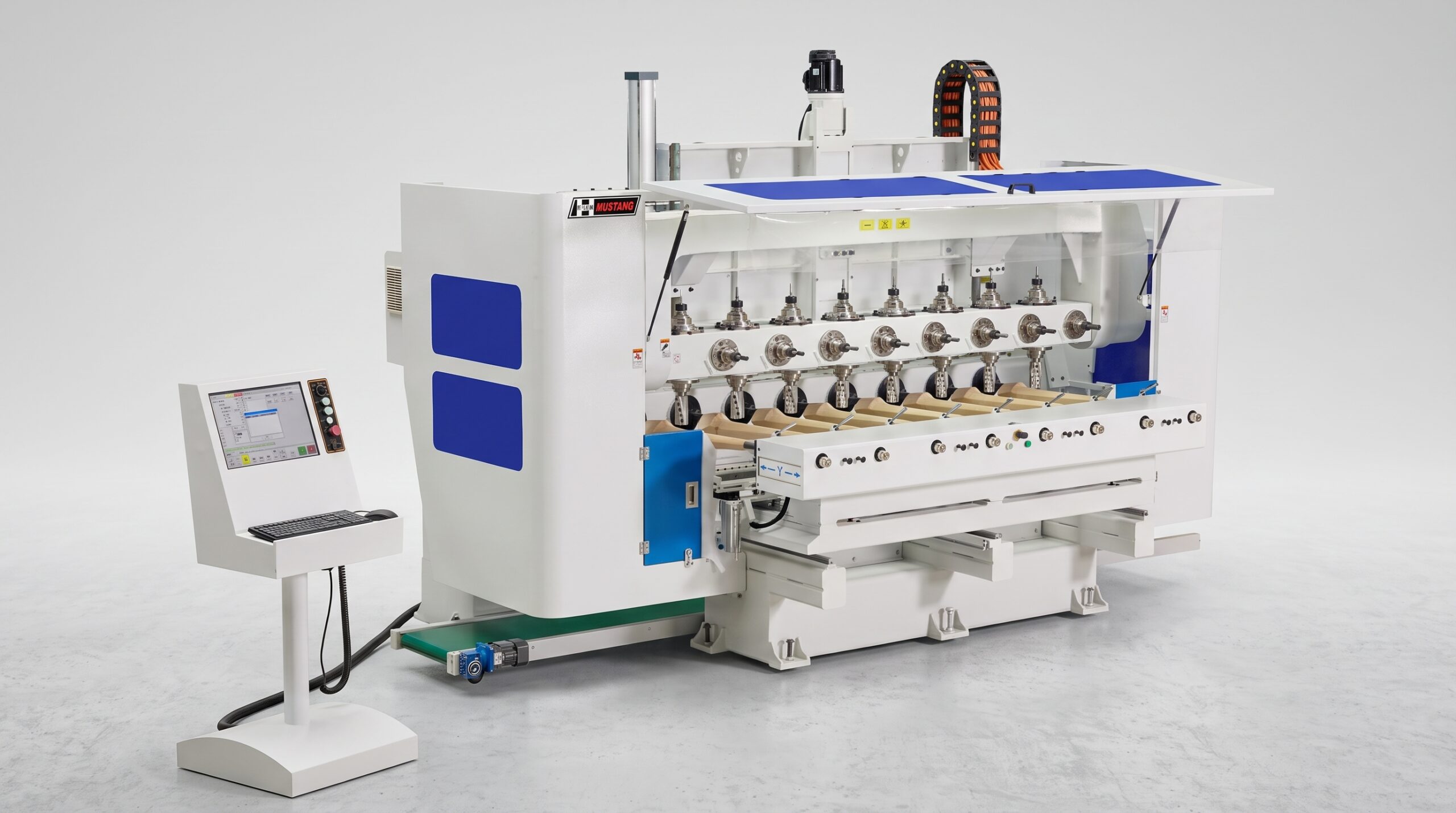

The MR8S-S 1200 32-Head CNC Milling Machine is a high-efficiency multi-surface machining solution designed for complex solid wood components and curved workpieces. Its 32-head machining architecture combines four-side profiling, drilling, grooving and line cutting on one CNC platform, while a single table can process up to 8 workpieces per cycle, with each workpiece supporting up to four different tool types. Equipped with a Taiwan LNC 5-axis CNC system, EtherCAT communication and RTCP, high-speed double-ended motors and a special pull-clamp structure, the machine provides flexible, stable and efficient machining for demanding solid wood production.

• Machining architecture: 32 heads
• Workpieces per table / cycle: 8 pcs
• Standard workpiece length: 1200 mm
• Center distance: 290 mm
• Maximum rotation radius: R115 mm
• CNC control: Taiwan LNC / EtherCAT / 5-axis / RTCP
• Maximum spindle speed: 18,000 r/min

Images

Features

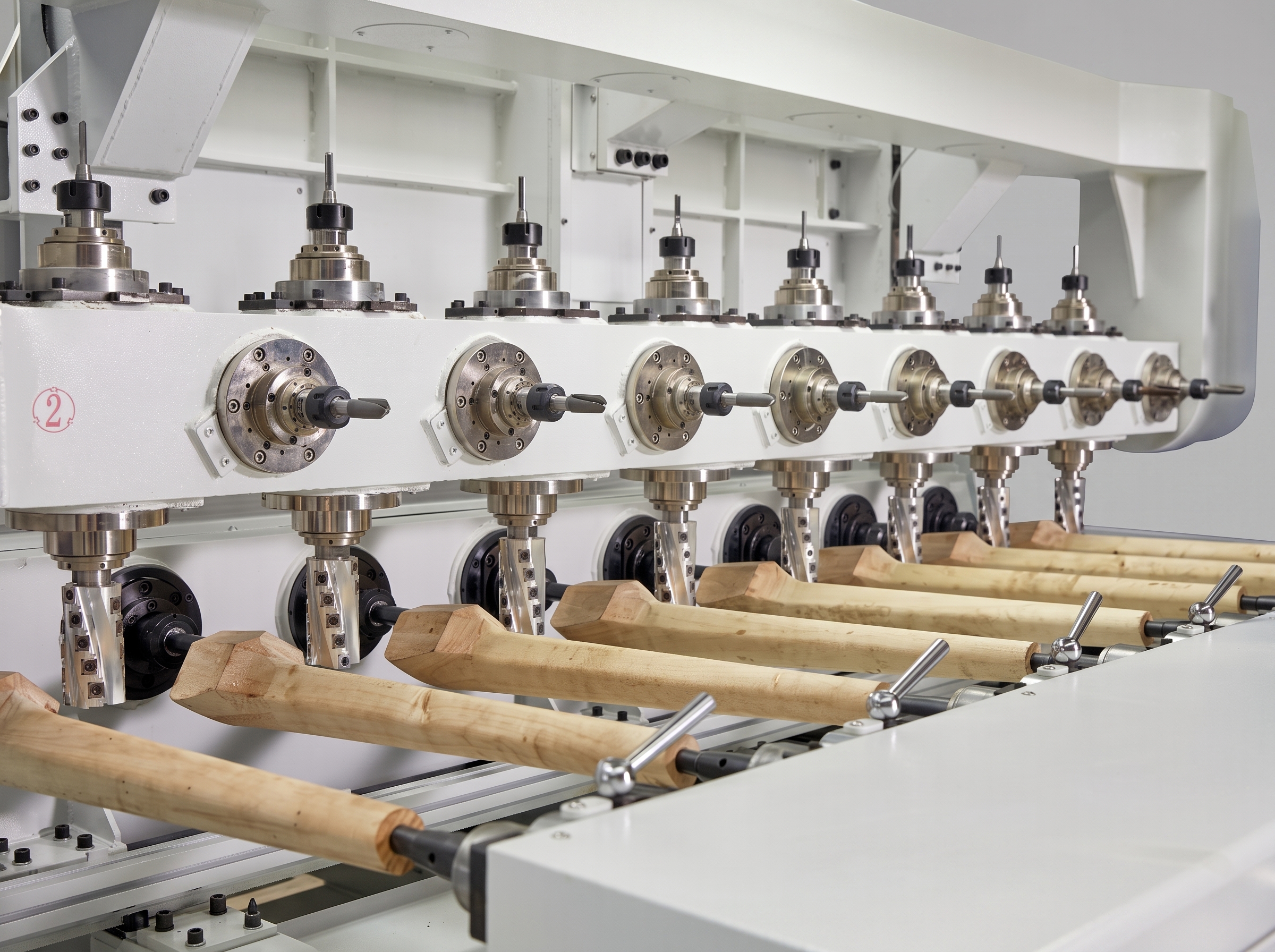

• The 32-head machining architecture supports four-side profiling, drilling, grooving and line cutting of solid wood components on one CNC machining platform.
• One table can process up to 8 workpieces in a single cycle, while each workpiece can use up to 4 different tool types, significantly increasing batch-processing flexibility and productivity.
• The Taiwan LNC CNC system uses EtherCAT bus communication with 5-axis simultaneous control and RTCP tool-center-point programming for complex multi-surface machining.
• Two high-speed motor groups include 8 × 5.5 kW ER32 motors up to 12,000 r/min and 8 × 3.7 kW ER24 motors up to 18,000 r/min, supporting different milling, drilling and grooving tools.
• A special pull-clamp structure improves holding stability for highly curved workpieces, while the fully enclosed dustproof design and bottom conveyor guide chips and dust toward the centralized extraction outlet.
