Mobile Hydraulic Scissor Lift Table

Highlights

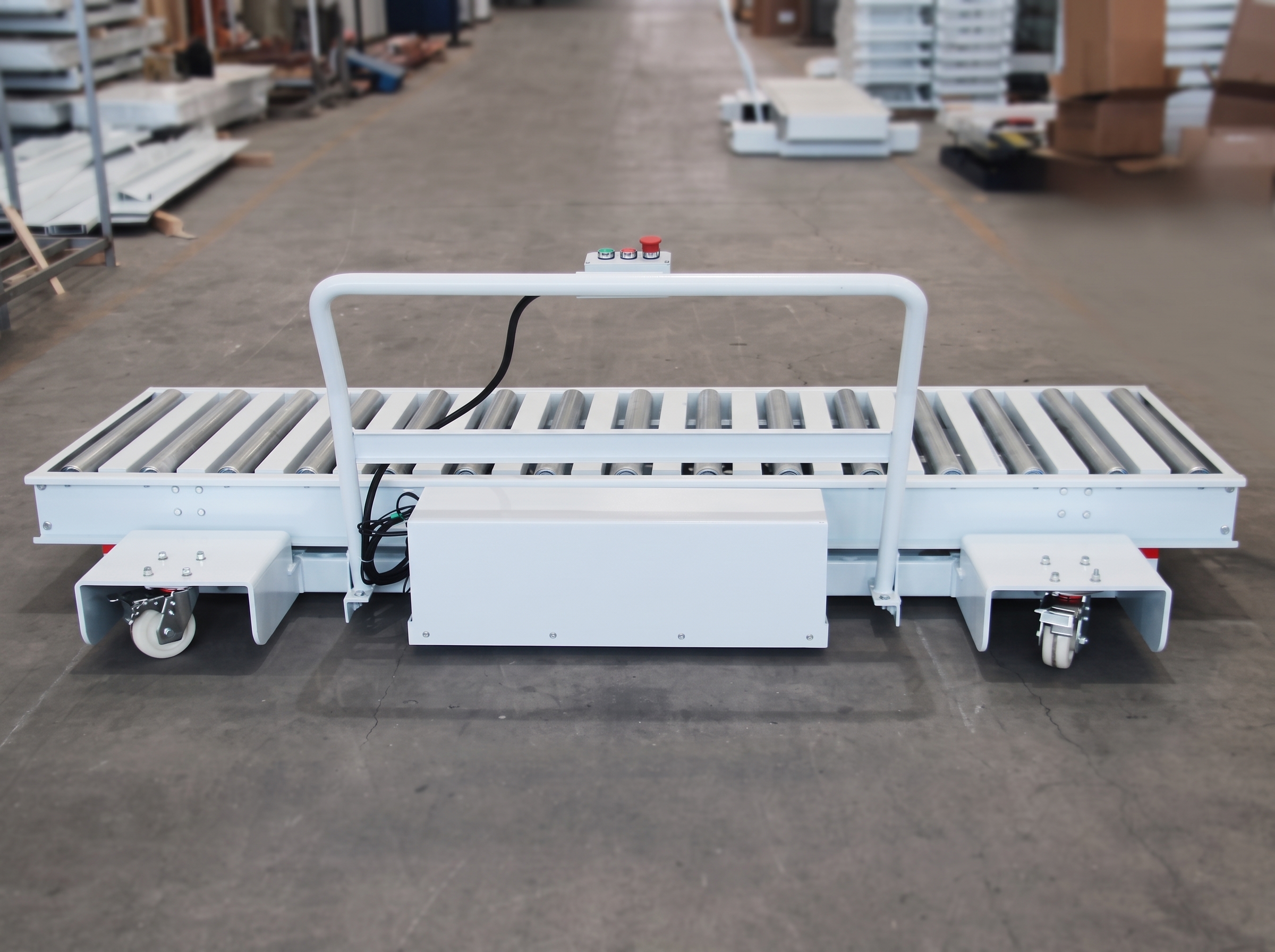

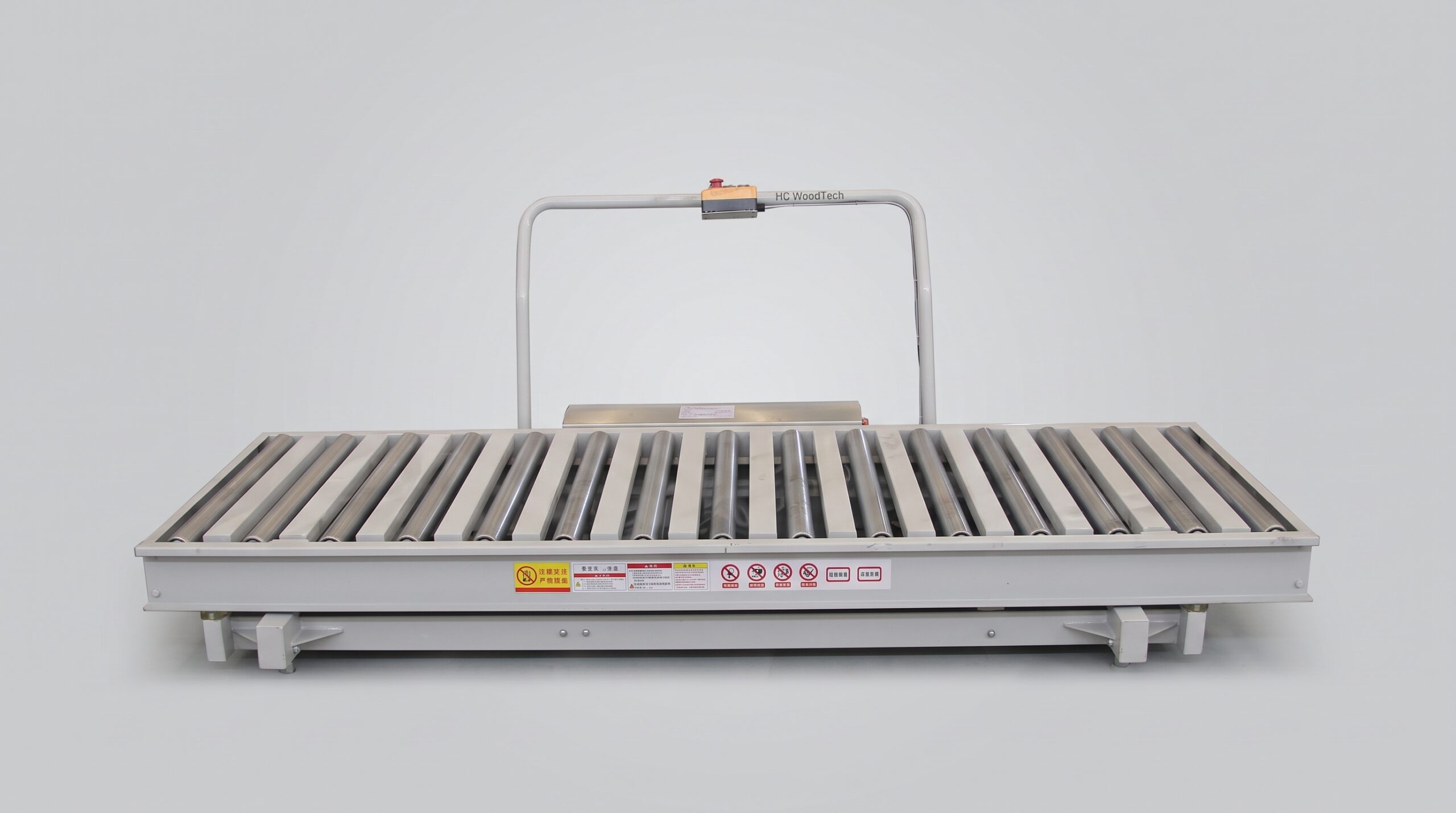

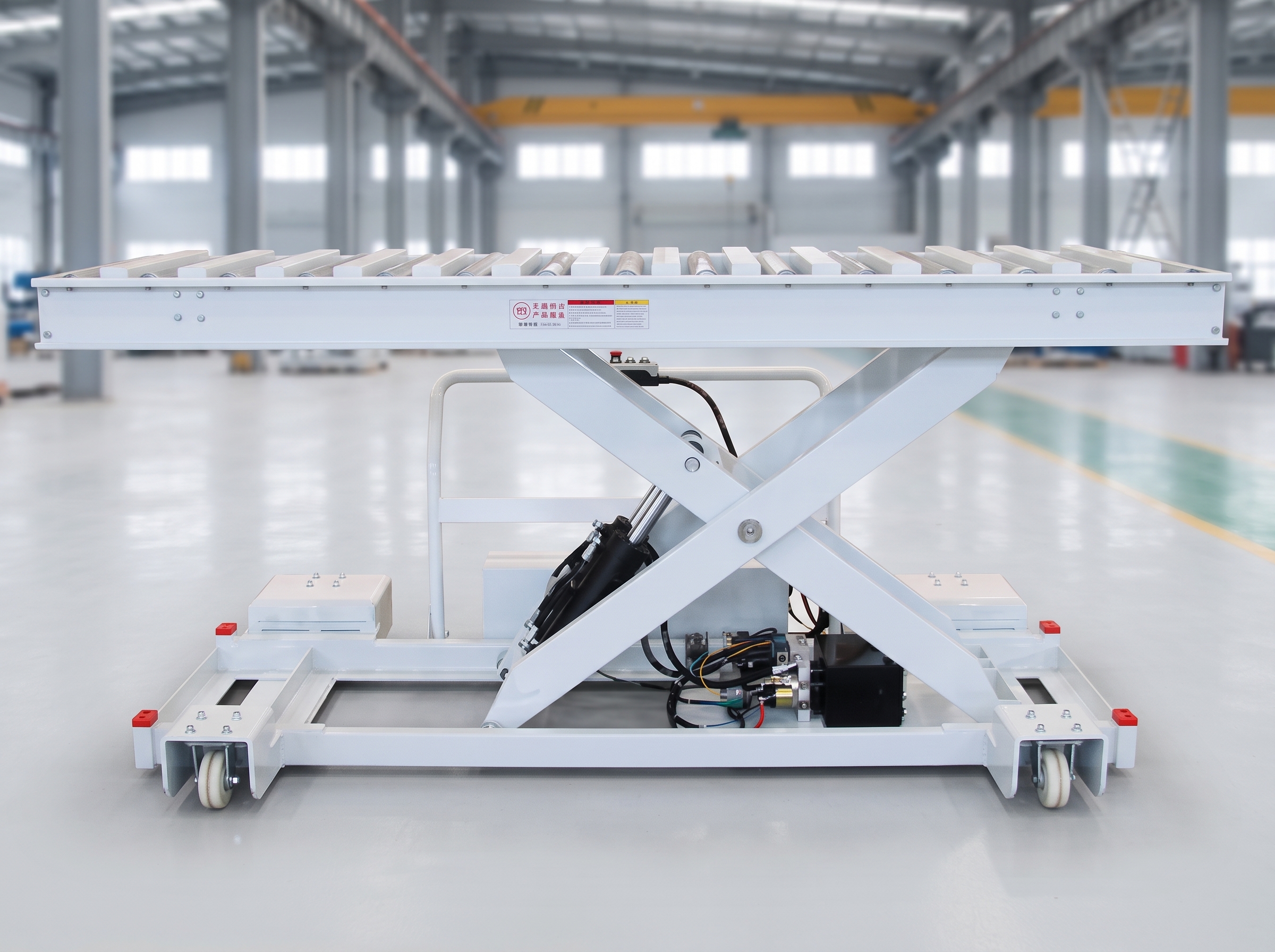

The Mobile Hydraulic Scissor Lift Table combines vertical lifting, roller conveying and rail-guided travel in one flexible material-handling system. Designed for furniture factories, panel-processing plants and automated production lines, the unit can move between multiple workstations while raising or lowering materials to the required transfer height. The mobile system can be powered by battery or drag-chain power supply, allowing integration with conveyors, automatic loading systems, forklifts and other material-handling equipment. The standard configuration supports loads up to approximately 1000 kg with a 300–1100 mm lifting range, while platform dimensions, travel distance, lifting stroke and load capacity can be customized according to project requirements.

• Load capacity: Up to 1000 kg
• Lifting range: 300–1100 mm
• Platform length: 2500 mm
• Mobility: Rail-Guided
• Power option: Battery / Drag Chain
• Hydraulic power: 1.5 kW / 380 V
• Configuration: Customizable

Images

Features

• Combines mobile transfer and hydraulic lifting in one unit, reducing the need for separate transfer carts and fixed lift tables.
• Rail-guided movement allows the lift to serve multiple production stations or longer-distance material transfer routes.
• Integrated roller platform allows materials to transfer directly between the mobile lift and conveyor systems.
• Battery-powered or drag-chain-powered configurations can be selected according to travel distance and production-line requirements.
• Platform dimensions, lifting stroke, travel distance and load capacity can be customized according to workpiece size and factory layout.
