ML9620SMF Four-side Planer & Multi-blade Saw
The ML9620SMF is a heavy-duty four-side planer combined with a horizontal multi-blade saw, designed for efficient and accurate solid wood processing. It completes four-side planing and double-side sawing in one continuous pass, helping manufacturers improve productivity while maintaining stable machining quality.
This machine is suitable for processing wood components that require consistent thickness, accurate width control, smooth surface finish, and efficient straight-line cutting. With its strong spindle configuration, stable feed system, and industrial-grade structure, the ML9620SMF is well suited for factories that need reliable output in continuous production.
It is especially ideal for solid wood furniture manufacturers, flooring and panel producers, construction timber processors, and high-volume woodworking plants. By combining planing and sawing into one machine, it helps reduce manual handling, save floor space, and improve overall production efficiency.
Key Features
- Four-side planing and multi-blade sawing in one machine
- Suitable for continuous industrial production
- Stable feeding speed from 6–30 m/min
- High spindle speed for smooth surface finish and precise cutting
- Heavy-duty frame for reliable long-term operation
- Multiple dust outlets for cleaner production environment

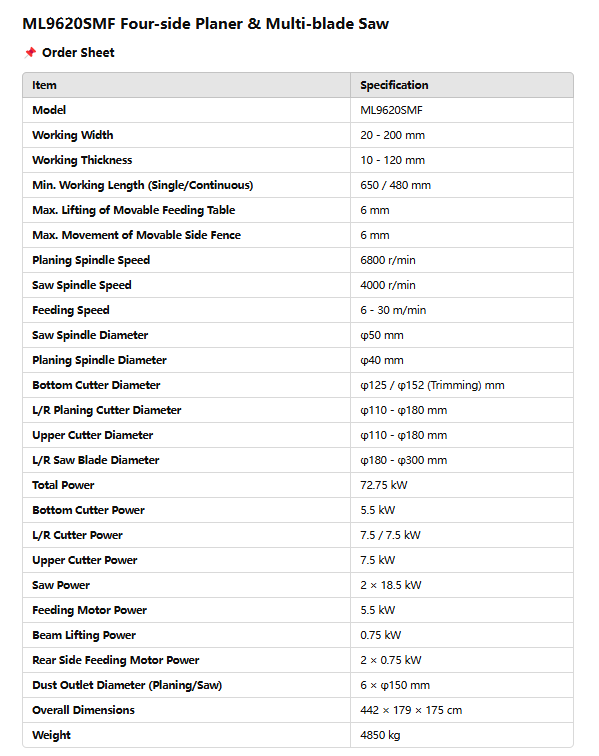

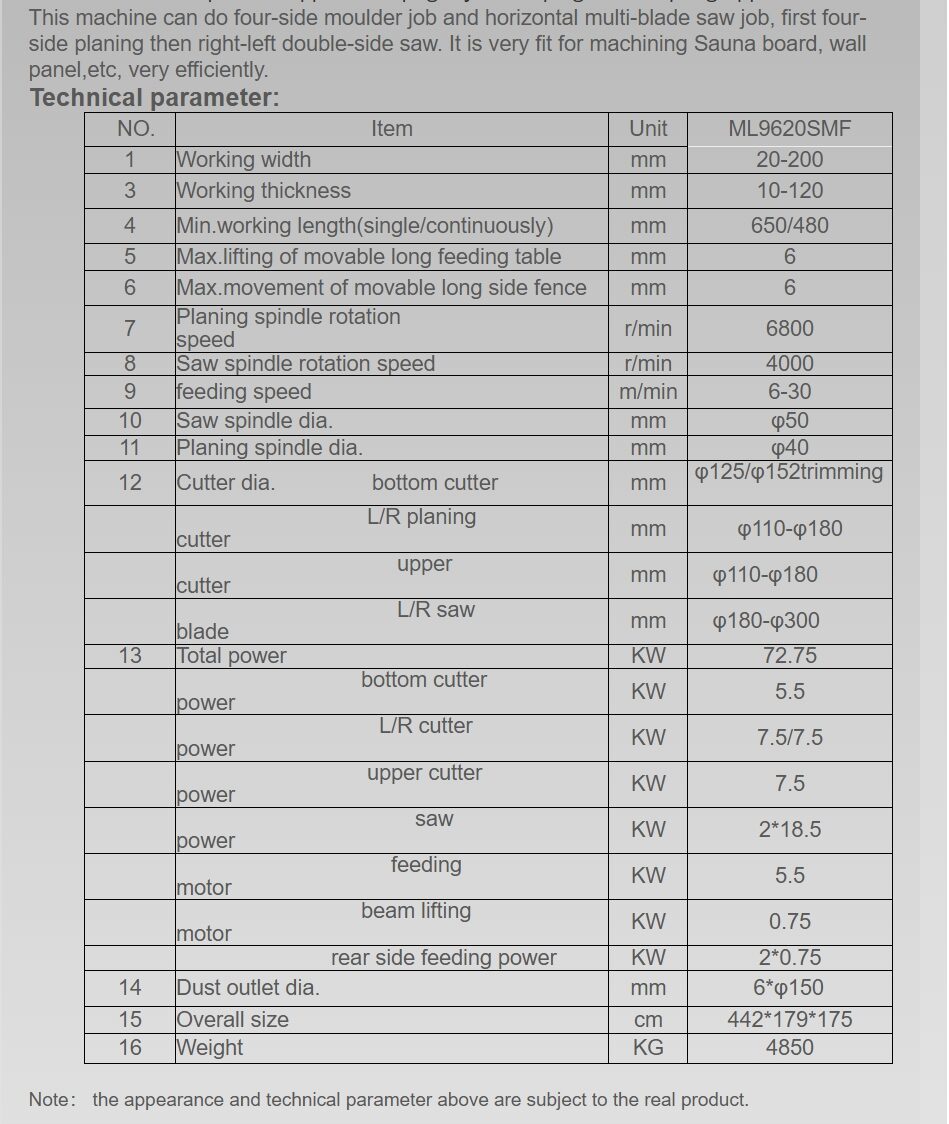

| Item | Specification |
|---|---|
| Model | ML9620SMF |
| Working Width | 20–200 mm |
| Working Thickness | 10–120 mm |
| Min. Working Length (Single/Continuous) | 650 / 480 mm |
| Feeding Speed | 6–30 m/min |
| Planing Spindle Speed | 6800 r/min |
| Saw Spindle Speed | 4000 r/min |
| Saw Spindle Diameter | φ50 mm |
| Planing Spindle Diameter | φ40 mm |
| Bottom Cutter Diameter | φ125 / φ152 (Trimming) mm |
| Left/Right Planing Cutter Diameter | φ110–φ180 mm |
| Upper Cutter Diameter | φ110–φ180 mm |
| Left/Right Saw Blade Diameter | φ180–φ300 mm |
| Total Power | 72.75 kW |
| Bottom Cutter Power | 5.5 kW |
| Left/Right Cutter Power | 7.5 / 7.5 kW |
| Upper Cutter Power | 7.5 kW |
| Saw Power | 2 × 18.5 kW |
| Feeding Motor Power | 5.5 kW |
| Beam Lifting Power | 0.75 kW |
| Rear Side Feeding Motor Power | 2 × 0.75 kW |
| Dust Outlet Diameter | 6 × φ150 mm |
| Overall Dimensions | 442 × 179 × 175 cm |
| Weight | 4850 kg |
