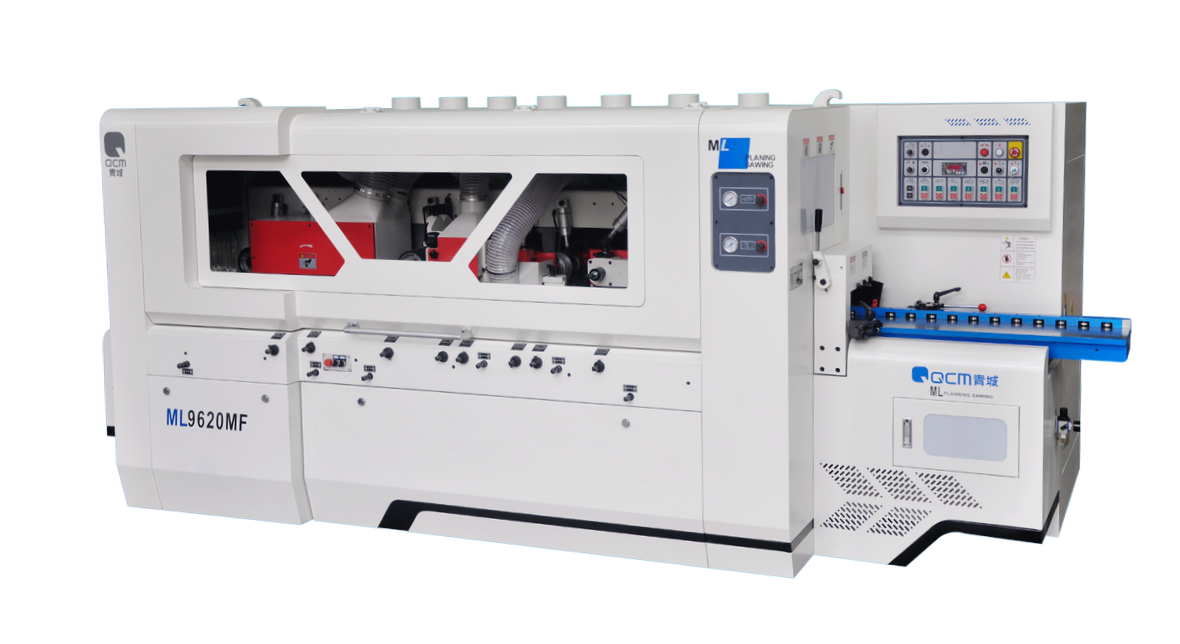

ML9620MF — 6-Spindle Planer & Saw Union Machine
The ML9620MF is a 6-spindle integrated planer & saw machine for accurate sizing and efficient production. It processes 20–200 mm width and 10–125 mm thickness, with a feed speed of 5–25 m/min, making it a balanced choice for stable, continuous solid-wood processing.
| Item | Value | Unit/Notes |
|---|---|---|
| Model | ML9620MF | 6-spindle planer & saw union |
| Max working width (tool OD Ø125) | 200 | mm |
| Min working width (tool OD Ø125) | 20 | mm |
| Max working thickness | 125 | mm |
| Min working thickness | 10 | mm |
| Min workpiece length (non-continuous feed) | 650 | mm |
| Min workpiece length (continuous feed) | 480 | mm |
| Max lift stroke of movable worktable | 6 | mm |
| Max travel of movable guide | 6 | mm |
| Saw spindle diameter | Ø40 | mm |
| Saw spindle keyway | 10 × 2 | mm |
| Saw spindle speed | 4500 | r/min |
| Cutter spindle diameter | Ø40 | mm |
| Planer spindle speed | 6800 | r/min |
| Feed speed range | 5–25 | m/min |
| Feed roller diameter | Ø140 | mm |
| Tooling diameter — front bottom spindle (planing) | Ø125 | mm |
| Tooling size — front bottom spindle (side planing) | Ø152 × 12 | mm |
| Tooling diameter — right & left vertical spindles | Ø110–Ø180 | mm |
| Tooling diameter — top spindle | Ø110–Ø180 | mm |
| Saw blade diameter (upper & lower) | Ø180–Ø250 | mm |
| Total power | 82.3 | kW |
| Front bottom spindle motor | 7.5 | kW |
| Right vertical spindle motor | 7.5 | kW |
| Left vertical spindle motor | 7.5 | kW |
| Top spindle motor | 11 | kW |
| Upper saw motor | 18.5 | kW |
| Lower saw motor | 22 | kW |
| Feed motor | 7.5 | kW |
| Crossbeam lifting motor | 0.75 | kW |
| Air pressure | 0.3–0.6 | MPa |
| Compressed air consumption | 0.15 | m³/min |
| Dust outlets | Ø120 × 4 + Ø150 × 2 | ports |
| Dust system air speed | 30–35 | m/s |
| Dust system air volume | 150 | m³/min |
| Overall size (L×W×H) | 4650 × 2030 × 1790 | mm |
| Weight | 4900 | kg |
