Highlights

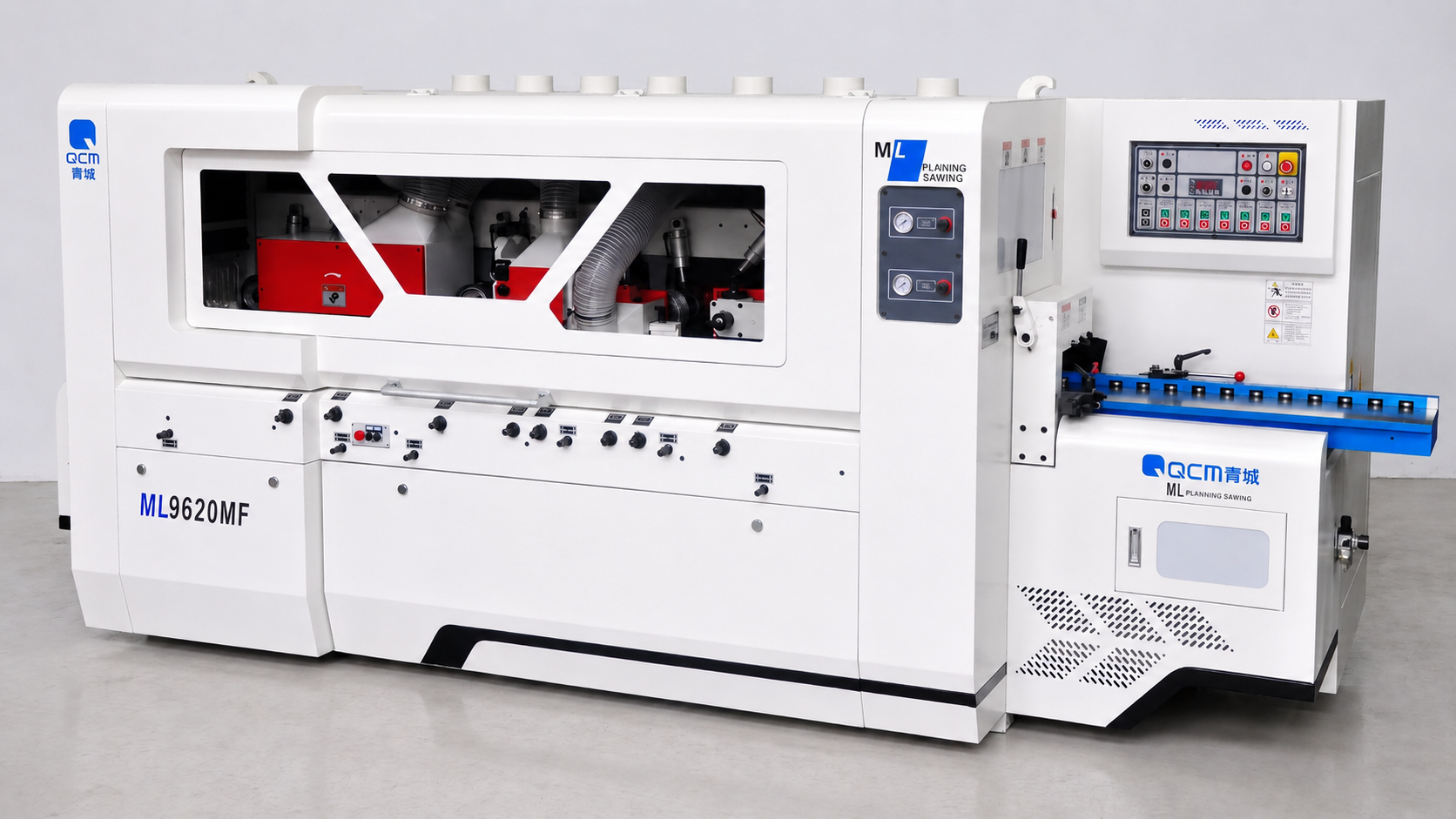

The ML9620MF Moulder and Saw Combination Machine integrates four-side moulding, fixed-width and fixed-thickness machining, and upper/lower multi-blade sawing in one production system. It is designed for efficient processing of solid wood strips, flooring, mouldings, finger-joint materials and furniture components, reducing repeated handling while improving material utilization and production efficiency.
- Maximum working width: 200 mm
- Processing thickness: 10–125 mm
- Minimum working length: 650 / 480 mm
- Feeding speed: 5–25 m/min
- Moulder spindle speed: 6,800 r/min
- Saw shaft speed: 4,500 r/min
- Total motor power: 94.5 kW
Images
Features
- The machine integrates four-side moulding and multi-blade sawing in one system, allowing solid wood to be sized, profiled and ripped in a continuous process.
- Independent moulder spindles complete four-sided machining before the upper and lower saw shafts perform multi-blade ripping, reducing repeated handling between separate machines.
- Variable-frequency feeding and multiple driven rollers provide stable material movement at 5–25 m/min for continuous solid wood production.
- Precision moulder spindles and heavy-duty upper and lower saw shafts provide stable cutting performance for flooring, wood strips, mouldings, furniture parts and finger-joint materials.
- The rigid cast machine structure, anti-kickback protection, enclosed safety cover and centralized dust extraction support reliable and safer industrial operation.
Technical data
| Specifications | Unit | ML9620MF |
|---|---|---|
| Machine type | — | Moulder & Saw Combination Machine |
| Maximum working width | mm | 200 |
| Minimum working width | mm | 20 |
| Maximum working thickness | mm | 125 |
| Minimum working thickness | mm | 10 |
| Minimum working length | mm | 650 / 480 continuous |
| Feeding speed | m/min | 5–25 |
| Moulder spindle diameter | mm | Ø40 |
| Moulder spindle speed | r/min | 6,800 |
| Saw shaft diameter | mm | Ø40 |
| Saw shaft speed | r/min | 4,500 |
| First bottom cutter diameter | mm | Ø125 |
| First bottom side cutter | mm | Ø152 × 12 |
| Left & right cutter diameter | mm | Ø110–Ø180 |
| Upper moulder cutter diameter | mm | Ø110–Ø180 |
| Upper & lower saw blade diameter | mm | Ø180–Ø250 |
| Total motor power | kW | 94.5 |
| First bottom spindle motor | kW | 7.5 |
| Right vertical spindle motor | kW | 7.5 |
| Left vertical spindle motor | kW | 7.5 |
| Upper moulder spindle motor | kW | 11 |
| Upper saw shaft motor | kW | 18.5 |
| Lower saw shaft motor | kW | 22 |
| Feeding motor | kW | 7.5 |
| Beam lifting motor | kW | 0.75 |
| Air pressure | MPa | 0.3–0.6 |
| Air consumption | m³/min | 0.15 |
| Moulding dust outlets | mm | 4 × Ø120 |
| Sawing dust outlets | mm | 7 × Ø150 |
| Dust extraction air speed | m/s | 30–35 |
| Overall dimensions | mm | 4,650 × 2,030 × 1,790 |
| Machine weight | kg | 5,500 |
