Highlights

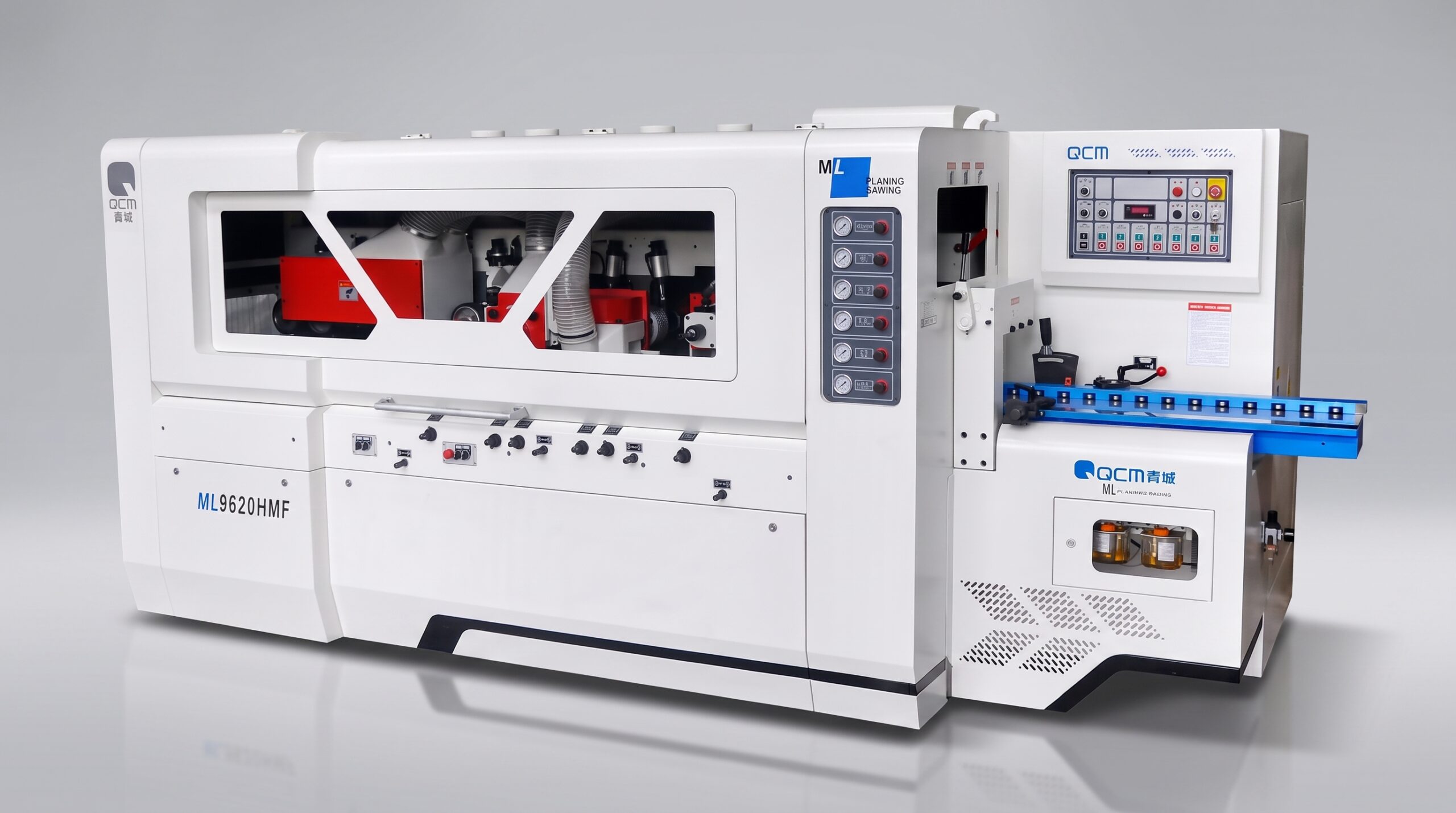

The ML9620HMF Moulder & Saw Combination Machine integrates four-side sizing and moulding with upper and lower multi-blade sawing in one machine. It is designed for fixed-width, fixed-thickness and multi-rip processing of solid wood, making it suitable for flooring, decorative strips, panels, finger-joint materials and furniture components while reducing repeated handling and wood waste.
- Maximum working width: 200 mm
- Processing thickness: 10–200 mm
- Minimum working length: 650 / 520 mm
- Feeding speed: 5–25 m/min
- Moulder spindle speed: 6,800 r/min
- Saw shaft speed: 4,500 r/min
- Total motor power: 94.5 kW

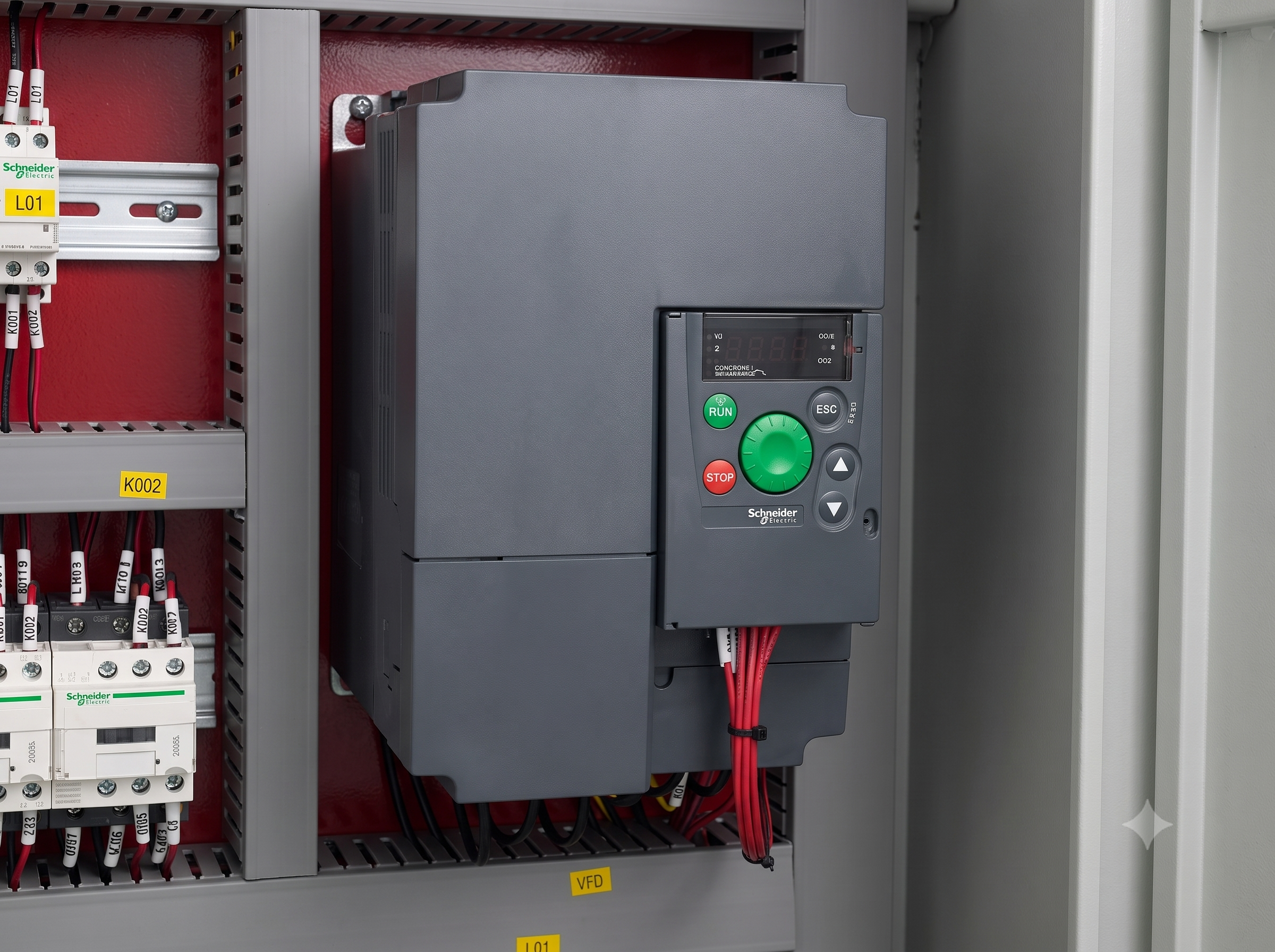

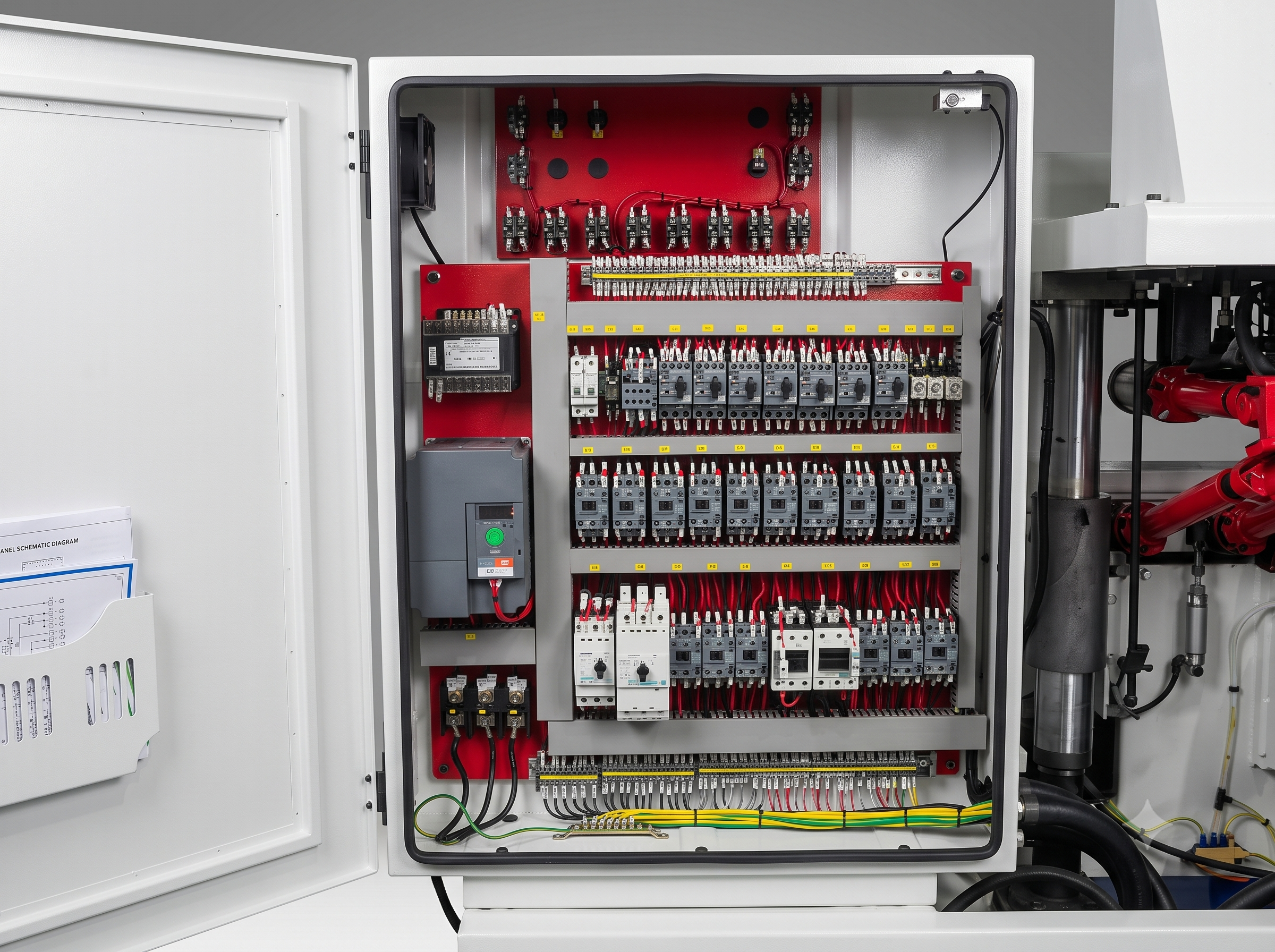

Images
Features

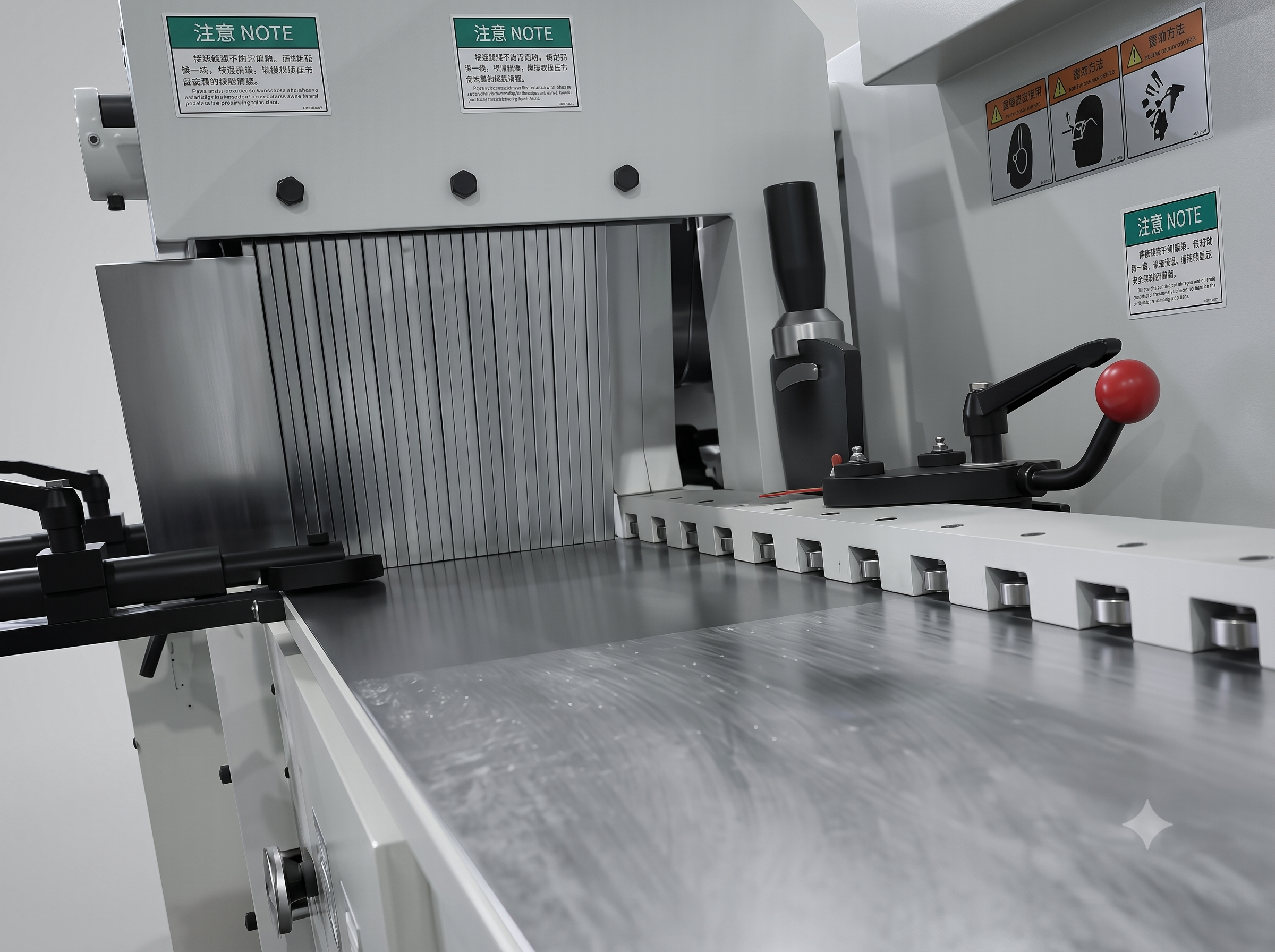

- Four-side moulding and upper/lower multi-blade sawing are integrated into one machine, allowing fixed-width, fixed-thickness and ripping operations in a continuous process.
- The high-strength integral cast-iron machine bed provides excellent rigidity and structural stability for continuous industrial production.

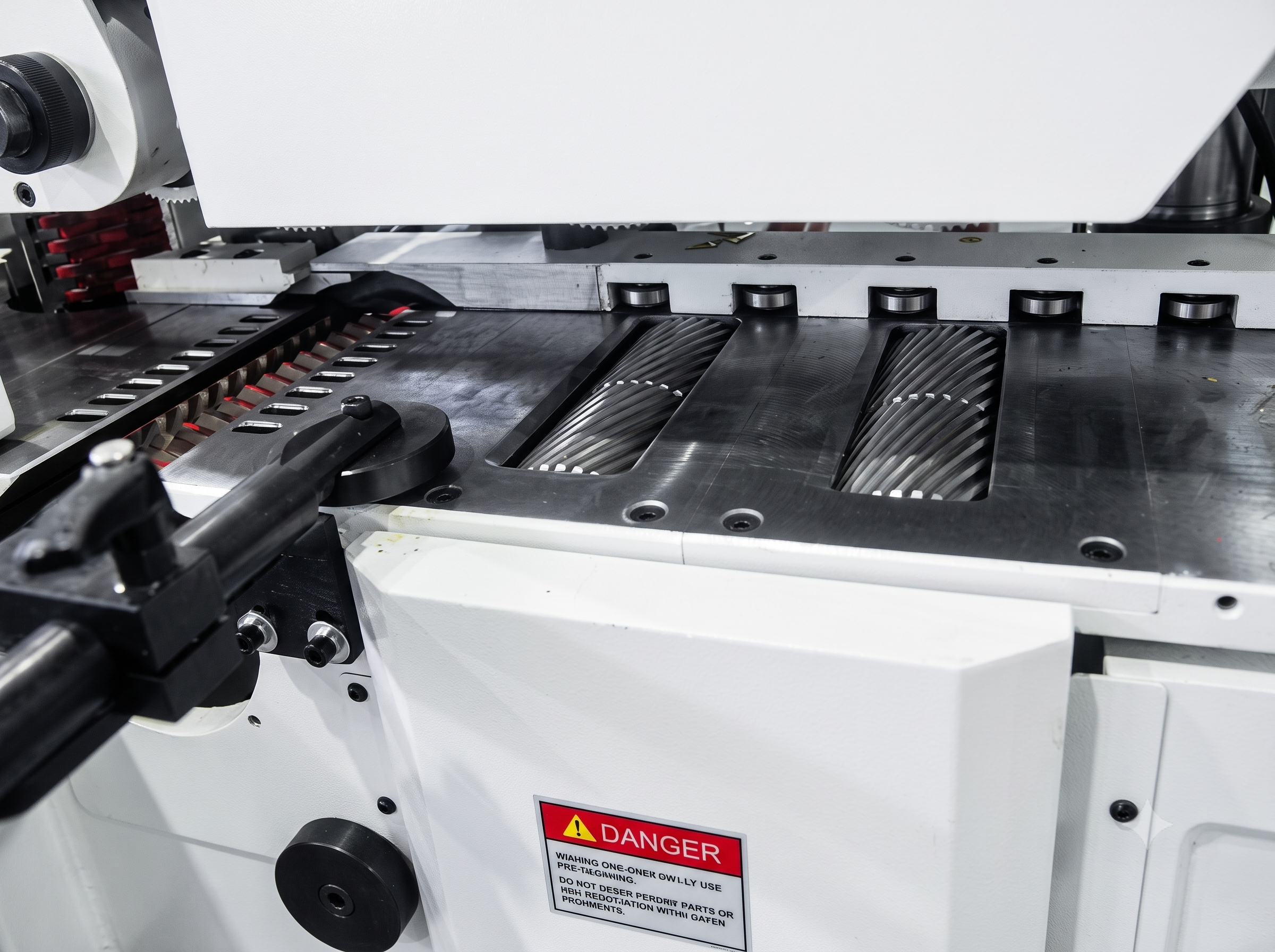

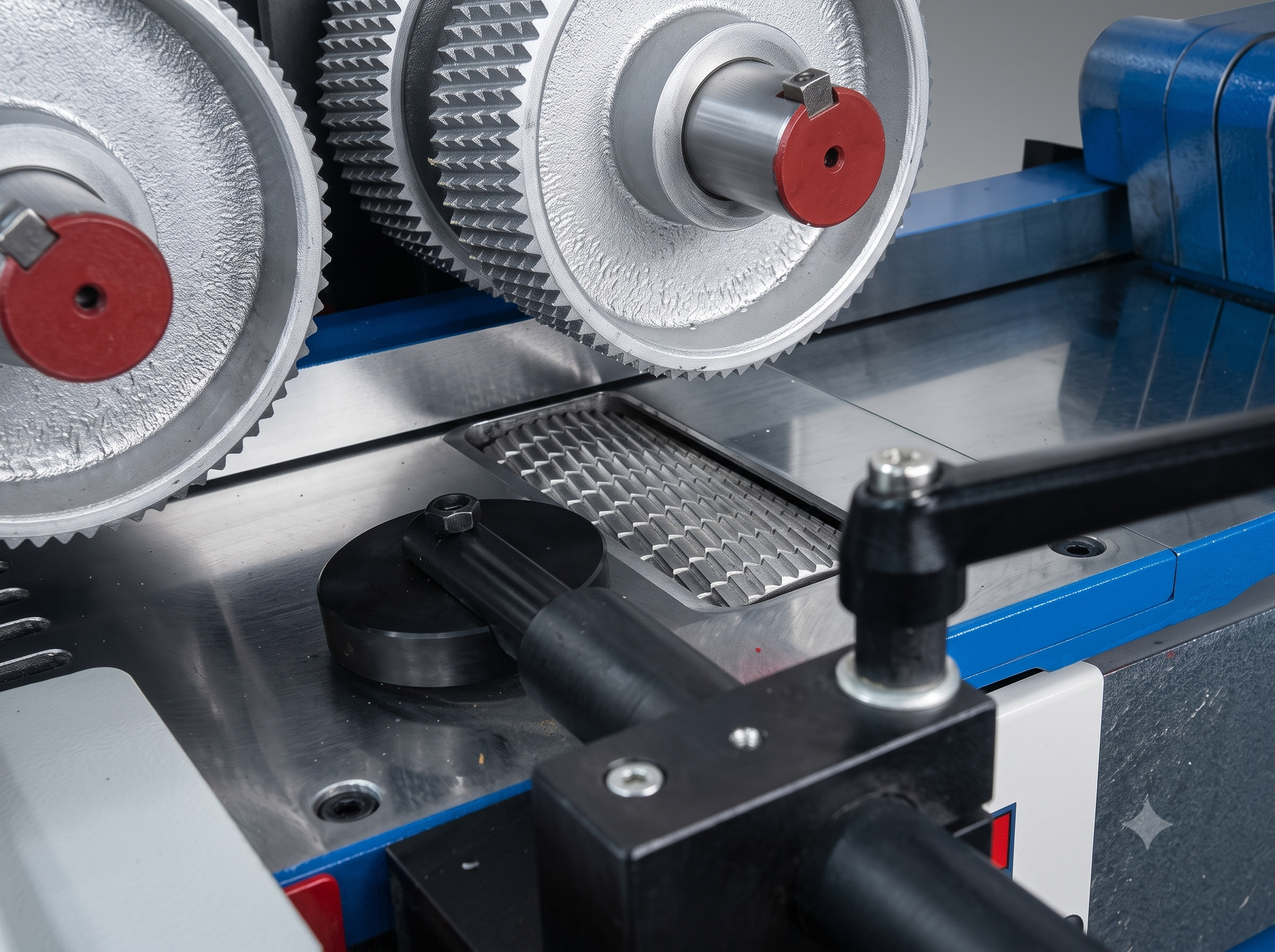

- Four universal-joint-driven lower feed rollers and external side-pressure devices provide smooth, powerful feeding while helping prevent workpiece deviation.

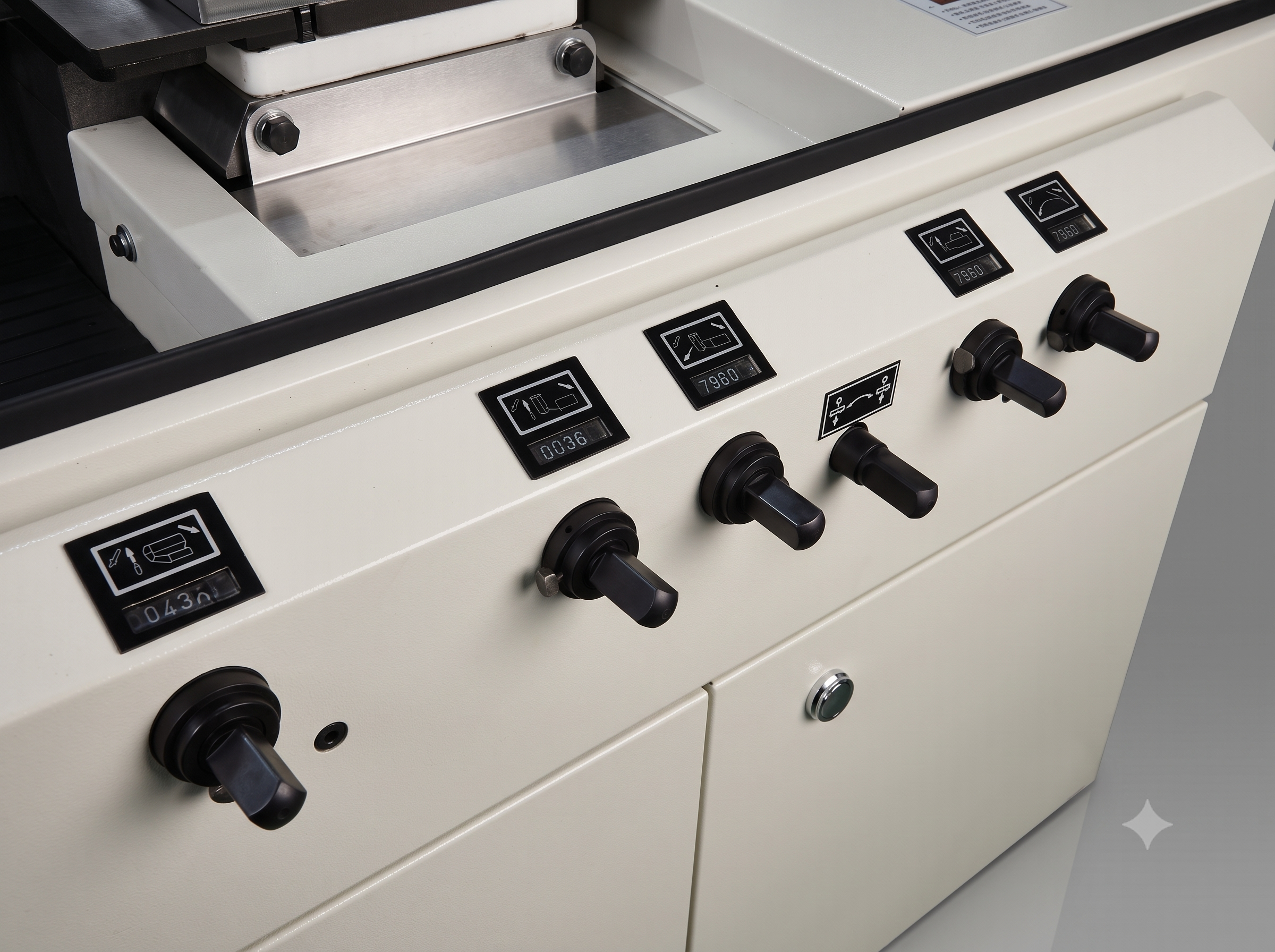

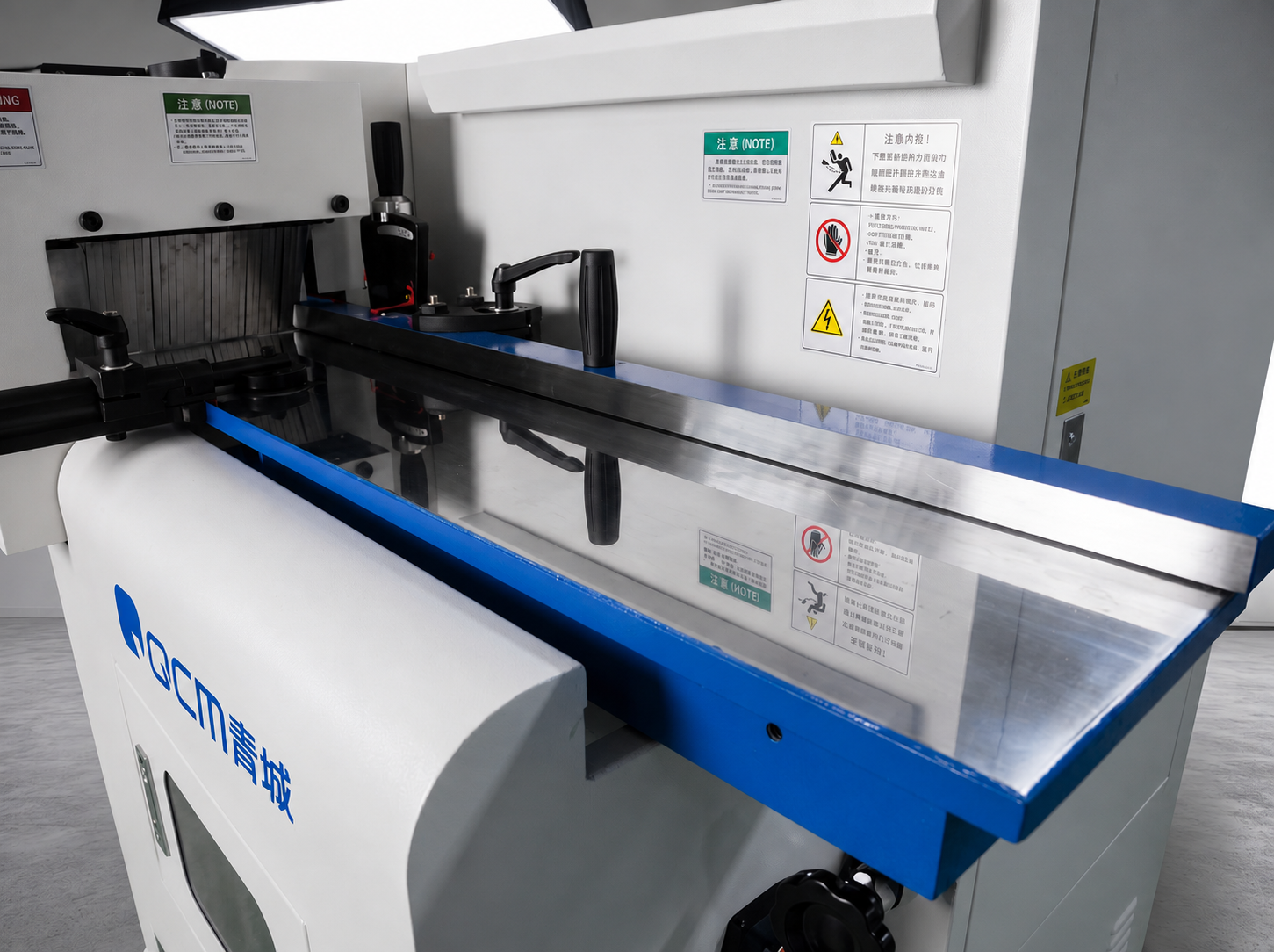

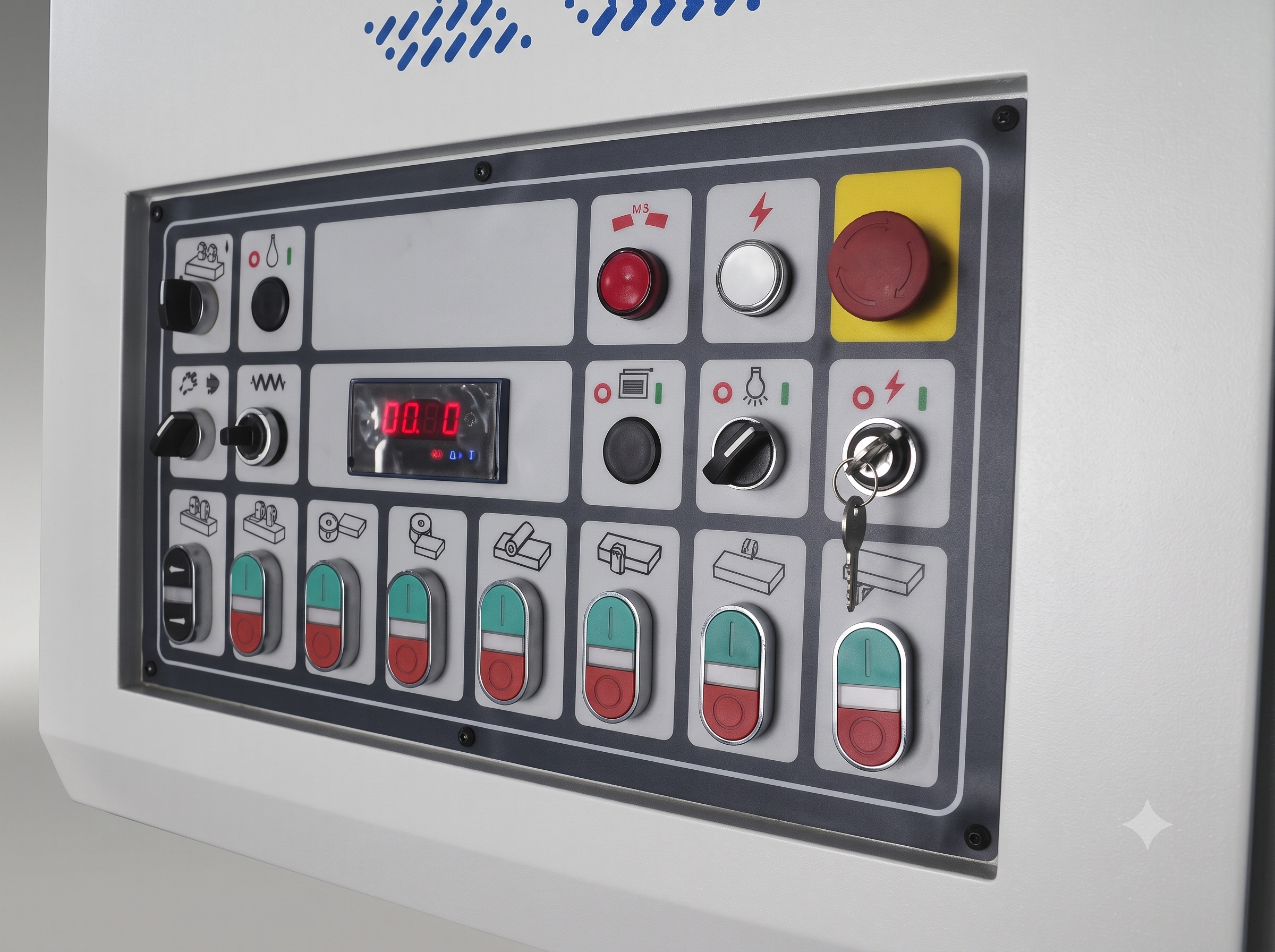

- Each cutter shaft supports lifting and front-to-back adjustment with digital position display, making machine setup more accurate and convenient.

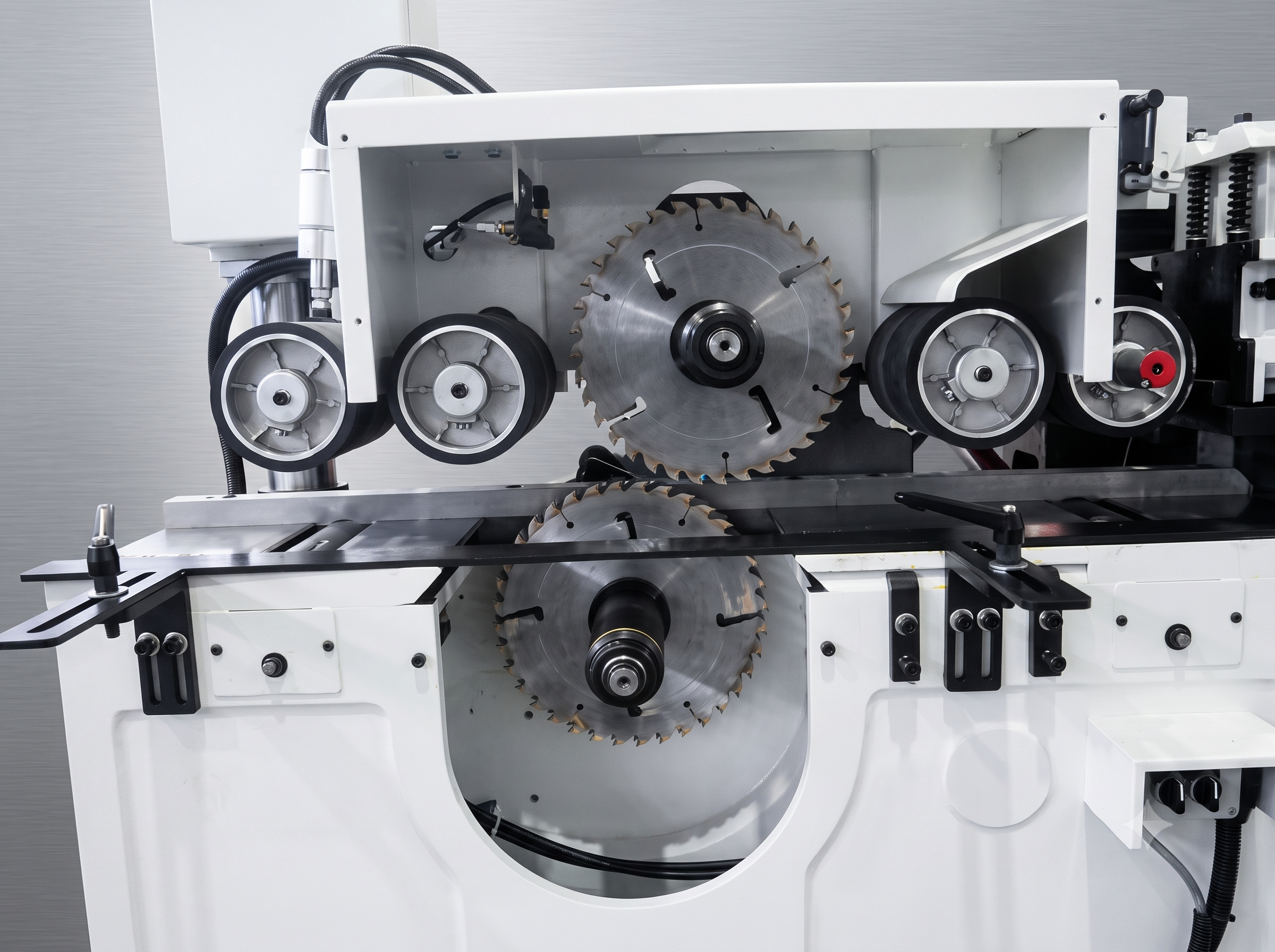

- Upper and lower saw blades perform efficient multi-rip slicing with reduced material loss, while anti-kickback protection and a fully enclosed safety cover improve operational safety.
Technical data
| Specifications | Unit | ML9620HMF |
|---|---|---|
| Maximum working width | mm | 200 |
| Minimum working width | mm | 20 |
| Maximum working thickness | mm | 200 |
| Minimum working thickness | mm | 10 |
| Minimum working length (intermittent / continuous) | mm | 650 / 520 |
| Movable worktable lifting stroke | mm | 6 |
| Movable guide plate travel | mm | 6 |
| Saw shaft diameter | mm | Ø50 |
| Saw shaft keyway | mm | 10 × 2 |
| Saw shaft speed | r/min | 4,500 |
| Moulder spindle diameter | mm | Ø40 |
| Front lower / left / right spindle speed | r/min | 6,800 |
| Feeding speed | m/min | 5–25 |
| Feed roller diameter | mm | Ø140 |
| Front lower flat cutter diameter | mm | Ø125 |
| Front lower side cutter | mm | Ø152 × 12 |
| Left & right vertical cutter diameter | mm | Ø110–Ø180 |
| Upper moulder cutter diameter | mm | Ø110–Ø180 |
| Upper & lower saw blade diameter | mm | Ø250–Ø320 |
| Total motor power | kW | 94.5 |
| Front lower spindle motor | kW | 7.5 |
| Right vertical spindle motor | kW | 7.5 |
| Left vertical spindle motor | kW | 7.5 |
| Upper moulder spindle motor | kW | 11 |
| Upper saw shaft motor | kW | 22 |
| Lower saw shaft motor | kW | 30 |
| Saw shaft lifting motor | kW | 0.37 each |
| Feeding motor | kW | 7.5 |
| Beam lifting motor | kW | 0.75 |
| Air pressure | MPa | 0.3–0.6 |
| Air consumption | m³/min | 0.15 |
| Moulding dust outlets | mm | 4 × Ø120 |
| Sawing dust outlets | mm | 7 × Ø150 |
| Dust extraction air speed | m/s | 30–35 |
| Dust extraction air demand | m³/min | 150 |
| Overall dimensions | mm | 4,650 × 2,000 × 1,850 |
| Machine weight | kg | 5,500 |
