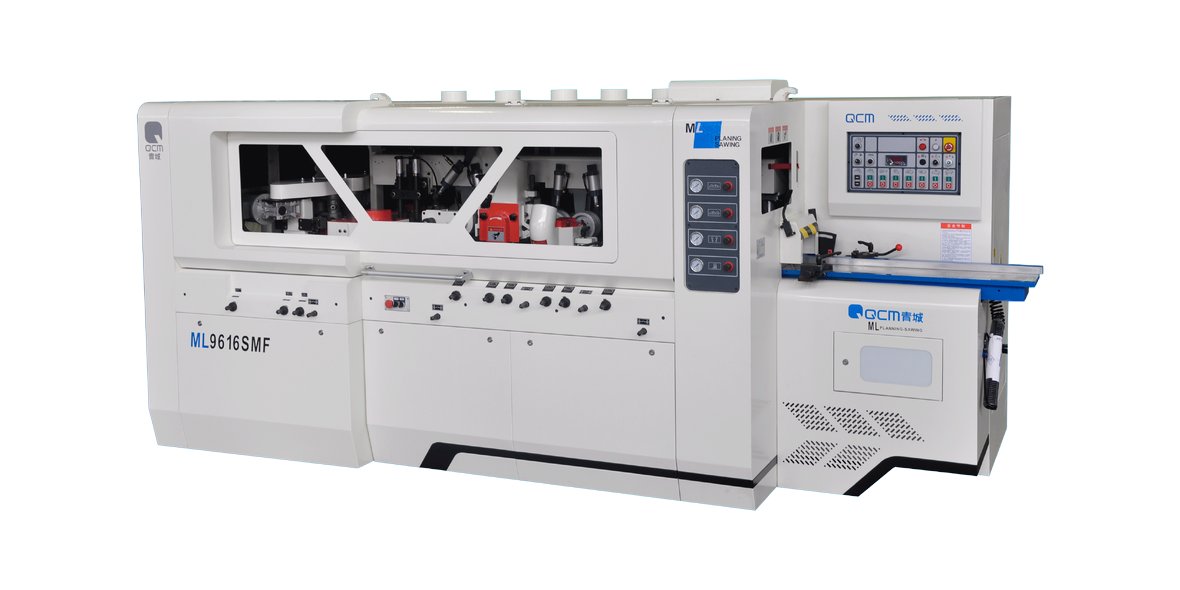

ML9616SMF — 6-Spindle Planer & Saw Union Machine
The ML9616SMF is a 6-spindle four-side planing machine with a right vertical saw spindle, designed to process workpieces to precise width and thickness while also performing sawing/cutting in the same pass.
Capacity: 35–160 mm width, 15–120 mm thickness, feed speed 6–30 m/min.
| Item | Value | Unit/Notes |
|---|---|---|
| Model | ML9616SMF | 6-spindle planer & saw union |
| Max planing/working width | 160 | mm |
| Min working width | 35 | mm |
| Max planing/working thickness | 160 | mm |
| Max working thickness | 120 | mm |
| Min working thickness | 15 | mm |
| Min working length (non-continuous feed) | 650 | mm |
| Min working length (continuous feed) | 480 | mm |
| Max lift stroke of movable worktable | 6 | mm |
| Max travel of guide bar | 6 | mm |
| Saw spindle diameter | Ø50 | mm |
| Saw spindle keyway | 10 × 2 | mm |
| Saw spindle speed | 4000 | r/min |
| Cutter spindle diameter | Ø40 | mm |
| Feed roller diameter | Ø140 | mm |
| Front cutter spindle speed | 6800 | r/min |
| Other cutter spindle speed | 8000 | r/min |
| Feed speed range | 6–30 | m/min |
| Total power | 58.3 | kW |
| Front bottom cutter motor | 4 | kW |
| Right vertical spindle motor | 5.5 | kW (each) |
| Left vertical spindle motor | 5.5 | kW (each) |
| Top cutter spindle motor | 5.5 | kW (each) |
| Left saw spindle motor | 15 | kW (each) |
| Right saw spindle motor | 15 | kW (each) |
| Feed motor / rear auxiliary feed motors | 5.5 & 0.75×2 | kW |
| Crossbeam lifting motor | 0.75 | kW |
| Tooling diameter — front bottom spindle (planing) | Ø125 | mm |
| Tooling size — front bottom spindle (side planing) | Ø152 × 12 | mm |
| Tooling diameter — left vertical spindle (excluding) | Ø115–Ø170 | mm |
| Tooling diameter — top spindle | Ø105–Ø150 | mm |
| Saw blade diameter (left & right) | Ø160–Ø250 | mm |
| Air pressure | 0.3–0.6 | MPa |
| Compressed air consumption | 0.15 | m³/min |
| Dust outlet (saw) | Ø150 × 6 | ports |
| Dust system air speed | 30–35 | m/s |
| Dust system air volume | 150 | m³/min |
| Overall size (L×W×H) | 4170 × 1530 × 1780 | mm |
| Weight | 4500 | kg |
