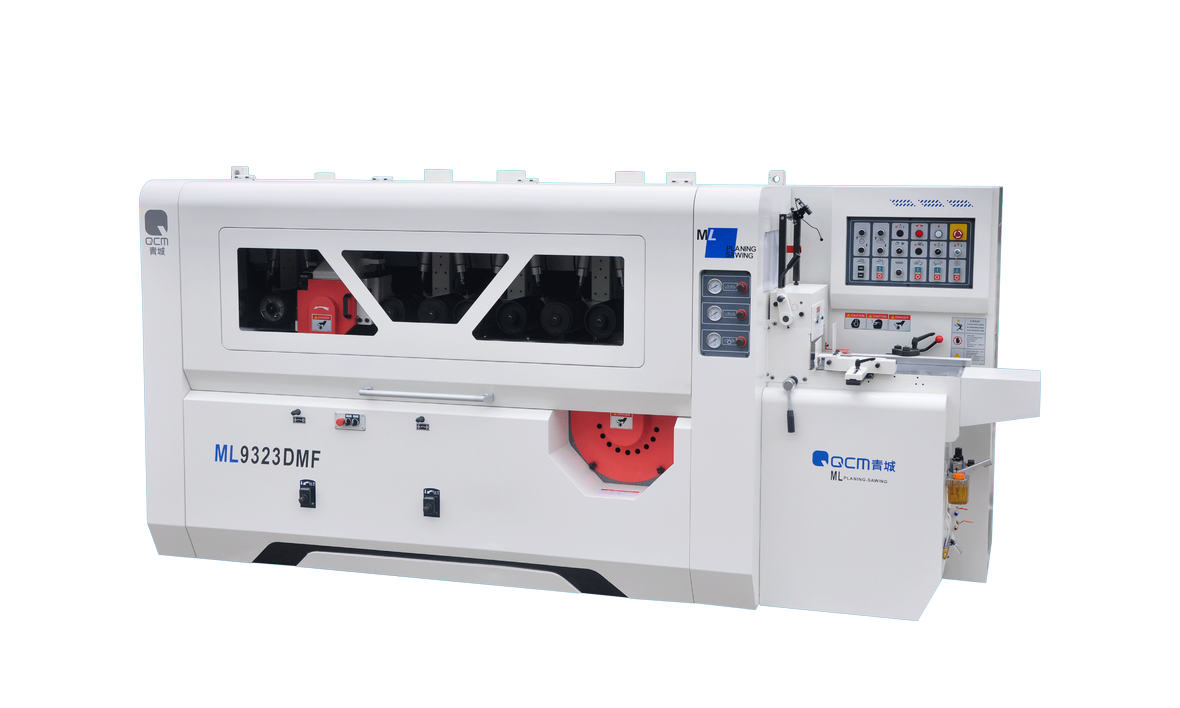

ML9323DMF — Planer & Saw Union Machine (3-Spindle)
The ML9323DMF processes up to 230 mm working width, with a variable feed speed of 6–35 m/min for efficient continuous production. It integrates bottom planing + top planing + sawing in one machine, reducing handling and saving floor space while keeping stable output.
| Item | Value | Unit/Notes |
|---|---|---|
| Model | ML9323DMF | Planer & Saw Union Machine (3-spindle) |
| Max working width | 230 | mm |
| Max working thickness | 90 | mm |
| Min working thickness | 15 | mm |
| Feed speed range | 6–35 | m/min |
| Planer spindle speed | 6800 | r/min |
| Saw spindle speed | 4500 | r/min |
| Max cutting depth per pass (bottom planer) | 3 | mm |
| Max cutting depth per pass (top planer) | 5 | mm |
| Max lift stroke (rear worktable) | 4 | mm |
| Max adjustment of guide bar | 8 | mm |
| Planer spindle diameter | Ø40 | mm |
| Saw spindle diameter | Ø50 | mm |
| Saw spindle keyway | 12 × 2 | mm |
| Saw spindle sleeve keyway | 20 × 2 | mm |
| Feed roller diameter | Ø140 | mm |
| Total power | 42.5 | kW |
| Bottom planer motor | 7.5 | kW |
| Top planer motor | 7.5 | kW |
| Saw motor | 22 | kW |
| Saw lift motor | 0.75 | kW |
| Feeding motor | 4 | kW |
| Lifting motor | 0.75 | kW |
| Bottom planer cutter (OD × bore) | Ø125 × Ø40 | mm |
| Top planer cutter (OD × bore) | Ø125–Ø160 × Ø40 | mm |
| Saw blade (OD × bore) | Ø200–Ø350 × Ø70 | mm |
| Air pressure | 0.4–0.6 | MPa |
| Dust outlet | Ø140 × 4 | ports |
| Compressed air consumption | 0.1 | m³/min |
| Overall size (L×W×H) | 365 × 160 × 170 | cm |
| Weight | 3850 | kg |
