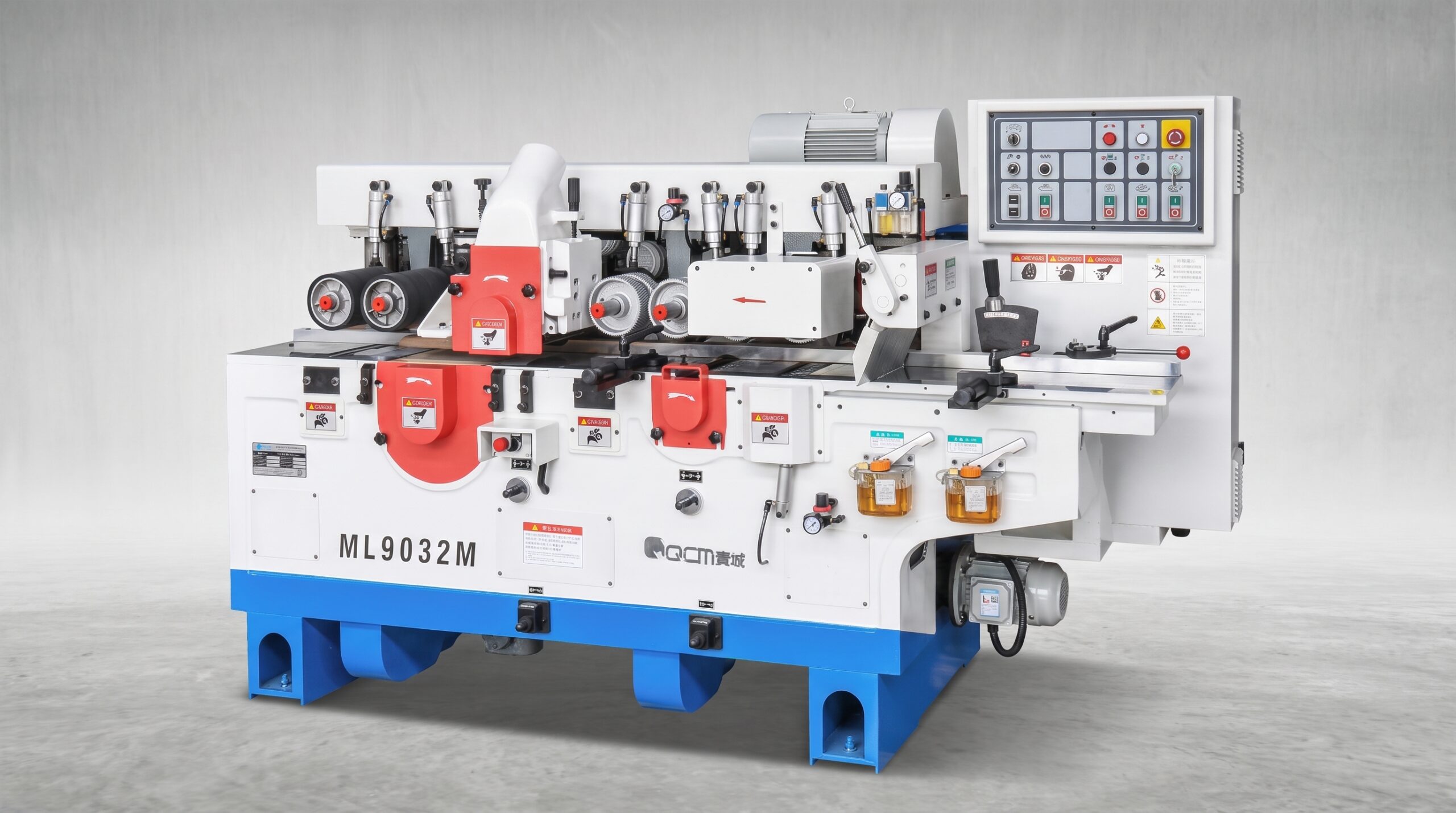

ML9032M Planer & Saw Combination Machine

Highlights

The ML9032M Planer & Saw Combination Machine integrates double-side thickness planing and multi-blade sawing into one continuous machining process. The upper and lower planer spindles accurately size both surfaces of the workpiece before multi-piece ripping, making the machine suitable for producing thin solid wood boards and strips used in wood mouldings, veneered panels, solid wood doors and furniture components. Its heavy cast structure, multiple driven feed rollers and variable-frequency feeding provide stable performance for continuous solid wood production.

• Maximum processing width: 200 mm
• Processing thickness: 10–75 mm
• Feeding speed: 10–36 m/min
• Planer spindle speed: 6,000 r/min
• Saw shaft speed: 4,500 r/min
• Maximum saw blade diameter: Ø250 mm
• Total motor power: 36 kW

Images

Features

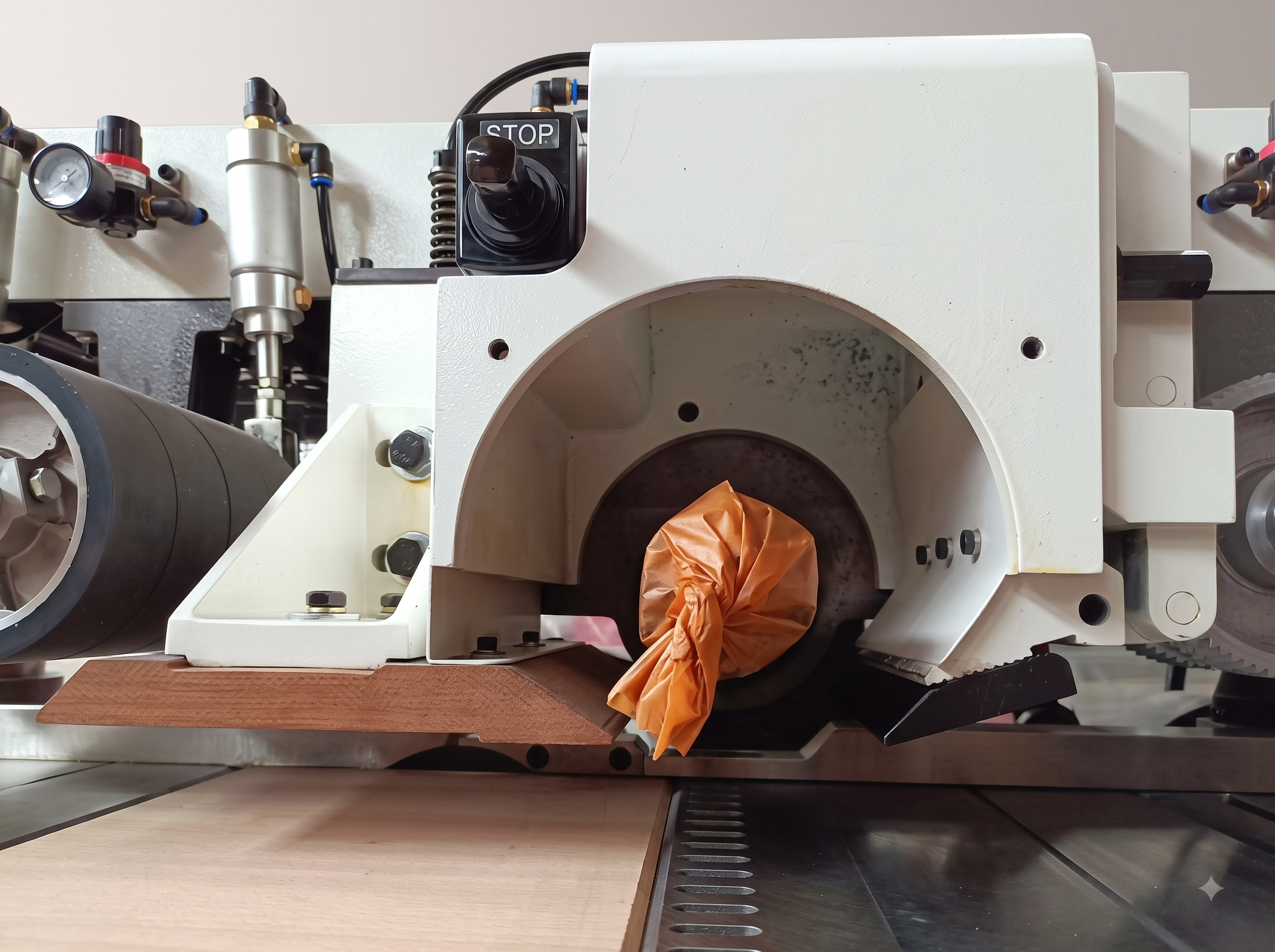

• Integrates upper and lower precision thickness planing with multi-blade ripping, completing thickness sizing and strip cutting in one continuous process.
• Equipped with 9 active feed rollers — 6 lower and 3 upper — driven through universal couplings for smooth and powerful material feeding.
• Pneumatic floating driven rollers on the movable worktable improve feeding stability when processing bent or slightly deformed wood.

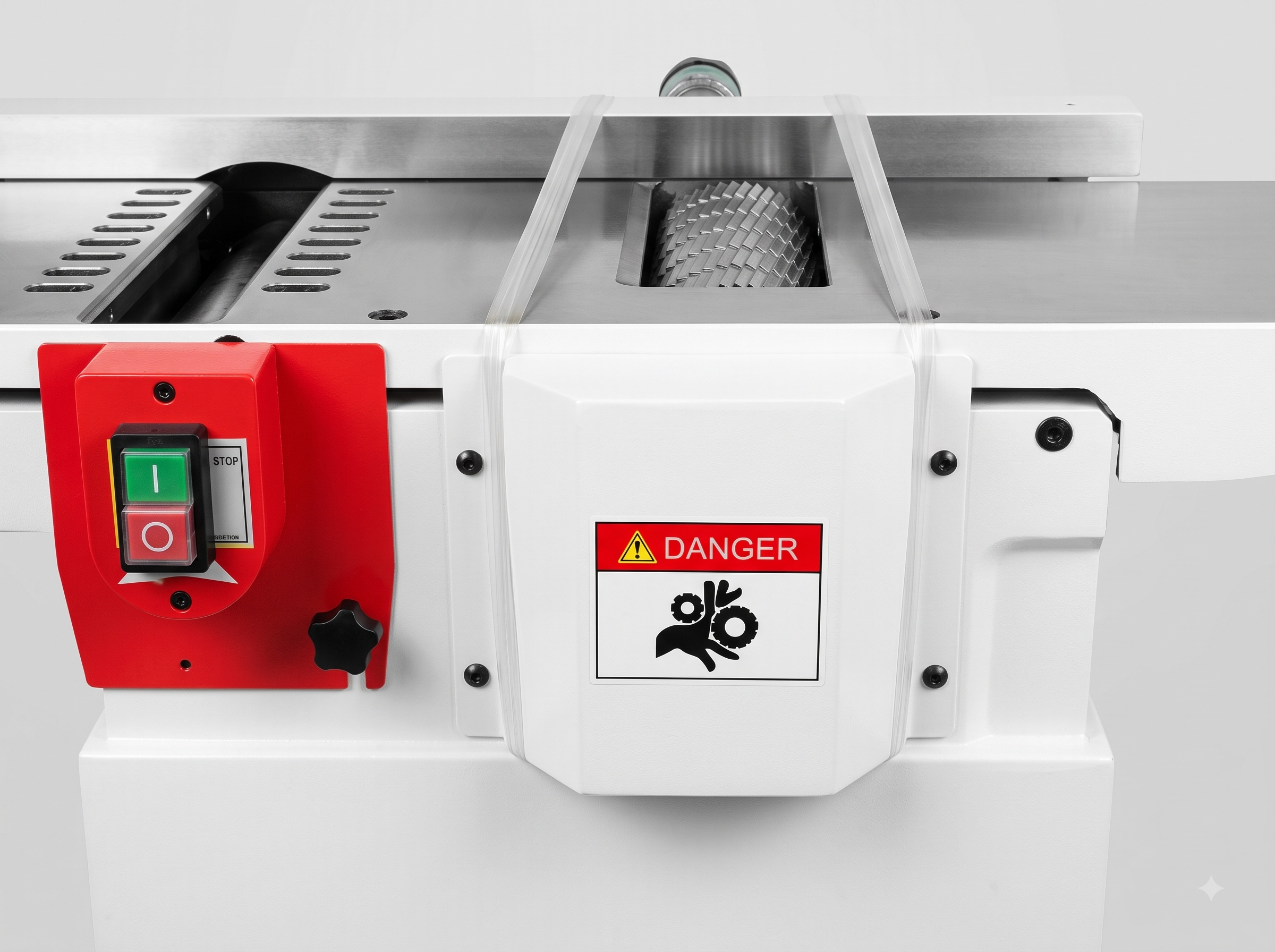

• The high-strength integral cast machine body, precision-machined spindles and hard-chrome-plated worktable provide excellent rigidity, wear resistance and long-term machining stability.

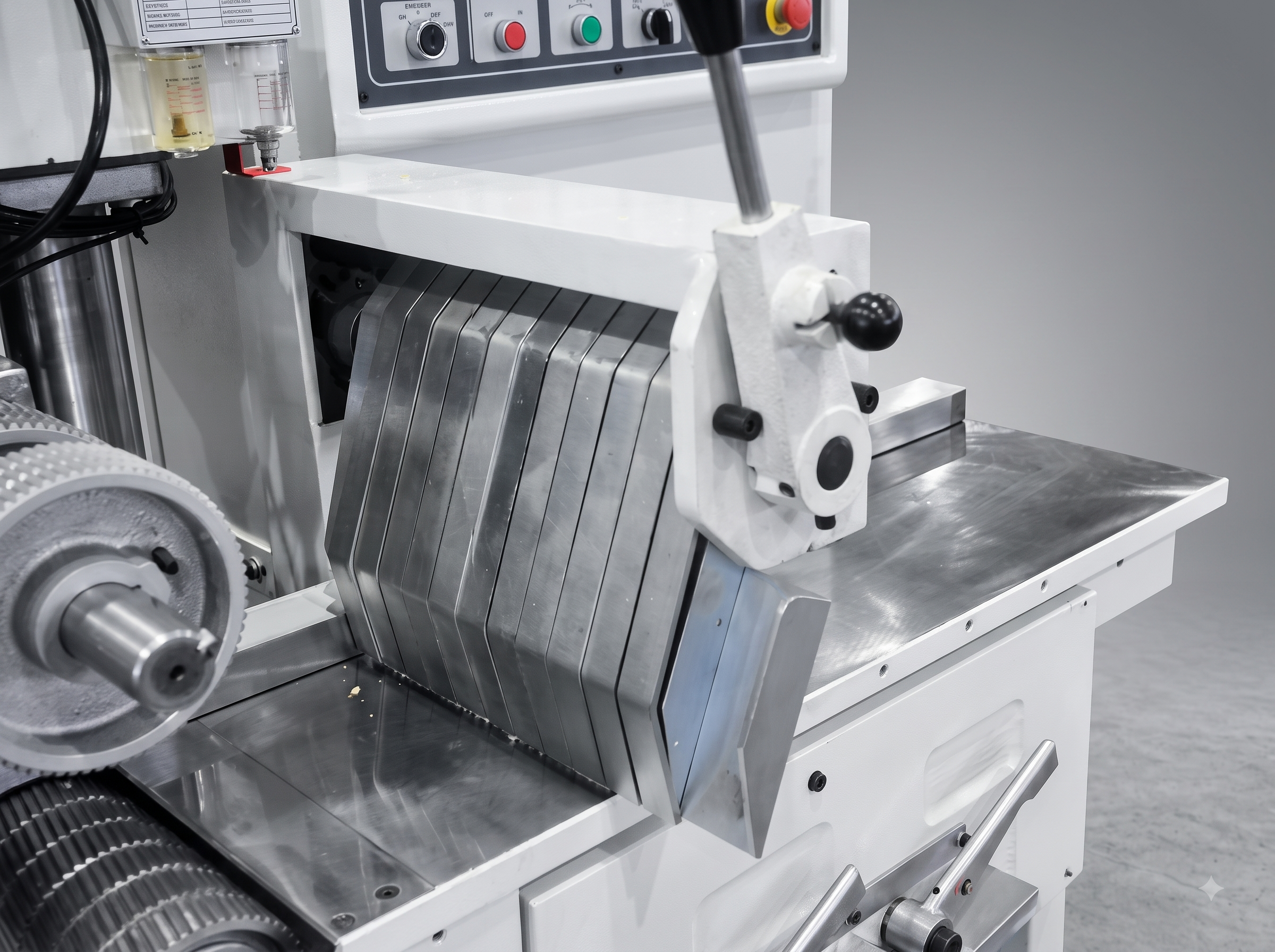

• Variable-frequency feeding, electric saw-shaft lifting and anti-kickback protection provide convenient adjustment and safer continuous operation.
