Highlights

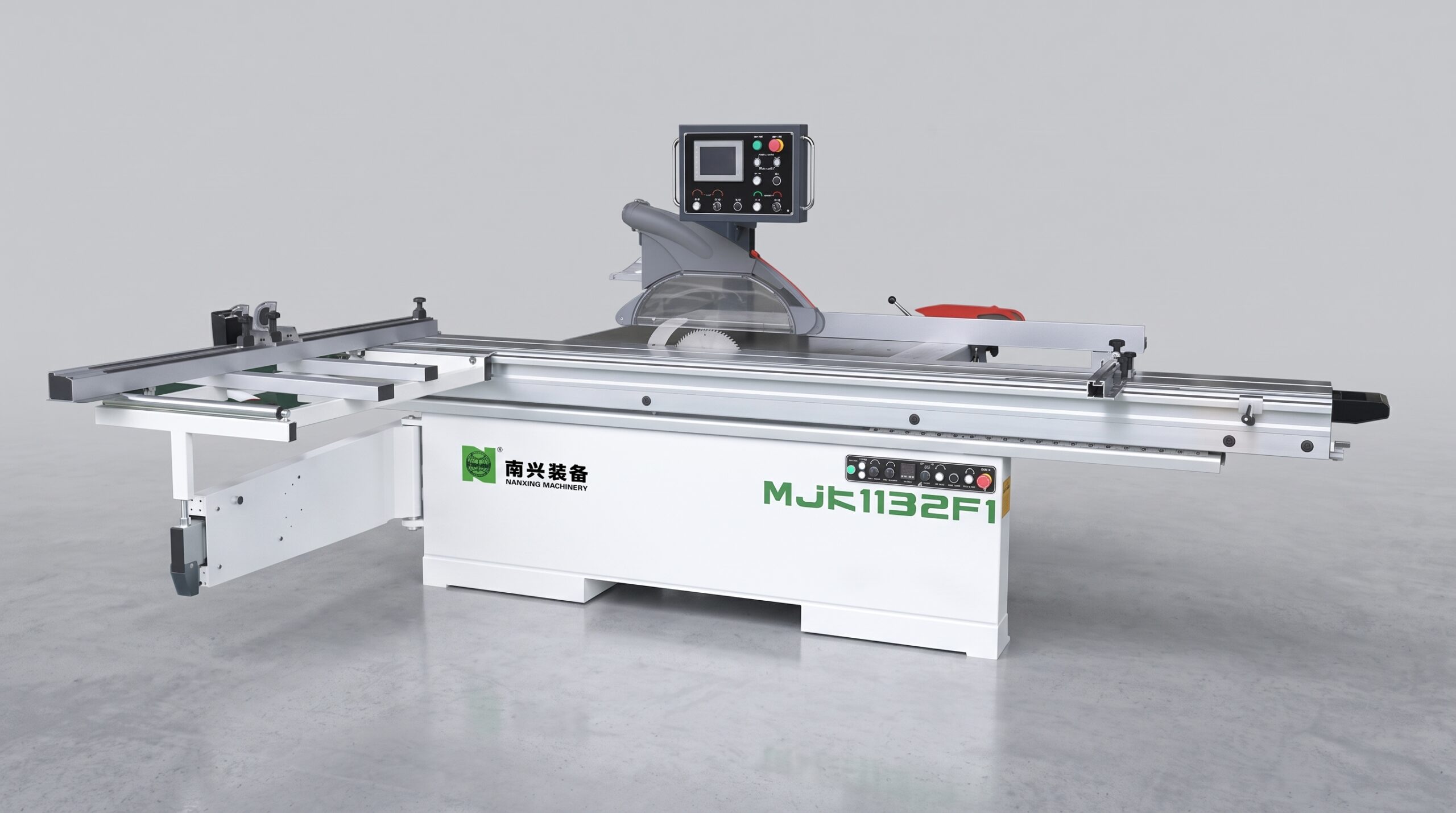

The MJK1132F1 NC Sliding Table Saw combines conventional sliding-table cutting with an NC-controlled transverse fence for faster and more accurate panel positioning. Operators can set the crosswise guide position directly from the touchscreen, reducing manual adjustment while improving repeatability in panel sizing operations. The machine provides a 3100 mm cutting length, up to 100 mm cutting thickness, a 5.5 kW main saw motor, electrically adjustable saw blade height and 0–45° blade tilting for flexible furniture and panel-processing applications.
- Cutting length: 3100 mm
- Cutting thickness at 0°: 100 mm
- Cutting thickness at 45°: 70 mm
- Main saw motor: 5.5 kW
- Main saw speed: 3800 / 5200 rpm
- Scoring saw motor: 1.1 kW
- Saw blade tilt: 0–45°
Images
Features

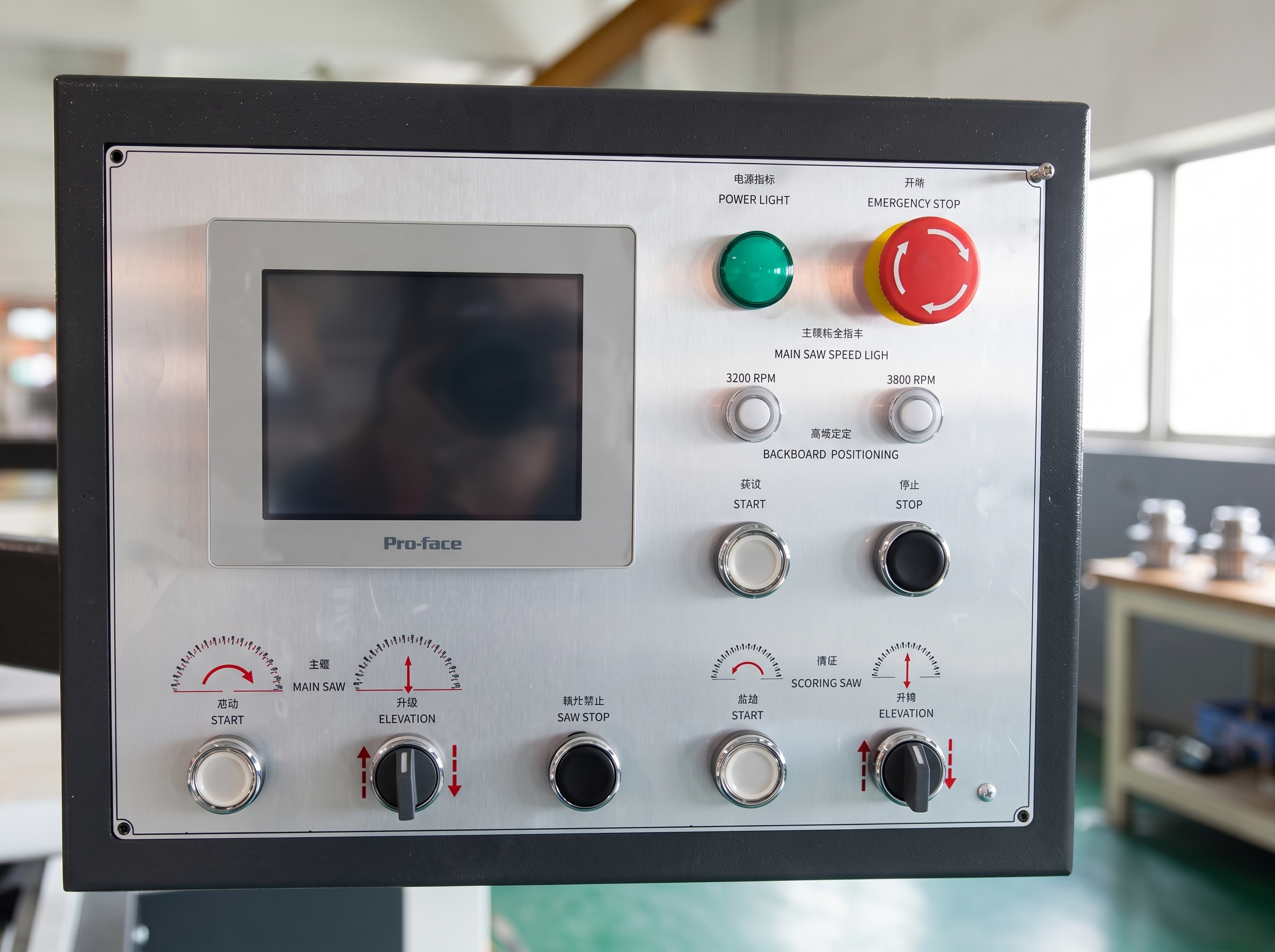

- Touchscreen-controlled transverse fence moves automatically for precise panel positioning.
- Heavy-duty machine body provides stability during cutting operations.
- Main saw blade height is electrically adjustable by push-button control.
- Main and scoring saw blades can tilt from 0–45° using the handwheel.

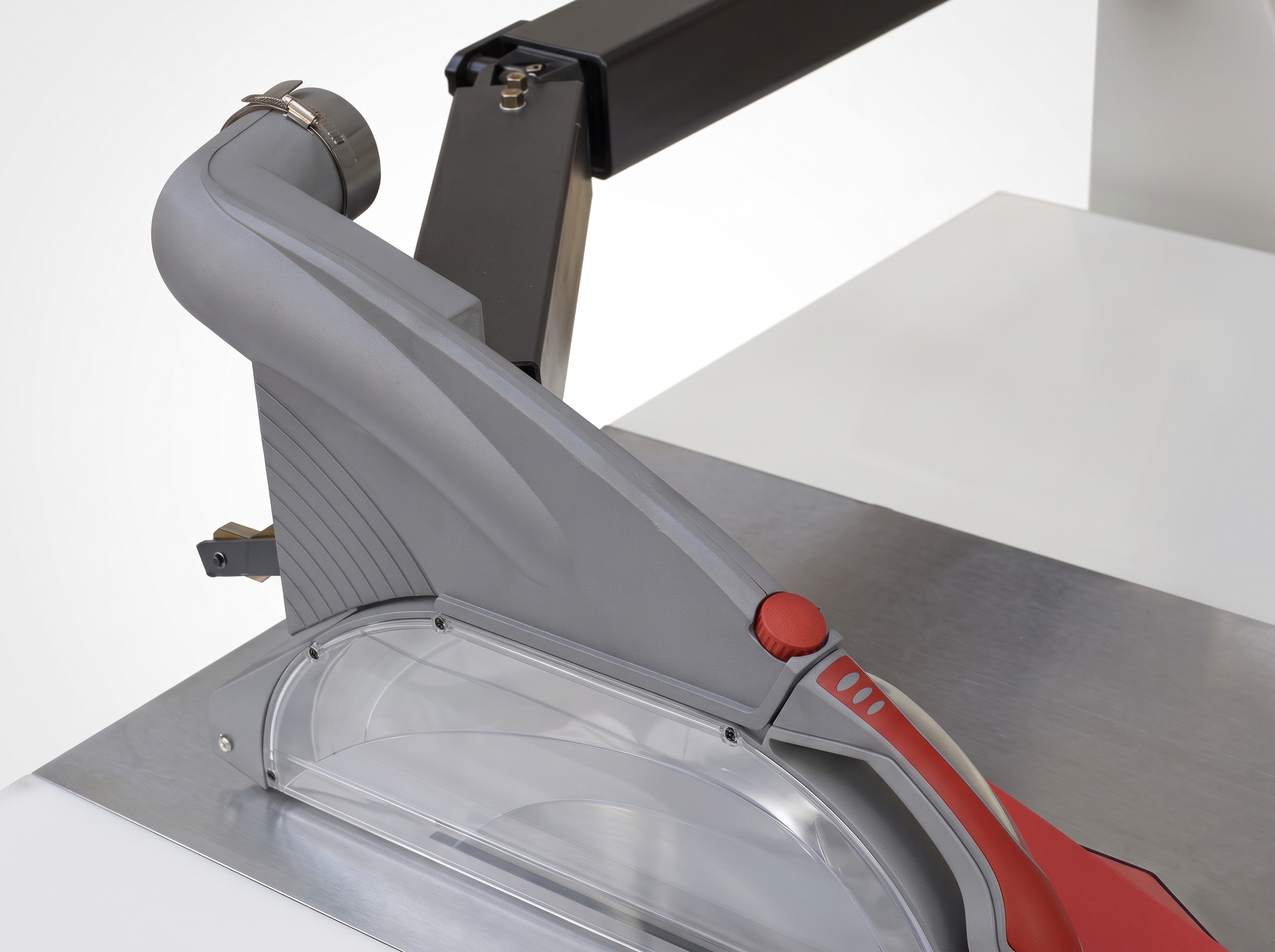

- European-style large dust extraction hood helps improve dust collection around the cutting area.
Technical data
| Specifications | Unit | MJK1132F1 |
|---|---|---|
| Cutting length | mm | 3100 |
| Cutting thickness at 0° | mm | 100 |
| Cutting thickness at 45° | mm | 70 |
| Main saw speed | rpm | 3800 / 5200 |
| Main saw motor | kW | 5.5 |
| Scoring saw speed | rpm | 9000 |
| Scoring saw motor | kW | 1.1 |
| Saw blade tilt | ° | 0–45 |
| Dust extraction | mm | Ø120 |
| Total power | kW | 7 |
| Overall dimensions | mm | 3400 × 3400 × 1680 |
| Net weight | kg | 1000 |
