Highlights

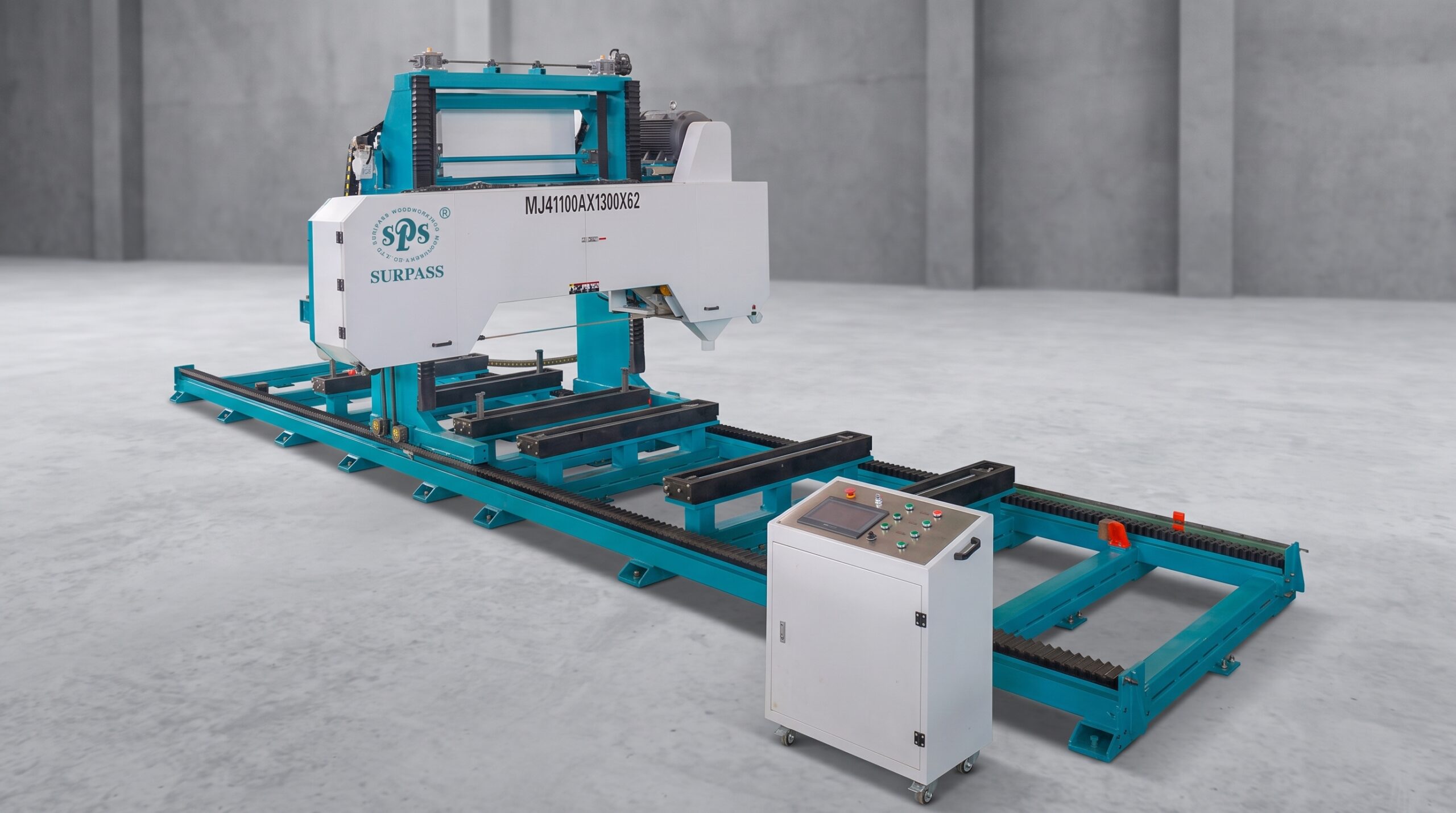

The MJ41100AX1300X62 Heavy-Duty Moving Gantry Band Saw is designed for resawing large square timber, logs and high-value hardwood into boards and slabs. With a maximum workpiece capacity of 6200 × 1300 × 1300 mm, an Ø1000 mm saw wheel, 80 mm wide band saw blade and 37 kW main motor, it is built for substantially larger timber than the MJ3180 and MJ31100 series. The machine uses a high-torque Delta servo lifting system, precision ball screw and heavy-duty linear guides for programmable thickness positioning, while the touchscreen interface provides thickness presets, height memories, cutting-length settings and machine diagnostics.
- Maximum working size: 6200 × 1300 × 1300 mm
- Saw wheel diameter: Ø1000 mm
- Main saw motor: 37 kW
- Saw blade speed: 25–31 m/s
- Worktable feed speed: 0.3–20 m/min
- Saw blade size: 7800 × 80 × 1.1 mm
- Saw kerf: 1.4–2.0 mm
Video
Images
Features
- Large 6200 × 1300 × 1300 mm capacity is designed for oversized square timber, logs and valuable hardwood resawing.
- High-torque Delta servo elevation system provides programmable saw-height positioning; the manufacturer states positioning accuracy up to 0.01 mm.
- Ø1000 × 70 mm heavy-duty saw wheels, automatic blade tensioning and NSK bearing assemblies support stable high-load cutting.
- Heavy welded gantry structure, precision ball screw and Rexroth heavy-duty linear guides improve rigidity and saw-head positioning stability.
- Weintek touchscreen control provides 16 thickness presets, 4 height memories, 8 height presets, automatic length setting and fault diagnostics.
Technical data
| Specifications | Unit | MJ41100AX1300X62 |
|---|---|---|
| Maximum working size (L × W × H) | mm | 6200 × 1300 × 1300 |
| Worktable size (L × W) | mm | 5500 × 1000 |
| Timber clamps | pcs | 8 |
| Worktable feed speed | m/min | 0.3–20 |
| Worktable feed motor | kW | 1.5 |
| Saw wheel diameter | mm | Ø1000 |
| Saw blade speed | m/s | 25–31 |
| Saw blade size (L × W × T) | mm | 7800 × 80 × 1.1 |
| Saw kerf | mm | 1.4–2.0 |
| Main saw motor | kW | 37 |
| Saw-head elevation motor | kW | 1 |
| Blade-to-worktable distance | mm | 20–1300 |
| Blade tension pressure | kg/cm² | 80 |
| Saw-head elevation speed | m/min | 2 |
| Manufacturer-stated feed speed | m/min | 16 |
| Overall dimensions (L × W × H) | mm | 9200 × 3300 × 3500 |
| Net weight | kg | 4500 |
