Highlights

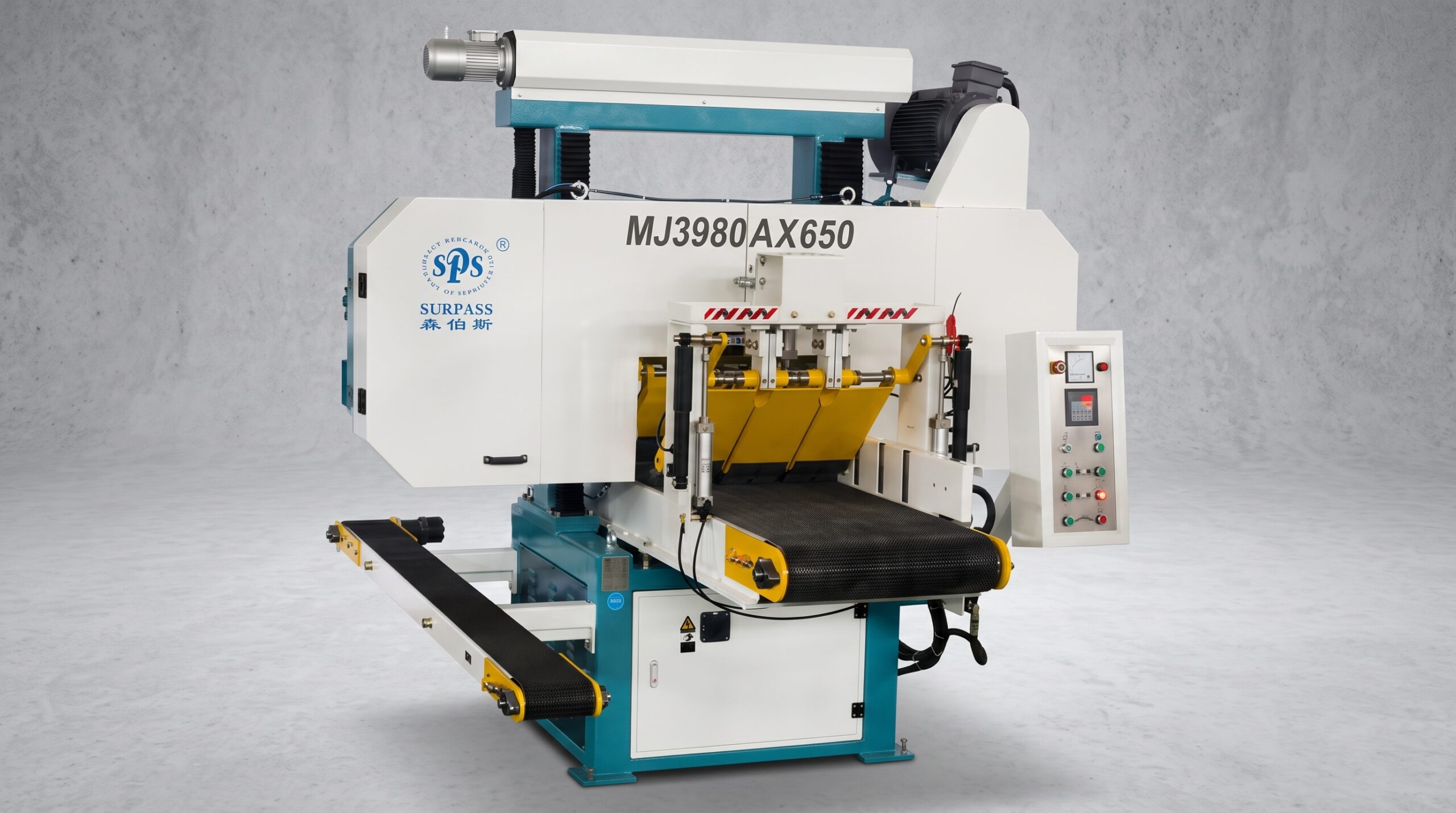

The MJ3980AX650 Heavy-Duty Horizontal Band Saw is specifically designed for resawing finger-jointed and edge-glued solid wood panels into thinner boards. It is suitable for pine, fir, oak, poplar and similar solid wood materials, and the manufacturer specifically positions it for production where thinner boards are later combined into 1220 × 2440 mm large panels. The machine combines a 650 × 200 mm maximum cutting capacity, 22 kW main saw motor, Ø800 mm saw wheels and high-torque hydraulic feeding. Its narrow kerf, smooth cutting surface and heavy-duty gantry construction are intended to improve material recovery, reduce secondary planing and support continuous panel production.
- Maximum cutting size: 650 × 200 mm
- Main saw motor: 22 kW
- Saw wheel diameter: Ø800 mm
- Feed speed: 0–5.5 m/min
- Conveyor belt width: 635 mm
- Saw kerf: 1.2–2.2 mm
- Net weight: 2300 kg
Video
Features
- Specifically designed for resawing finger-jointed and edge-glued panels into thin boards for large-panel production.
- Ø800 mm saw wheels provide a larger blade contact surface for stable, high-efficiency cutting.
- High-torque 0–5.5 m/min hydraulic feeding is optimized for wide and heavy workpieces requiring stronger feeding force.
- Digital thickness setting, precision ball screw and heavy-duty linear guides provide fast and repeatable saw-height positioning.
- Narrow 1.2–2.2 mm kerf and smooth cutting surfaces help reduce wood loss and can reduce the need for secondary thickness planing.
Technical data
| Specifications | Unit | MJ3980AX650 |
|---|---|---|
| Maximum cutting size | mm | 650 × 200 |
| Blade-to-worktable distance | mm | 3–200 |
| Conveyor belt width | mm | 635 |
| Saw wheel diameter | mm | Ø800 |
| Feed speed | m/min | 0–5.5 |
| Saw wheel elevation motor | kW | 1, servo with brake |
| Main saw motor | kW | 22 |
| Hydraulic pressure | kg/cm² | 55 |
| Dust extraction | mm | Ø102 × 2 |
| Saw blade size (L × W × T) | mm | 6000 × 50 × 0.9 |
| Saw kerf | mm | 1.2–2.2 |
| Overall dimensions (L × W × H) | mm | 3000 × 2300 × 2200 |
| Net weight | kg | 2300 |
