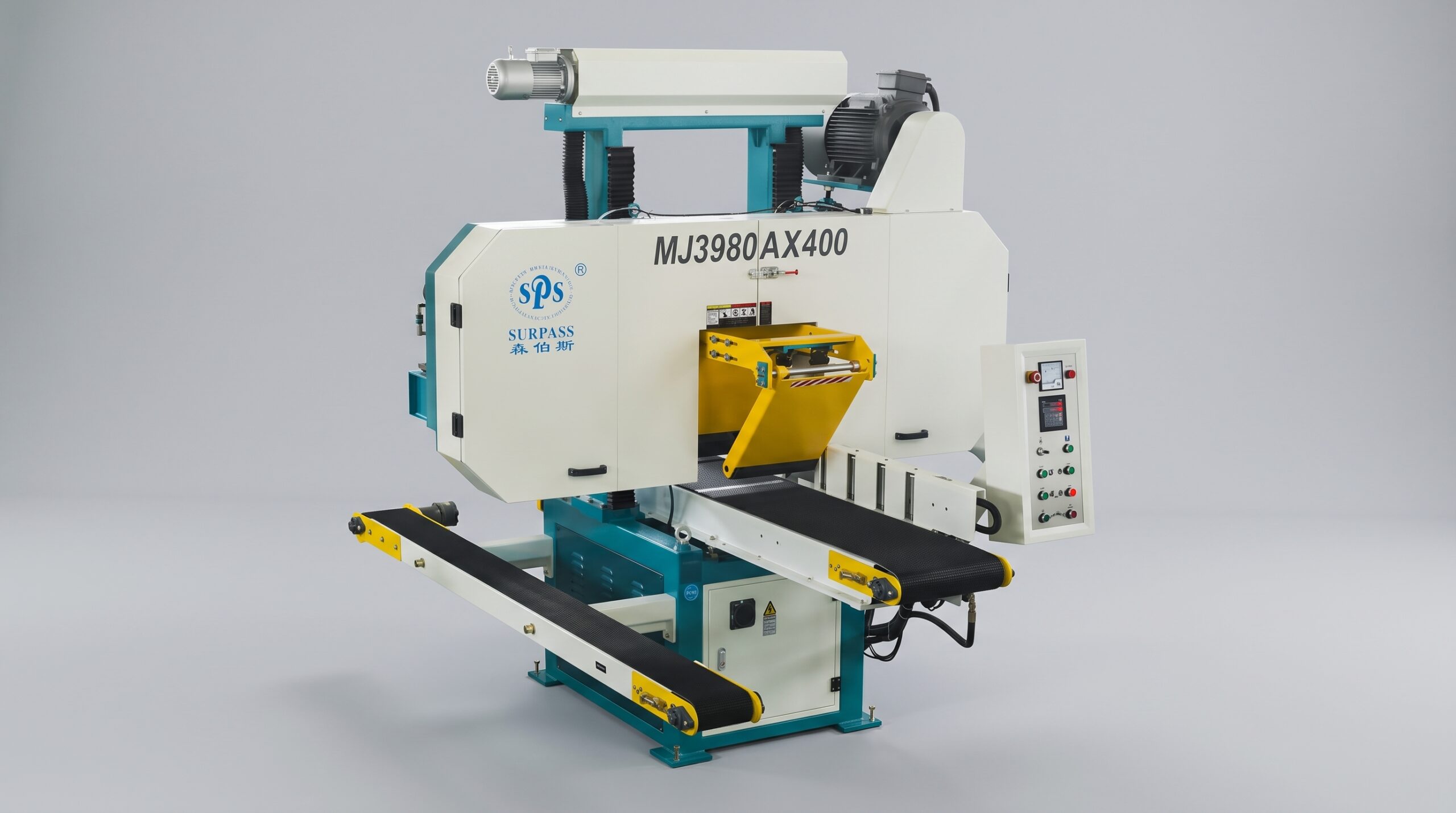

MJ3980AX400 Heavy-Duty Horizontal Band Saw

Highlights

The MJ3980AX400 Heavy-Duty Horizontal Band Saw is designed for efficient solid wood resawing and thin-board production. It is widely used for pine, fir, oak, poplar, rosewood and other hardwoods and softwoods, and is particularly suitable for large square timber around 200 mm, hard small-diameter logs and thick rosewood boards that need to be resawn into thinner boards. The machine combines an 18.5 kW main saw motor, Ø800 mm saw wheels and 0–18 m/min hydraulic feeding with a heavy-duty gantry frame and digital thickness positioning. Its narrow kerf, stable hydraulic feeding and automatic blade tensioning are designed to improve cutting efficiency and accuracy while reducing labor and material loss.

• Maximum cutting size: 400 × 300 mm
• Blade-to-worktable distance: 3–300 mm
• Saw wheel diameter: Ø800 mm
• Main saw motor: 18.5 kW
• Hydraulic feed speed: 0–18 m/min
• Conveyor belt width: 385 mm
• Saw kerf: 1.2–2.2 mm

Video

Features

• Suitable for pine, fir, oak, poplar, rosewood, square timber and small logs, especially thick material requiring thin-board resawing.
• 0–18 m/min hydraulic variable-speed feeding provides stable material movement across different wood species and cutting conditions.
• Digital thickness setting allows operators to enter the required board thickness directly for fast and repeatable positioning.
• Heavy welded gantry frame, ABBA Ø32 precision ball screw and Rexroth 35-series linear guides support stable saw-head elevation over the 300 mm range.
• Automatic blade tensioning, hydraulic return feeding and Ø800 mm wear-resistant saw wheels support continuous multi-slice resawing.
