Highlights

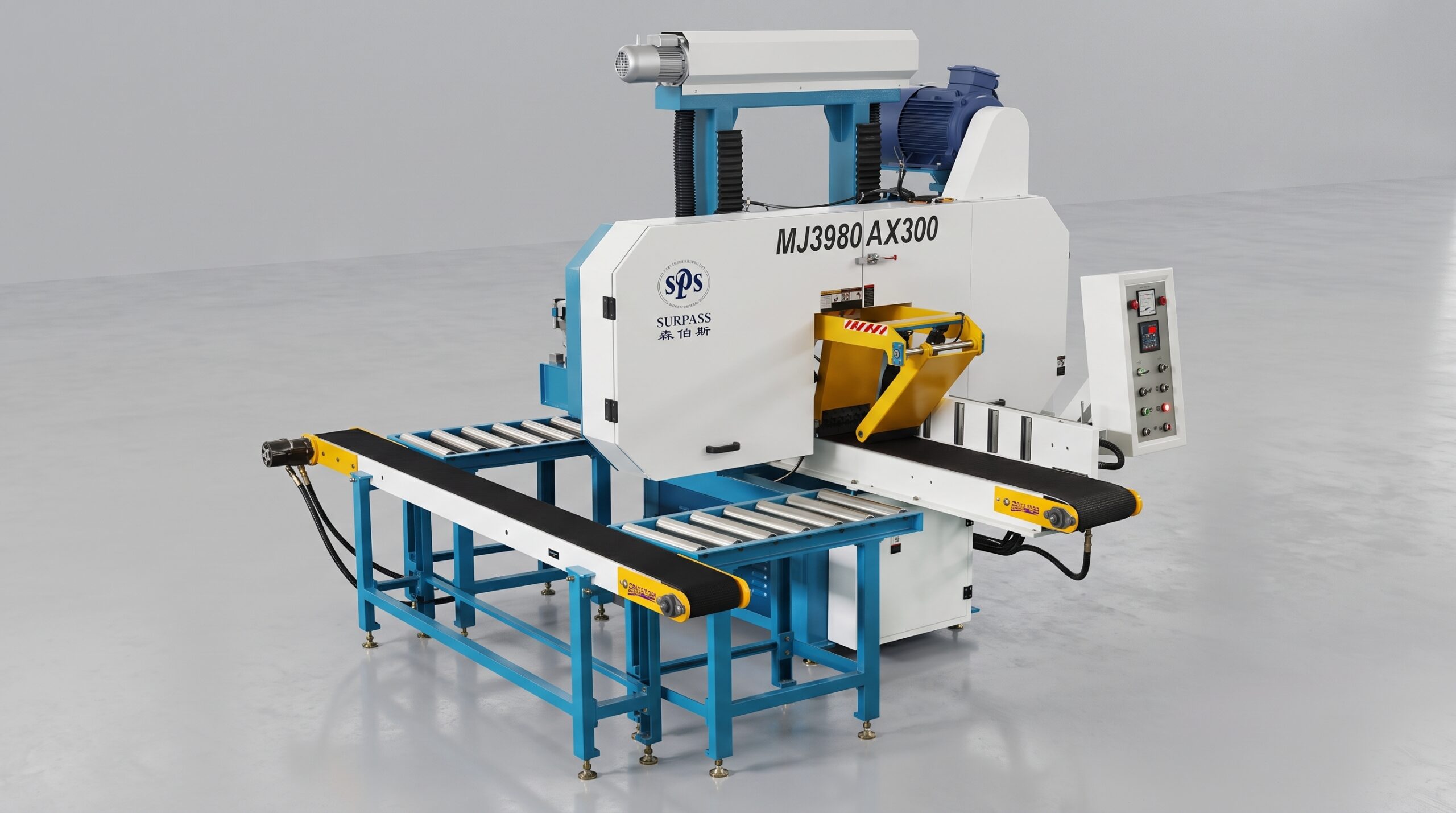

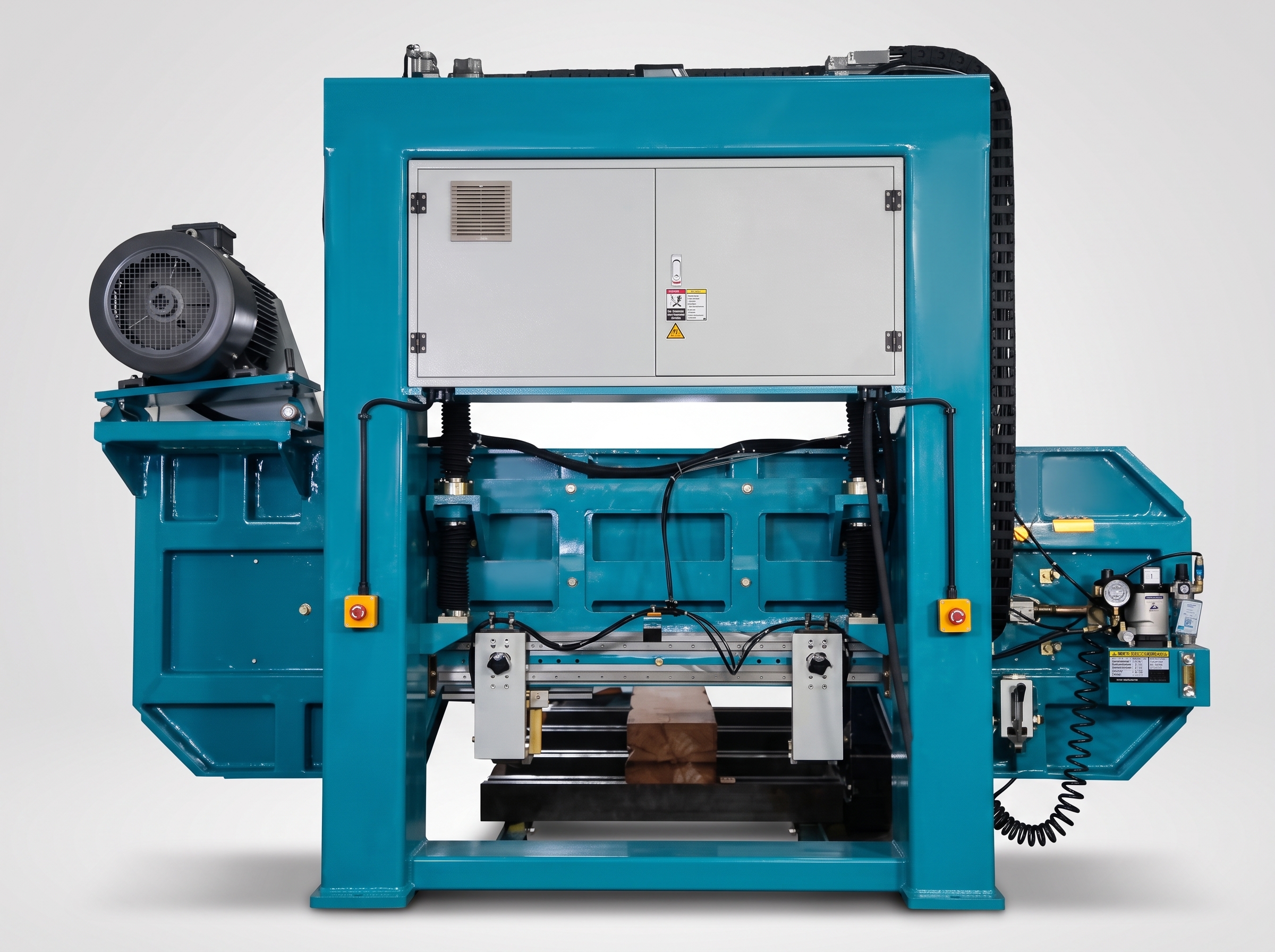

The MJ3980AX300 Horizontal Band Saw is designed for high-efficiency solid wood resawing and board production. It is widely used for processing pine, fir, oak, poplar, rosewood and other hardwoods and softwoods, and is especially suitable for large square timber around 200 mm, harder small-diameter logs and thick rosewood boards that need to be resawn into thin boards. The machine combines an 18.5 kW main saw motor, Ø800 mm saw wheels and adjustable hydraulic feeding to provide efficient and accurate cutting while reducing labor and material waste. Its heavy-duty structure, stable feeding system and controlled blade positioning are designed to improve productivity, cutting accuracy, material recovery and operational safety.
Images
Video
Features
- Suitable for pine, fir, oak, poplar, rosewood and other solid wood materials.
- Especially suitable for 200 mm-class square timber, hard small logs and thick hardwood boards.
- Efficiently resaws thick timber into thin boards with reduced kerf and material waste.
- 0–18 m/min hydraulic feeding supports stable cutting across different wood species and thicknesses.
- Heavy-duty construction provides high cutting efficiency, accuracy, labor savings, material savings and safer operation.
Technical data
| Specifications | Unit | MJ3980AX300 |
|---|---|---|
| Maximum cutting size | mm | 300 × 300 |
| Blade-to-worktable distance | mm | 3–300 |
| Conveyor belt width | mm | 285 |

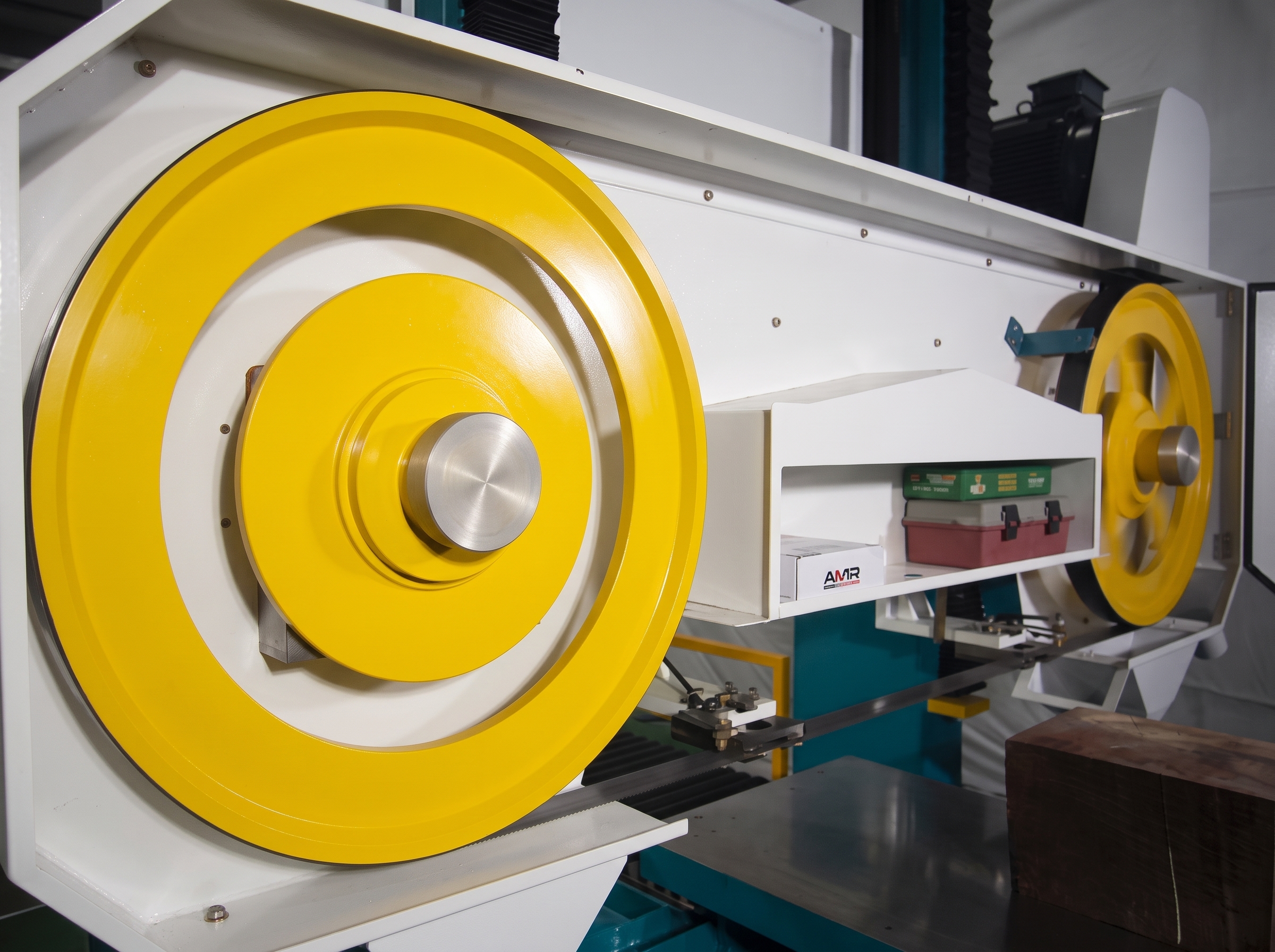

| Saw wheel diameter | mm | Ø800 |
| Feed speed | m/min | 0–18 |
| Saw wheel elevation motor | kW | 0.18 |
| Saw wheel motor | kW | 18.5 |

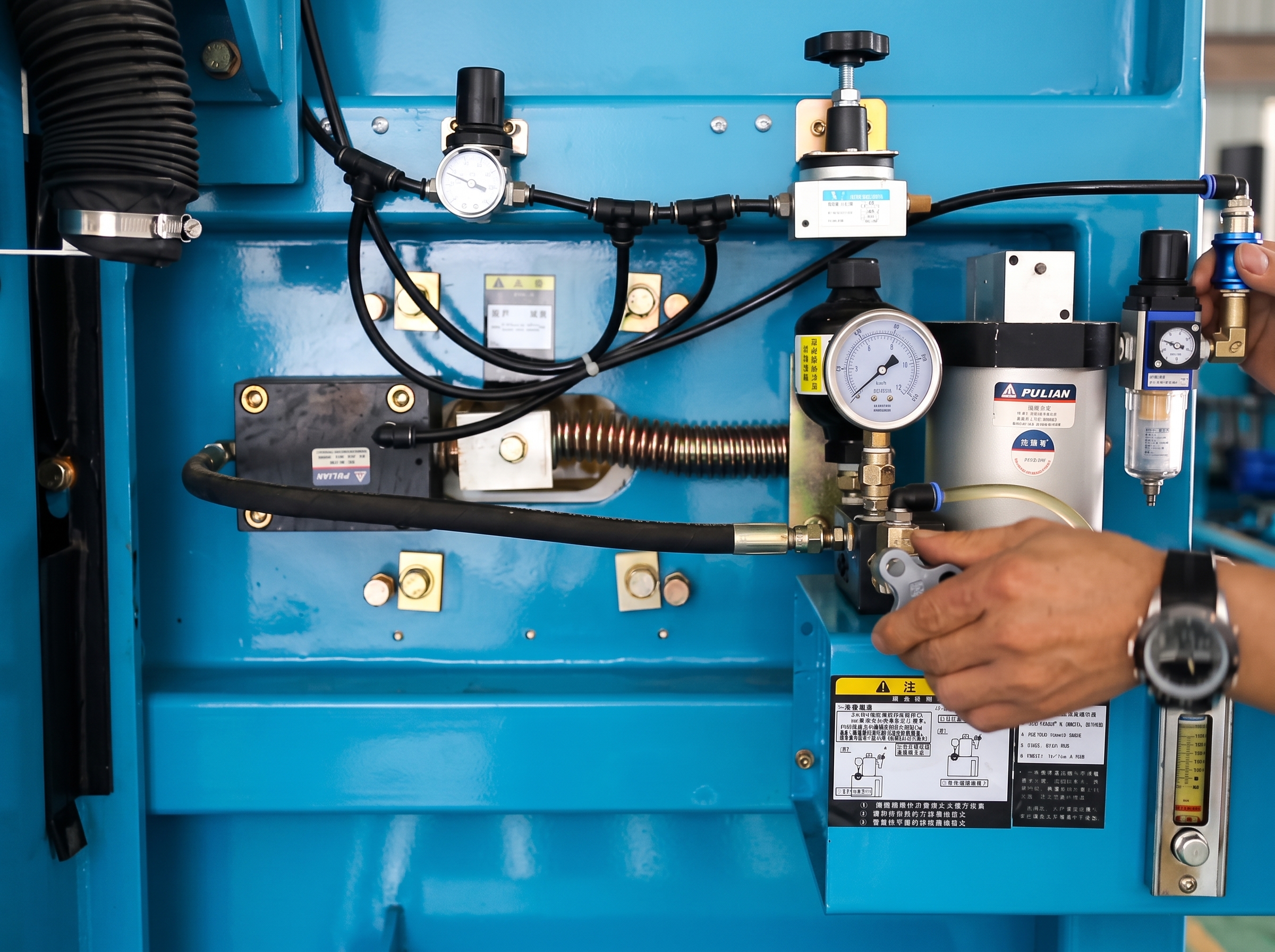

| Hydraulic pressure | kg/cm² | 55 |
| Dust extraction | mm | Ø102 × 2 |
| Saw blade size (L × W × T) | mm | 5182 × 50 × 0.9 |
| Saw kerf | mm | 1.2–2.2 |
| Overall dimensions (L × W × H) | mm | 3000 × 1950 × 2200 |
| Net weight | kg | 1730 |
