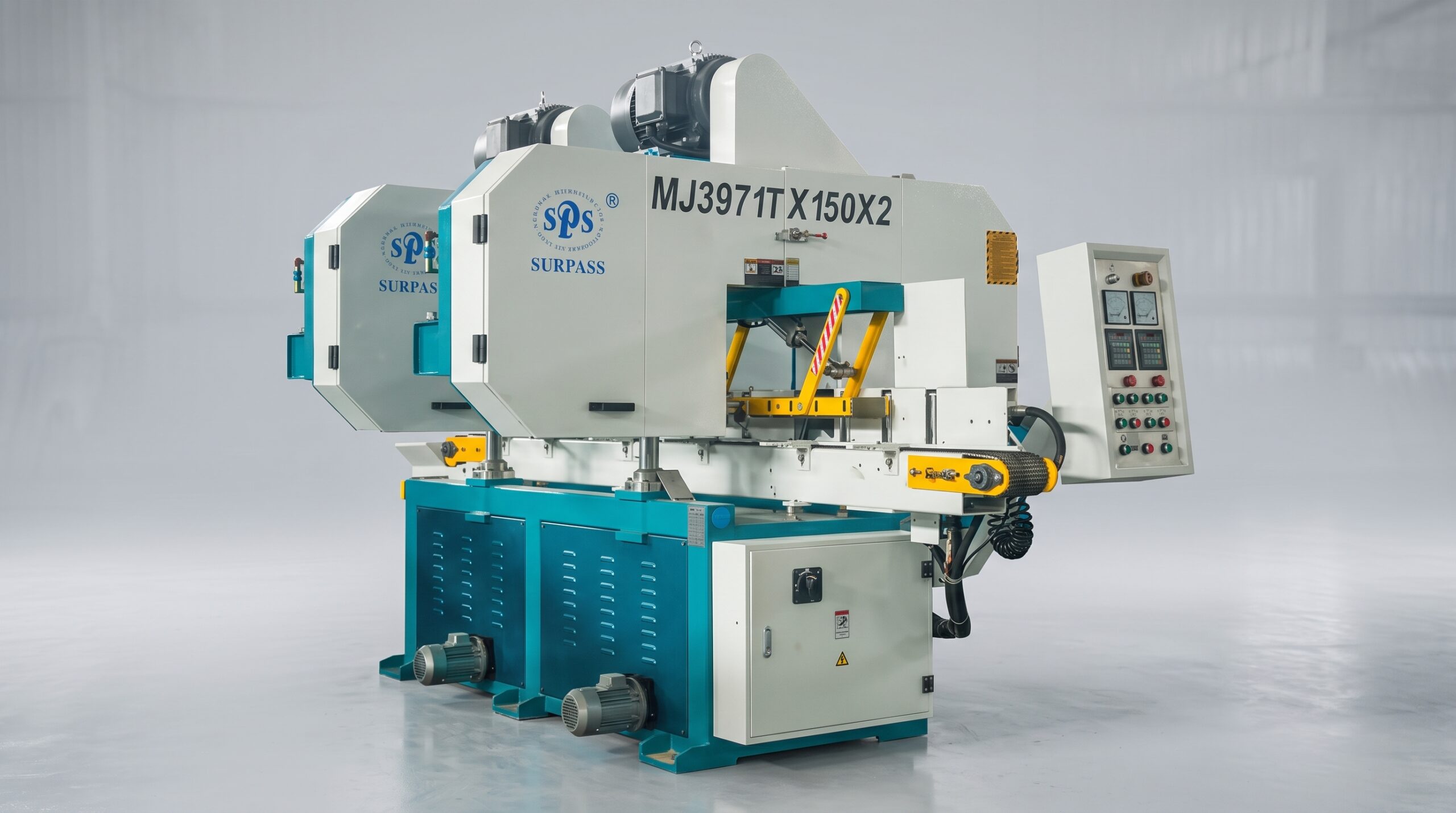

MJ3971T×150X2 Double-Head Horizontal Band Saw

Highlights

The MJ3971T×150X2 Double-Head Horizontal Band Saw is designed for high-efficiency resawing of short solid wood components, including pine, fir, oak, poplar and rosewood. Its dual-head configuration allows two cutting operations within one continuous feeding process, while the front and rear multi-roller pressure system is specifically designed to stabilize short workpieces down to approximately 150 mm length. Twin 15 kW saw motors, hydraulic variable-speed feeding and digital thickness setting provide efficient, repeatable cutting with a narrow kerf and smooth board surface. The manufacturer positions the machine around reduced labor requirements, improved material recovery and safer operation compared with traditional manual vertical resawing.

• Maximum working size: 150 × 60 mm
• Saw heads: 2
• Saw wheel motors: 15 kW × 2
• Saw wheel diameter: Ø711 mm
• Hydraulic feed speed: 0–13 m/min
• Saw kerf: 1.2–2.2 mm
• Net weight: 2482 kg

Video

Features

• Twin-head continuous resawing allows two cutting operations in one feeding cycle for improved productivity.
• Front and rear continuous pressure rollers are designed for short workpieces down to approximately 150 mm, helping stabilize timber during cutting.
• 0–13 m/min hydraulic feeding provides adjustable feed speed for different wood species and cutting conditions.
• Digital thickness setting with intelligent reducer positioning provides fast and repeatable board-thickness adjustment.
• Narrow 1.2–2.2 mm kerf and smooth cutting surfaces help reduce wood loss and may reduce downstream planing requirements.
