Highlights

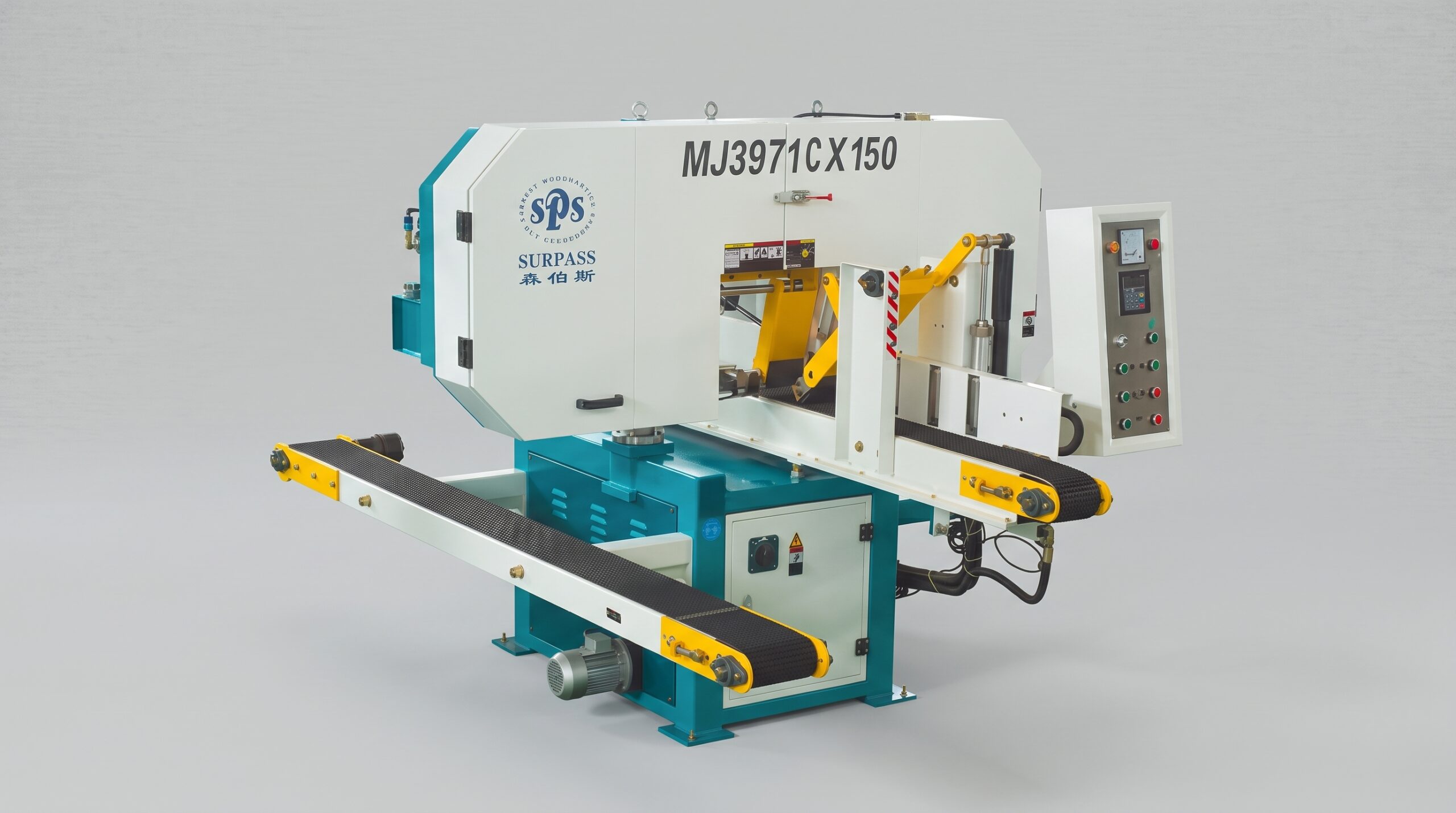

The MJ3971CX150 Horizontal Band Saw is specifically designed for resawing rubberwood into thin boards before edge-gluing and panel production. The machine combines a 15 kW main saw motor, Ø711 mm saw wheels and hydraulic variable-speed feeding up to 18 m/min for efficient continuous cutting. Its narrow kerf and smooth cutting surface help improve material recovery, while intelligent thickness positioning and digital thickness setting provide quick and repeatable adjustment. Surpass states that, compared with traditional vertical band sawing, the system can reduce cutting allowance and may eliminate a subsequent thickness-planing process in suitable applications.
- Maximum working size: 150 × 300 mm
- Blade-to-worktable distance: 3–200 mm
- Main saw motor: 15 kW
- Saw wheel diameter: Ø711 mm
- Feed speed: 0–18 m/min
- Saw kerf: 1.2–2.2 mm
- Conveyor belt width: 135 mm
Video
Features
- Specifically designed for rubberwood thin-board resawing before panel gluing.
- Hydraulic feeding provides adjustable speeds up to 18 m/min for efficient continuous cutting.
- Narrow kerf and smooth cutting surfaces help reduce material loss and downstream machining.
- Digital thickness setting allows operators to enter the required board thickness directly for fast adjustment.
- Fully welded frame, reinforced worktable and ABBA precision lifting screw improve rigidity and positioning stability.
Technical data
| Specifications | Unit | MJ3971CX150 |
|---|---|---|
| Maximum working size | mm | 150 × 300 |
| Blade-to-worktable distance | mm | 3–200 |
| Conveyor belt width | mm | 135 |
| Saw wheel diameter | mm | Ø711 |
| Feed speed | m/min | 0–18 |
| Saw wheel elevation motor | kW | 0.18 |
| Main saw motor | kW | 15 |
| Hydraulic pressure | kg/cm² | 55 |
| Dust extraction | mm | Ø102 × 2 |
| Saw blade size option 1 | mm | 4572 × 27 × 0.9 |
| Saw blade size option 2 | mm | 4572 × 41 × 1.27 |
| Saw kerf | mm | 1.2–2.2 |
| Overall dimensions | mm | 3000 × 1950 × 1850 |
| Net weight | kg | 1500 |
