Highlights

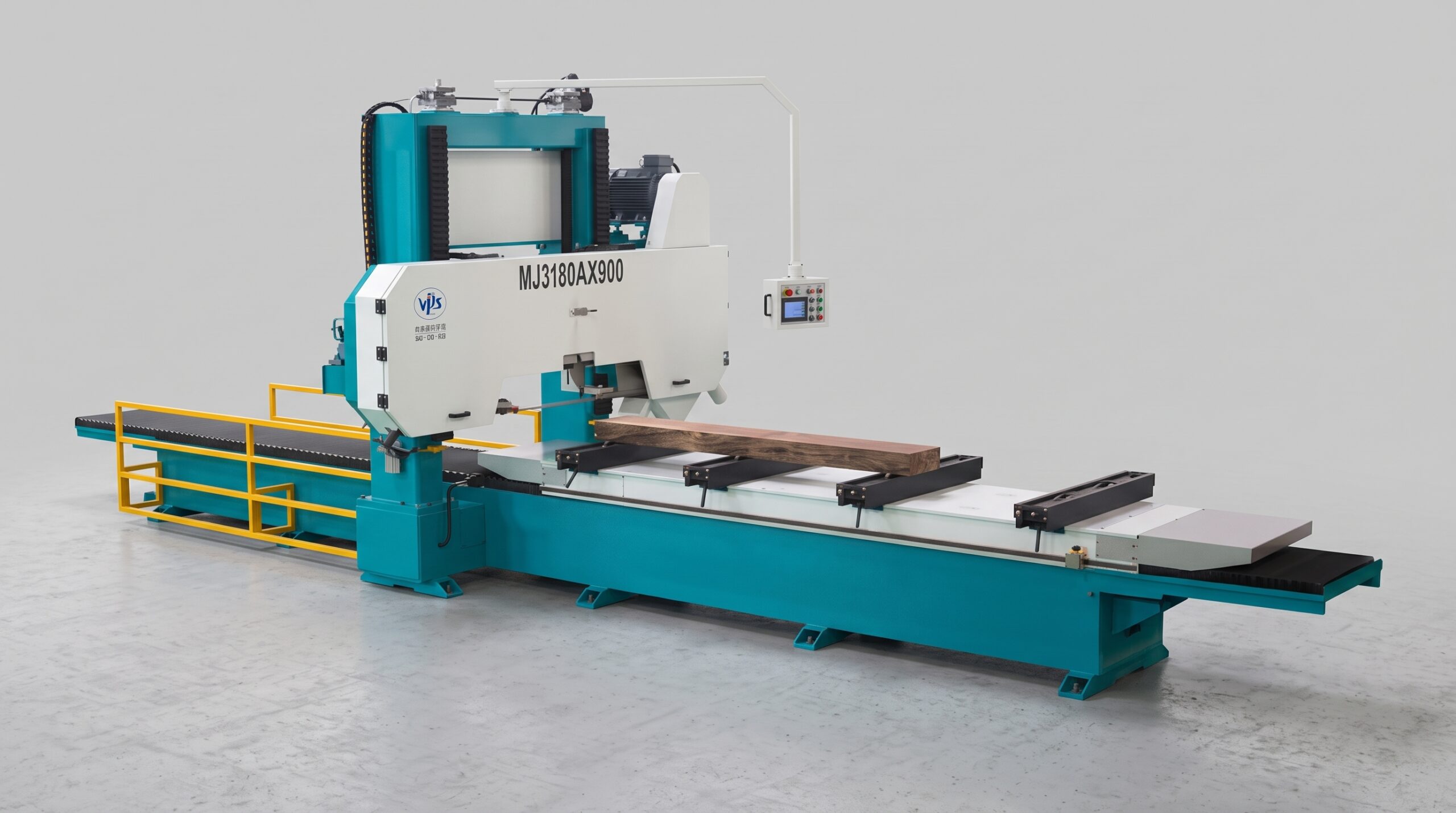

The MJ3180AX900 Heavy-Duty Gantry Band Saw is designed for resawing large square timber, logs and high-value solid wood into boards and slabs. Compared with the MJ3180AX650, this larger model increases maximum timber capacity to 4000 × 900 × 900 mm while retaining an Ø800 mm saw wheel, 22 kW main motor and 31 m/s blade speed. The machine uses servo-controlled saw-head elevation, chain-driven variable-speed table feeding and a water-free dry-cutting system designed to work with dust extraction instead of water or spray cooling.
- Maximum working size: 4000 × 900 × 900 mm
- Saw wheel diameter: Ø800 mm
- Main saw motor: 22 kW
- Saw blade speed: 31 m/s
- Worktable feeding speed: 0.3–25 m/min
- Saw kerf: 1.4–2.0 mm
- Net weight: 5800 kg
Images
Video
Features
- Water-free dry cutting eliminates spray cooling and allows sawdust to be collected through a dust extraction system.
- High-torque Delta servo elevation system provides programmable cutting thickness positioning; the manufacturer specifies positioning accuracy up to 0.01 mm.
- Heavy welded frame uses reinforced square tubing, thick structural plates and heat treatment to improve rigidity during large-timber cutting.
- Heavy-duty guideway and ball-screw lifting system supports stable, precise vertical movement of the saw unit.
- Touchscreen control provides 16 thickness presets, 4 height memories, 8 height presets, length setting and fault diagnostics.
Technical data
| Specifications | Unit | MJ3180AX900 |
|---|---|---|
| Maximum working size (L × W × H) | mm | 4000 × 900 × 900 |
| Worktable size (L × W) | mm | 3500 × 700 |
| Timber clamps | pcs | 4 |
| Worktable feeding speed | m/min | 0.3–25 |
| Worktable feeding motor | kW | 1.5 |
| Saw wheel diameter | mm | Ø800 |
| Saw blade speed | m/s | 31 |
| Saw blade size (L × W × T) | mm | 6400 × 60 × 1.1 |
| Saw kerf | mm | 1.4–2.0 |
| Main saw motor | kW | 22 |
| Saw-head elevation motor | kW | 1 |
| Blade-to-worktable distance | mm | 20–850 |
| Blade tension pressure | kg/cm² | 70 |
| Saw-head elevation speed | m/min | 2 |
| Effective cutting speed* | m/min | 2–5 |
| Worktable return speed* | m/min | 35 |
| Overall dimensions (L × W × H) | mm | 9000 × 2660 × 3000 |
| Net weight | kg | 5800 |
*The manufacturer lists 2–5 m/min effective cutting speed using approximately 400 mm-wide rosewood as its reference and 35 m/min worktable return speed for the upgraded configuration.
