Highlights

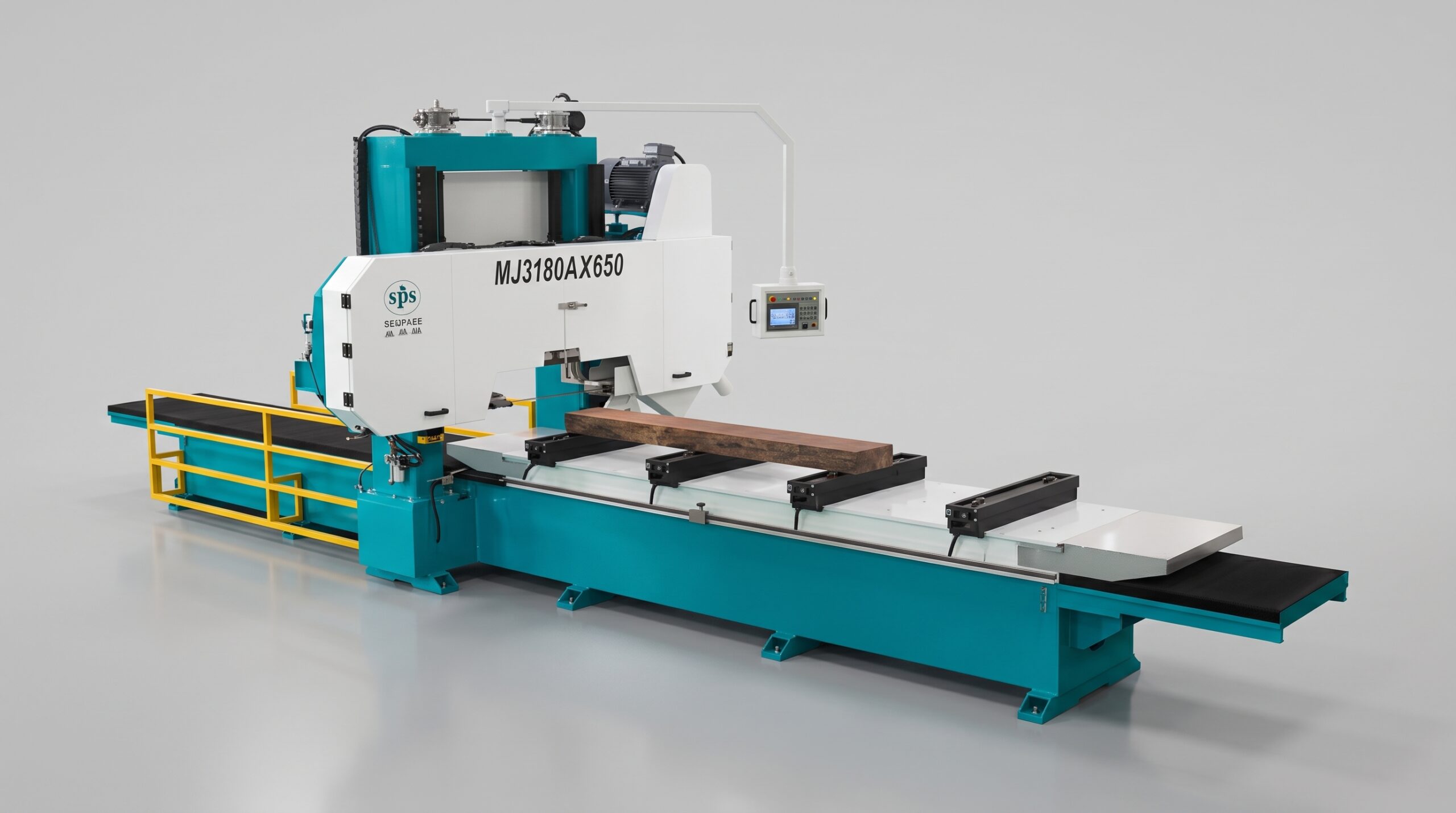

The MJ3180AX650 Heavy-Duty Gantry Band Saw is designed for precision resawing of square timber, logs and high-value solid wood into boards and slabs. It provides a maximum working capacity of 4000 × 650 × 650 mm and uses an Ø800 mm saw wheel with a 22 kW main motor and 31 m/s blade speed. The upgraded machine combines a heavy welded frame, servo-controlled saw-head positioning, chain-driven worktable feeding and a water-free dry-cutting system, allowing dust extraction to replace conventional water-assisted sawing. The manufacturer states that the servo lifting system can achieve positioning accuracy up to 0.01 mm.
- Maximum working size: 4000 × 650 × 650 mm
- Saw wheel diameter: 800 mm
- Main saw motor: 22 kW
- Saw blade speed: 31 m/s
- Worktable feed speed: 0.3–25 m/min
- Saw kerf: 1.4–2.0 mm
- Net weight: 5200 kg
Video
Features
- Dry cutting without water or spray cooling simplifies dust and sawdust collection and avoids wastewater generated by conventional wet sawing.
- Delta servo-controlled saw-head elevation provides precise thickness positioning; the manufacturer specifies positioning accuracy up to 0.01 mm.
- Heavy-duty welded frame uses reinforced structural steel, thick worktable construction and heat treatment to improve rigidity during large timber cutting.
- Rexroth heavy-duty linear guides and precision ball-screw lifting support stable saw-head movement and accurate height adjustment.
- Touchscreen control provides thickness presets, height memory, preset cutting positions, length control and machine fault diagnostics.
Technical data
| Specifications | Unit | MJ3180AX650 |
|---|---|---|
| Maximum working size (L × W × H) | mm | 4000 × 650 × 650 |
| Worktable size (L × W) | mm | 3500 × 700 |
| Timber clamps | pcs | 4 |
| Worktable feed speed | m/min | 0.3–25 |
| Worktable feed motor | kW | 1.5 |
| Saw wheel diameter | mm | 800 |
| Saw blade speed | m/s | 31 |
| Saw blade size (L × W × T) | mm | 6280 × 60 × 1.1 |
| Saw kerf | mm | 1.4–2.0 |
| Saw wheel motor | kW | 22 |
| Saw wheel elevation motor | kW | 1 |
| Blade-to-table distance | mm | 20–650 |
| Blade tension pressure | kg/cm² | 70 |
| Saw-head elevation speed | m/min | 2 |
| Effective cutting speed* | m/min | 2–5 |
| Worktable return speed* | m/min | 35 |
| Overall dimensions (L × W × H) | mm | 9000 × 2660 × 2800 |
| Net weight | kg | 5200 |
*The manufacturer lists 2–5 m/min effective cutting speed based on approximately 400 mm-wide rosewood and 35 m/min return speed for the upgraded version.
