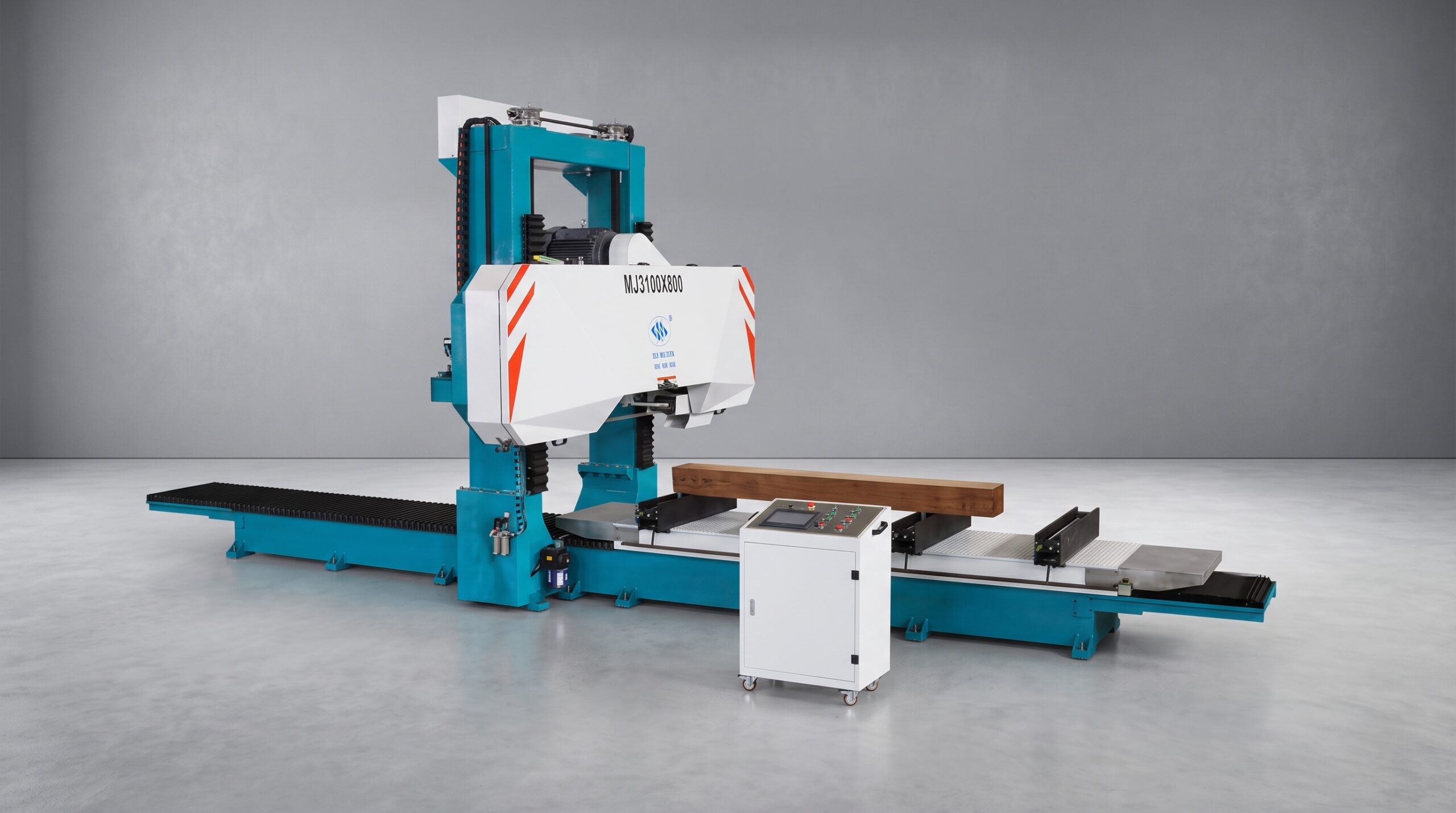

MJ31100BX900 High-Speed Heavy-Duty Gantry Band Saw

Highlights

The MJ31100BX900 High-Speed Heavy-Duty Gantry Band Saw is designed for high-efficiency resawing of large square timber, logs and high-value hardwood. It combines Ø1000 mm high-speed saw wheels, an 80 mm wide band saw blade and a 30 kW main motor for demanding solid wood production. A Delta servo-controlled saw-head elevation system, ABBA precision ball screw and Rexroth heavy-duty linear guides provide accurate thickness positioning, while the upgraded table system reaches 5–8 m/min effective cutting speed and up to 35 m/min return speed. The machine is particularly suited to large and valuable timber where cutting accuracy, material recovery and productivity are priorities.

• Maximum working size: 4000 × 900 × 900 mm
• Saw wheel diameter: Ø1000 mm
• Main saw motor: 30 kW
• Saw blade speed: 31 m/s
• Effective cutting speed: 5–8 m/min
• Worktable return speed: Up to 35 m/min
• Net weight: 6500 kg

Images

Video

Features

• Ø1000 mm heavy-duty saw wheels and an 80 mm wide blade provide increased stability for high-speed cutting of large timber.
• Delta servo elevation with 0.01 mm manufacturer-stated positioning accuracy supports precise thickness adjustment.
• Ø32 mm ABBA precision ball screw and Rexroth 45-series heavy-duty linear guides provide stable saw-head movement.
• Touchscreen control includes 16 thickness presets, 4 height memories, 8 height presets, length setting and fault diagnostics.
• Fully automatic blade tensioning maintains pressure automatically as blade temperature changes during production.
