Highlights

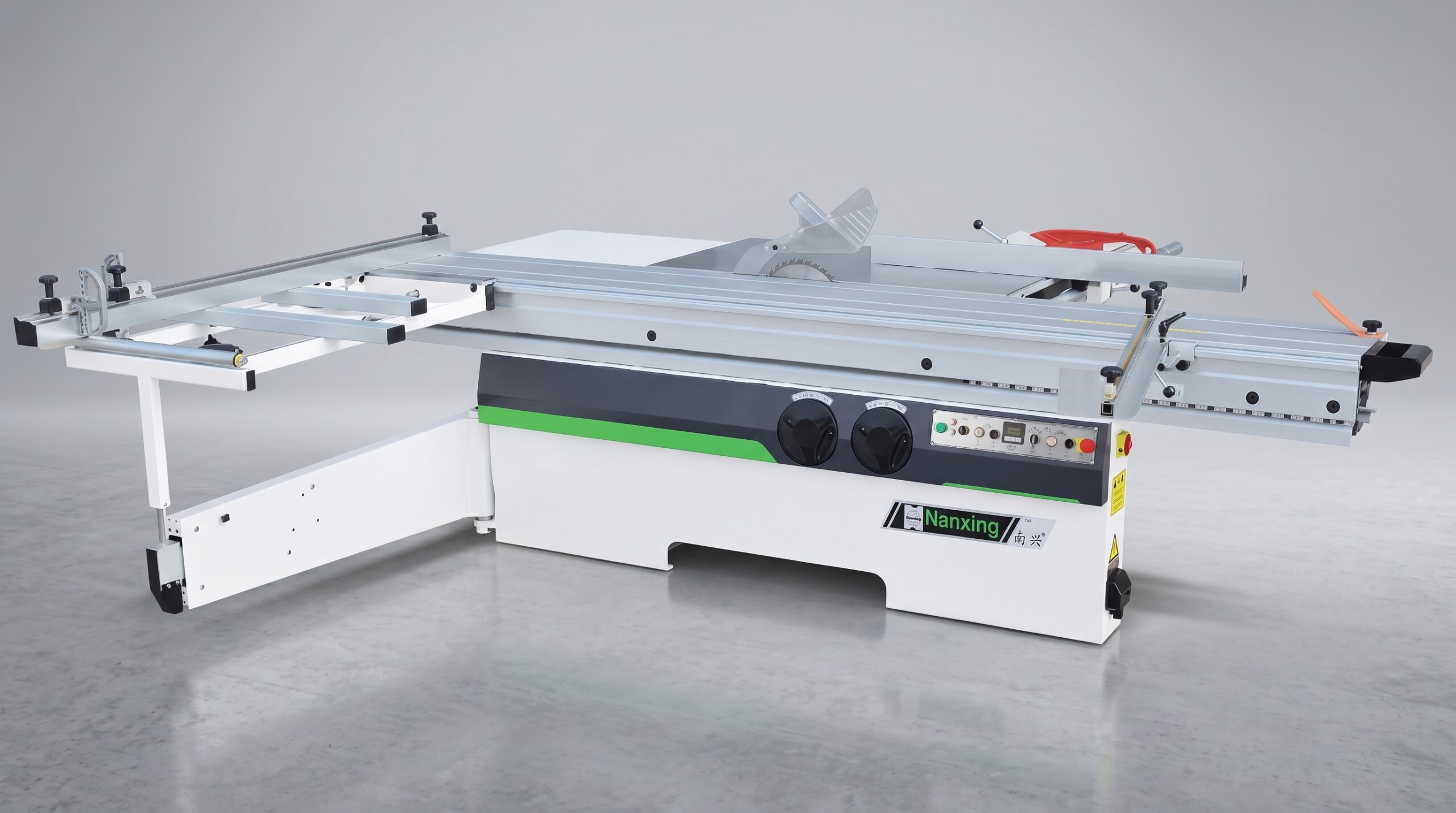

The MJ1132M Sliding Table Saw is a cost-effective precision panel saw designed for furniture and general panel-processing applications. It combines a 3100 mm cutting length, 100 mm cutting thickness at 0°, a 5.5 kW main saw motor and a smooth sliding table with a rigid guide system. Both the main saw and scoring saw can tilt from 0–45°, while saw blade height and tilt are adjusted manually by handwheel for simple and reliable operation. Nanxing also offers the longer MJ1138M version with a 3700 mm cutting length.
- Maximum cutting length: 3100 mm
- Cutting thickness at 0°: 100 mm
- Cutting thickness at 45°: 70 mm
- Main saw motor: 5.5 kW
- Main saw speed: 3800 / 5200 rpm
- Scoring saw motor: 1.1 kW
- Saw blade tilt: 0–45°
Images
Features
- Strong machine body provides stability and long service life.
- Smooth-running sliding table and rigid guide structure support accurate panel cutting.
- Saw blade height can be adjusted manually by handwheel.
- Main saw and scoring saw tilt from 0–45° by handwheel.
- Optional MJ1138M extends cutting length from 3100 mm to 3700 mm.
Technical data
| Specifications | Unit | MJ1132M | MJ1138M |
|---|---|---|---|
| Cutting length | mm | 3100 | 3700 |
| Cutting thickness at 0° | mm | 100 | 100 |
| Cutting thickness at 45° | mm | 70 | 70 |
| Main saw speed | rpm | 3800 / 5200 | 3800 / 5200 |
| Main saw motor | kW | 5.5 | 5.5 |
| Scoring saw speed | rpm | 9000 | 9000 |
| Scoring saw motor | kW | 1.1 | 1.1 |
| Saw blade angle | ° | 0–45 | 0–45 |
| Dust extraction | mm | Ø120 | Ø120 |
| Total power | kW | 6.6 | 6.6 |
| Overall dimensions | mm | 3400 × 3380 × 1400 | 3400 × 3380 × 1400 |
| Net weight | kg | 785 | 830 |
