Highlights

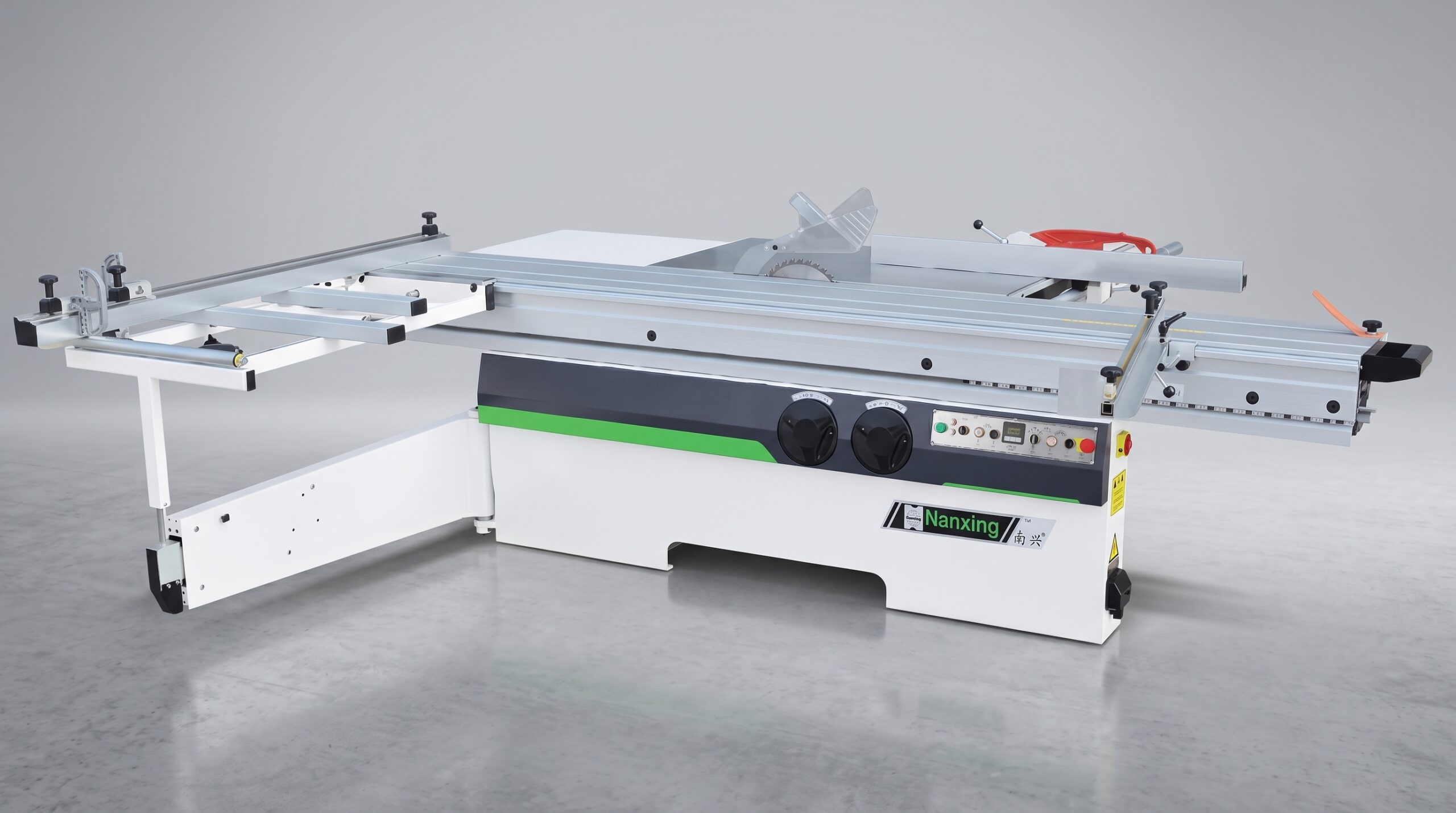

The MJ1132G Sliding Table Saw is designed for accurate straight panel cutting in furniture and woodworking production. It provides a 3100 mm cutting length and 100 mm cutting thickness, combined with a 5.5 kW main saw motor and a precision sliding table. Nanxing uses a rigid machine body with CNC-machined mechanical components to improve long-term stability, while the main saw blade height can be adjusted electrically by push button for easier daily operation. Unlike the MJ1132F and MJ1132M versions, the MJ1132G is configured for fixed 0° cutting.
- Cutting length: 3100 mm
- Cutting thickness at 0°: 100 mm
- Main saw motor: 5.5 kW
- Main saw speed: 3800 / 5200 rpm
- Scoring saw motor: 1.1 kW
- Scoring saw speed: 9000 rpm
- Saw blade angle: 0°
Images
Features
- Strong machine body with CNC-machined mechanical components improves structural stability.
- Smooth sliding table supports accurate and easy panel feeding.
- Precision guiding system helps maintain consistent cutting alignment.
- Main saw blade height is electrically adjustable by push button.
- Extended and reinforced table surfaces provide improved panel support.
Technical data
| Specifications | Unit | MJ1132G |
|---|---|---|
| Cutting length | mm | 3100 |
| Cutting thickness at 0° | mm | 100 |
| Cutting thickness at 45° | mm | — |
| Main saw speed | rpm | 3800 / 5200 |
| Main saw motor | kW | 5.5 |
| Scoring saw speed | rpm | 9000 |
| Scoring saw motor | kW | 1.1 |
| Saw blade angle | ° | 0 |
| Dust extraction | mm | Ø120 |
| Total power | kW | 6.6 |
| Overall dimensions | mm | 3300 × 3330 × 1050 |
| Net weight | kg | 750 |
